IOC4T 200-560-000-113 Input/Output Card

IOC4T 200-560-000-113 Input/Output Card

The IOC4T input /output card acts as a signal interface for the MPC4 machinery protection card, It is installed in the rear of a rack and connects directly to the rack backplane via two connectors.

  • Brand :

    VM
  • Part number :

    IOC4T 200-560-000-113
  • Description :

    Input/Output Card
  • Origin :

    Germany
  • Condition :

    New
  • Dimension :

    262 mm × 20 mm × 125 mm
  • Weight :

    0.25 kg
  • Payment :

    Bank Transfer
Contact Us:

IOC4T 200-560-000-113



The IOC4T input /output card acts as a signal interface for the MPC4 machinery protection card, It is installed in the rear of a rack and connects directly to the rack backplane via two connectors.



Each IOC4T card is associated with a corresponding MPC4 card and is mounted directly behind it in the system rack (ABE04x orABE056). The IOC4T operates in slave mode and communicates with the MPC4, through connector P2, using an Industry Pack (IP) interface.



The front panel of the IOC4T (rear of the rack) contains terminal strip connectors for wiring
to the transmission cables coming from measurement chains (sensors and /or signal conditioners). The screw-terminal connectors are also used to input all signals from and output all signals to any external control system.



The IOC4T card protects all inputs and outputs against electromagnetic interference (EMI) and signal surges and also meets electromagnetic compatibility (EMC) standards.



The IOC4T connects the raw dynamic (vibration) and speed signals from the sensors to the MPC4.


These signals, once processed, are passed back to the IOC4T and made available on the terminal strip on its front panel. For the dynamic signals, four on-board digital-to-analog converters (DACs) provide calibrated signal outputs in the range 0 to 10 V. In addition, four onboard voltage-to-current converters allow the signals to be provided as current outputs in the range 4 to 20 mA (jumper selectable).



The IOC4T contains four local relays that can be attributed to any specific alarm signals under software control. For example, these may be used to signal an MPC4 fault or a problem detected by a common alarm (Sensor OK, Alarm and Danger) in a typical application.



KEY FEATURES AND BENEFITS





• Signal interface card with 4 dynamic signal inputs and 2 tachometer (speed) inputs, for the MPC4 machinery protection card



• Screw-terminal connectors (48 terminals) for all input/output connections



• Contains 4 relays which can be attributed to alarm signals, under software control



• 32 fully-programmable open-collector outputs (jumper selectable) to IRC4 and RLC16 relay cards



• Buffered “raw” sensor signals and analog output signals (voltage or current) for vibration channels



• EMI protection for all inputs and outputs



• Live insertion and removal of cards (hot-swappable)



• Available in “standard” and “separate circuits”versions





200-560-000-113



AC31 and previous series (e.g. Sigmatronic, Procontic)  are obsolete and were replaced by the AC500 PLC platform.

KEY FEATURES AND BENEFITS

• From  • Signal interface card with 4 dynamic signal inputs and 2 tachometer (speed) inputs, for the MPC4 machinery protection card


• Screw-terminal connectors (48 terminals) for all input/output connections


• Contains 4 relays which can be attributed to alarm signals, under software control


• 32 fully-programmable open-collector outputs (jumper selectable) to IRC4 and RLC16 relay cards


• Buffered “raw” sensor signals and analog output signals (voltage or current) for vibration channels


• EMI protection for all inputs and outputs • Live insertion and removal of cards (hot-swappable)


• Available in “standard” and “separate circuits” versions

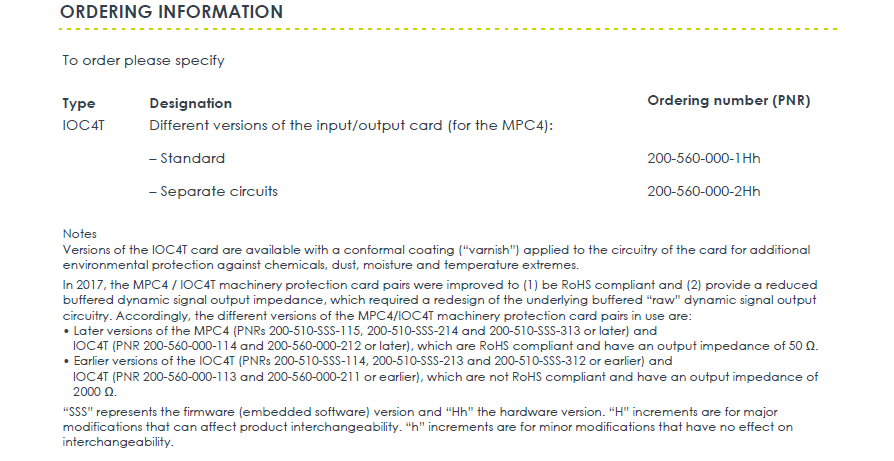

ORDERING INFORMATION



Type Designation Ordering number (PNR)

IOC4T





Different versions of the input/output card (for the MPC4):

– Standard

– Separate circuits



200-560-000-1Hh

200-560-000-2Hh



Notes



Versions of the IOC4T card are available with a conformal coating (“varnish”) applied to the circuitry of the card for additional environmental protection against chemicals, dust, moisture and temperature extremes.



In 2017, the MPC4 / IOC4T machinery protection card pairs were improved to (1) be RoHS compliant and (2) provide a reduced buffered dynamic signal output impedance, which required a redesign of the underlying buffered “raw” dynamic signal output circuitry. Accordingly, the different versions of the MPC4/IOC4T

machinery protection card pairs in use are:



• Later versions of the MPC4 (PNRs 200-510-SSS-115, 200-510-SSS-214 and 200-510-SSS-313 or later) and IOC4T (PNR 200-560-000-114 and 200-560-000-212 or later), which are RoHS compliant and have an output impedance of 50 Ω.



• Earlier versions of the IOC4T (PNRs 200-510-SSS-114, 200-510-SSS-213 and 200-510-SSS-312 or earlier) and IOC4T (PNR 200-560-000-113 and 200-560-000-211 or earlier), which are not RoHS compliant and have an output impedance of 2000 Ω.



"SSS" represents the firmware (embedded software) version and "Hh"the hardware version. "H”increments are for major modifications that can affect product interchangeability.“h”increments are for minor modifications that have no effect on interchangeability.
