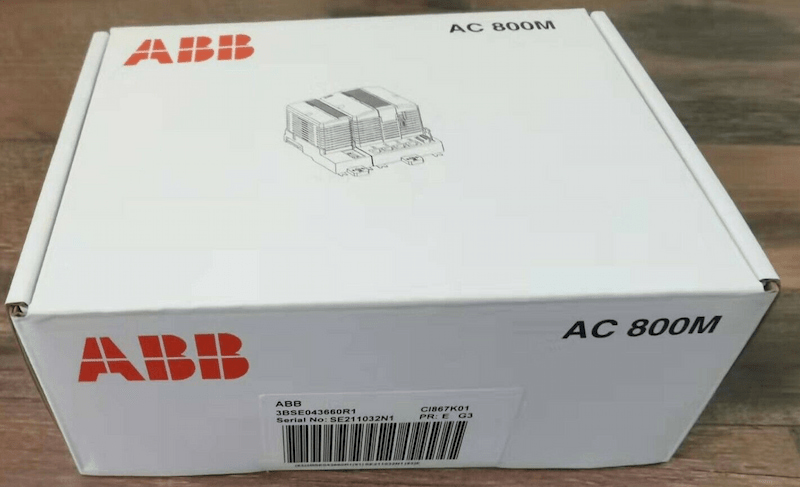

ABB CI867K01 3BSE043660R1 Communication Interface Module

ABB CI867K01 3BSE043660R1 Communication Interface Module

The CI867/TP867 is used for connection between an AC 800M controller and external Ethernet devices using Modbus TCP protocol.contact us and we will get back to you within 24 hours.US$2,500.00
  • Brand :

    ABB
  • Part number :

    CI867K01
  • Description :

    Communication Interface Module
  • Origin :

    Sweden
  • Condition :

    New
  • Dimension :

    127.5 mm * 186 mm * 59 mm
  • Weight :

    0.7 kg
  • Payment :

    Bank Transfer
Contact Us:

CI867

System 800xA hardware selector



MODBUS TCP is an open industry standard widely spread due to its ease of use. It is a request response protocol and offers services specified by function codes.


MODBUS TCP combines the MODBUS RTU with standard Ethernet and universal networking standard TCP. It is an application-layer messaging protocol, positioned at level 7 of the OSI model.



The CI867/TP867 is used for connection between an AC 800M controller and external Ethernet devices using Modbus TCP protocol.



The CI867 expansion unit contains the CEX-Bus logic, acommunication unit and a DC/DC converter that supplies appropriate voltages from the +24 V supply via the CEX-Bus. TheEthernet cable must be connected to the main network through anEthernet switch.


Features and benefits


The CI867 can be set redundant and supports hot swap.


CI867 is a dual channel Ethernet unit;


Ch1 supports full duplex with 100Mbps speed and Ch2 supports half duplex with 10Mbps speed,Both master and slave functionality are supported.


A maximum of 70 slave and 8 master units per CI867 (on Ch1 and Ch2 together)can be used.




General info

Article number

3BSE043660R1

Protocol

MODBUS TCP

Master or slave

Master / Slave

Number of channels

2 channels

Transmission speed

10/100 Mbit/s (Ch1), 10 Mbit/s (Ch2)

Line redundancy

No

Module redundancy

Yes

Hot Swap

Yes

Used together with HI Controller

Yes



Environment and certification

Temperature, Operating

55 °C

Protection class

IP20 according to EN60529, IEC 529

CE-marking

Yes

Hazardous location

UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X

Marine certificates

ABS, BV, DNV-GL, LR

RoHS compliance

DIRECTIVE/2011/65/EU (EN 50581:2012)

WEEE compliance

DIRECTIVE/2012/19/EU



Dimensions

Width

59 mm (2.3 in.)

Height

186 mm (7.3 in.)

Depth

127.5 mm (5.0 in.)

Weight (including base)

700 g (1.5 lbs)











































3BSE043660R1





100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
