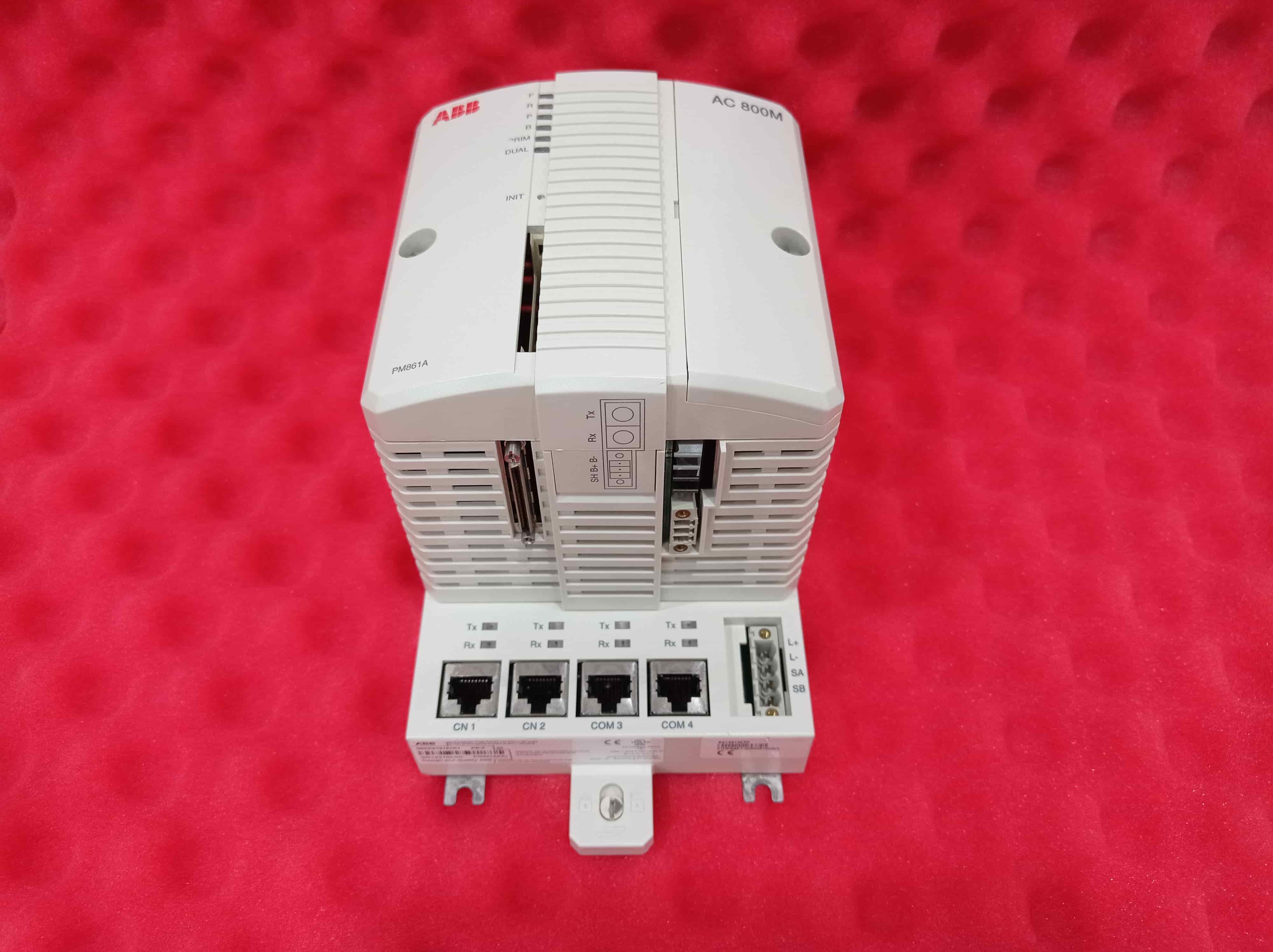

ABB PM864AK01 3BSE018161R1 Processor Unit

ABB PM864AK01 3BSE018161R1 Processor Unit

The base plate of the PM864A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). US$7,400.00

  • Brand :

    ABB
  • Part number :

    PM864AK01
  • Description :

    Processor Unit
  • Origin :

    Sweden
  • Condition :

    New
  • Dimension :

    119 mm * 186 mm * 135 mm
  • Weight :

    1.2 kg
  • Payment :

    Bank Transfer
Contact Us:

PM864AK01 3BSE018161R1



Medium Description:

PM864AK01 Processor Unit



Technical Information:

PM864AK01 Processor Unit Kit



Exchange No. EXC3BSE018161R1Package including:



-PM864A, CPU



-TP830, Baseplate, width =115mm



-TB850, CEX-bus terminator



-TB807, ModuleBus terminator



-TB852, RCU-Link terminator



-Battery for memory backup 4943013-6



-4 pos Power Plug 3BSC840088R4



The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.



The base plate of the PM864A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).



Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.



Features and benefits:



Reliability and simple fault diagnosis procedures

Modularity, allowing for step-by-step expansion

IP20 Class protection without the requirement for enclosures

The controller can be configured with 800xA control builder

The controller has full EMC certification

Sectioned CEX-Bus using a pair of BC810

Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)

Built-in redundant Ethernet Communication ports



Technical Specifications

Manufacture ABB
Model PM864AK01
Ordering information 3BSE018161R1
Catalog 800xA
Description PM864AK01 Processor Unit
Origin Sweden (SE)
HS Code 85389091
Dimension 119 mm * 186 mm * 135 mm
Weight 1.2 kg



ABB PM864AK01

100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com
