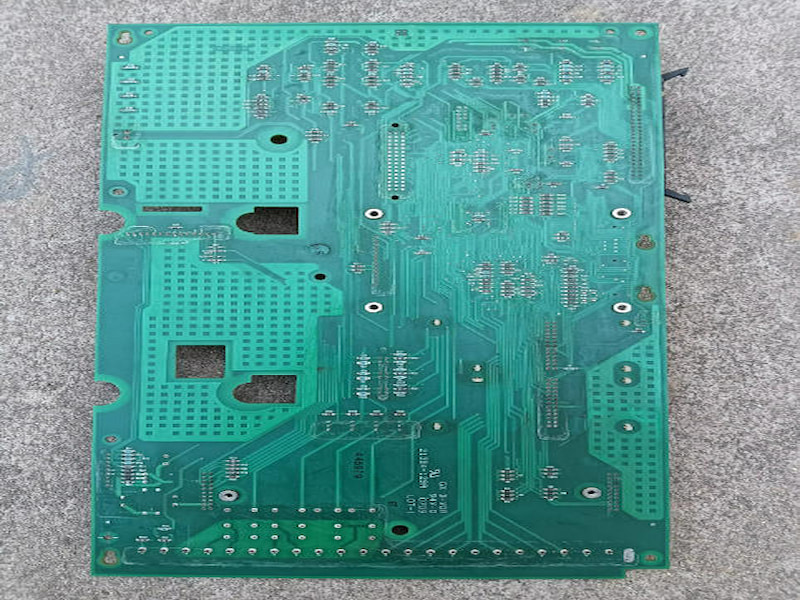

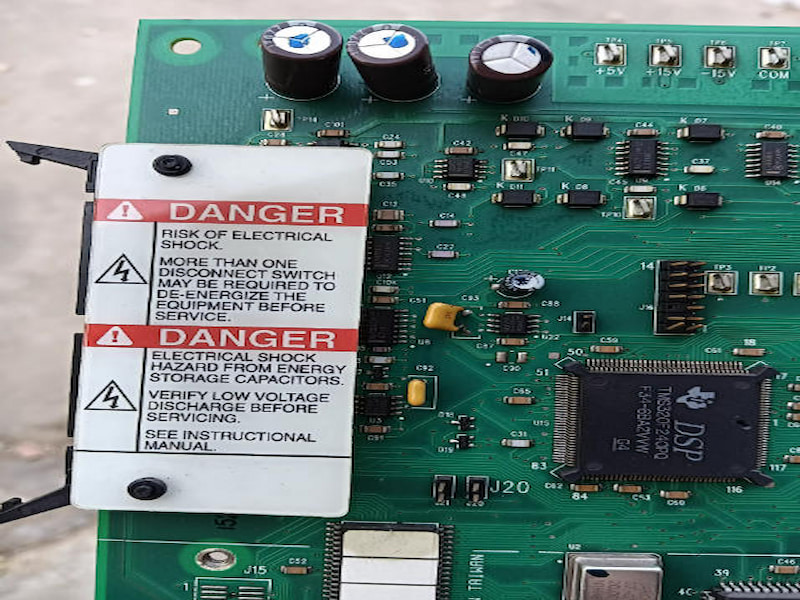

Allen-Bradley 1336F-MCB-SP1F Adjustable Frequency AC Drive

Allen-Bradley 1336F-MCB-SP1F Adjustable Frequency AC Drive

Description

The 1336 is a microprocessor controlled, high performance, adjustable frequency drive designed to control three phase induction motors on critical industrial applications. The drive produces a three phase, PWM, adjustable frequency output to supply an adjustable motor speed. The drive output voltage is a function of output frequency and is adjustable to match motor parameters to obtain optimum motor performance.

To help achieve precise and repeatedly accurate control, setup and operation, the 1336 is digitally programmable. The drive may be programmed from a Local or Remote Control Panel or through the Serial Communication Port using optional devices.

Depending upon your configuration, various status and fault conditions are reported either through the Programming and Display Panel or through the Serial Communications Port. All fault diagnostics start with both load and drive self-check diagnostics each time the drive is powered up. While running, the drive continues to monitor potential fault conditions. To allow real-time preventive maintenance, parameters such as drive output current and control conditions can be monitored even while the drive is running. Should a fault occur, detailed diagnostic codes isolate the problem to identify the condition, allowing quick, corrective action to be taken to restore process control.

Technical Specifications
