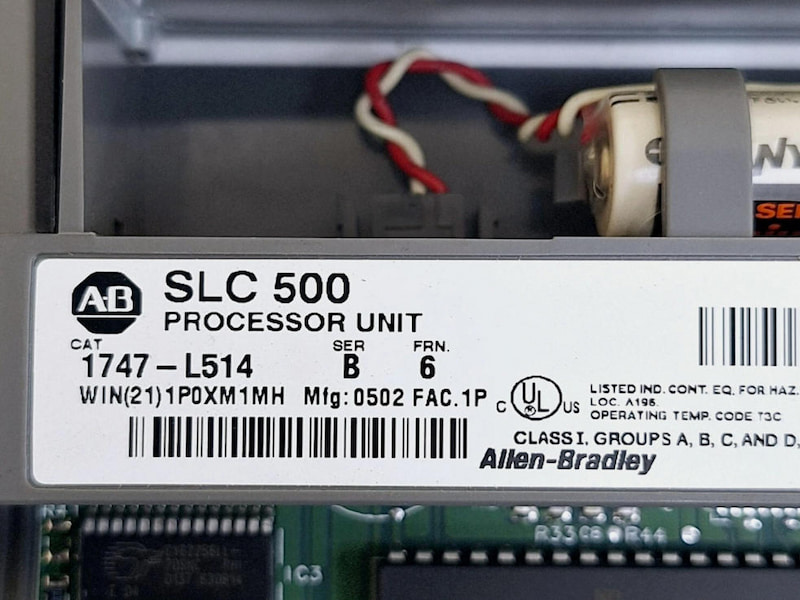

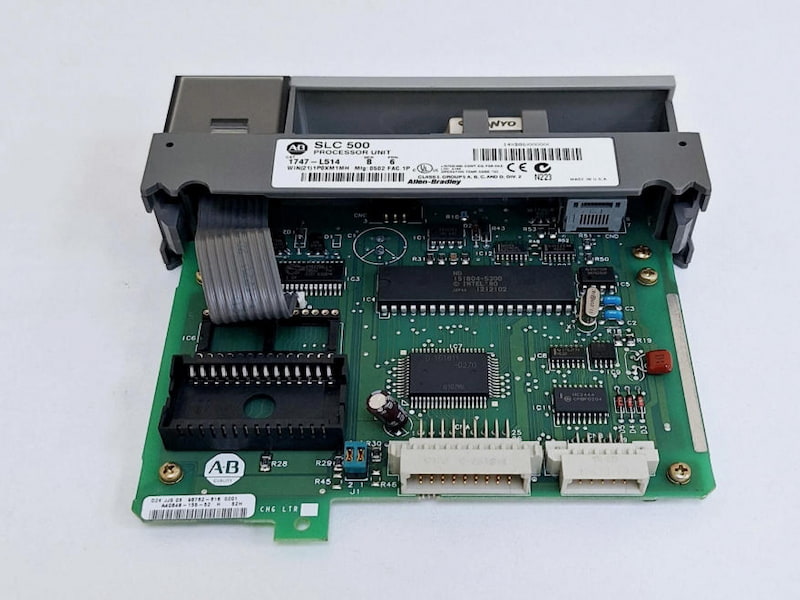

Allen-Bradley 1747-L514 SLC 5/01 Processor

Allen-Bradley 1747-L514 SLC 5/01 Processor

Description

The SLC 500 product line allows you to build just the right control system tomeet your needs. We offer four chassis sizes, four power supplies, sevenprocessors, and a variety of l/O modules. Additionally, we offer flexiblecommunication options and programming and operator interface options.

The SLC 500 family of programmable controllers have expanded to meet abroader range of applications. From high-speed packaging and materialhandling applications to advanced processor control applications,Allen-Bradley offers the right processor for your job.

The SLC 5/03 … and SLC 5/04m processors offer features previously foundonly on high-level PLCs. The SLC 500 processors provide a broad range ofcommunication options, from DH-485, to RS-232, to DH+,m Increasedinstruction support with ASCl, floating point math, and indirect addressingallows you to expand your application's capabilities.

The SLC 5/01 processor offers the instruction set of the SLC 500 fixed controller in a modular hardware configuration. The SLC 5/01 processor provides:

The SLC 5/01 processor offers the instruction set of the SLC 500 fixed controller in a modular hardware configuration. The SLC 5/01 processor provides:

two choices of program memory size-1K or 4K instructions

control of up to 256 local //O

powerful ladder logic programming instruction set

subroutines

a DH-485 communication channel (peer-to-peer communication responseto message commands only)

capacitor backup for the -L51l; battery backup for the -L514

Technical Specifications
