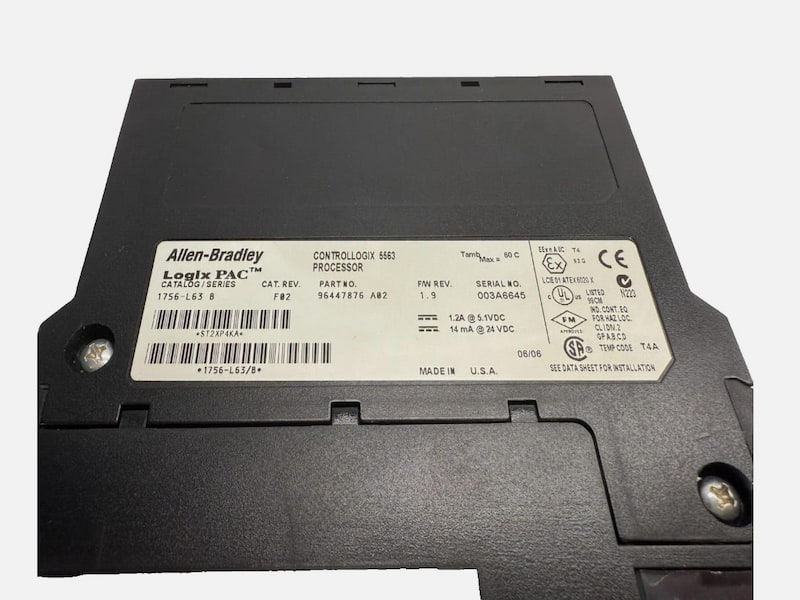

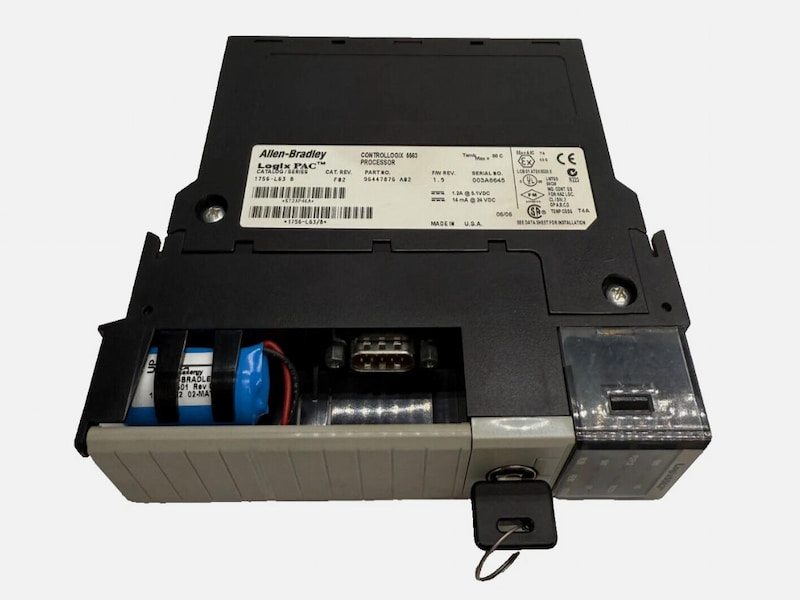

Allen-Bradley 1756-L63 ControlLogix Controllers

Allen-Bradley 1756-L63 ControlLogix Controllers

Description

The ControlLogix® controller provides a scalable controller solution that is capable of addressing a large amount of I/O points. The ControlLogix controller can be placed into any slot of a ControlLogix I/O chassis and multiple controllers can be installed in the same chassis.

ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, as well as over network links. To provide communication for a ControlLogix controller, install the appropriate communication interface module into the chassis.

Feature

Controller tasks

• 32 tasks

• 100 programs/task

• Event tasks: all event triggers

Built-in communication ports：1 port RS-232 serial

Communication options

• EtherNet/IP

• ControlNet

• DeviceNet

• Data Highway Plus

• Remote I/O

• SynchLink

• Third-party process and device networks

Serial port communication

• ASCII

• DF1 full/half-duplex

• DF1 radio modem

• DH-485

• Modbus via logic

Controller connections supported, max：250

Network connections, per network module

• 100 ControlNet (1756-CN2/A)

• 40 ControlNet (1756-CNB/D, 1756-CNB/E)

• 128 ControlNet (1756-CN2/B)

• 256 EtherNet/IP; 128 TCP (1756-EN2x)

• 128 EtherNet/IP; 64 TCP (1756-ENBT)

Controller redundancy:Full support

Full support

• SERCOS interface

• Analog options (encoder input, LDT input, SSI input)

• EtherNet/IP (CIP Motion)

Programming languages

• Relay ladder

• Structured text

• Function block

• SFC

Technical Specifications
