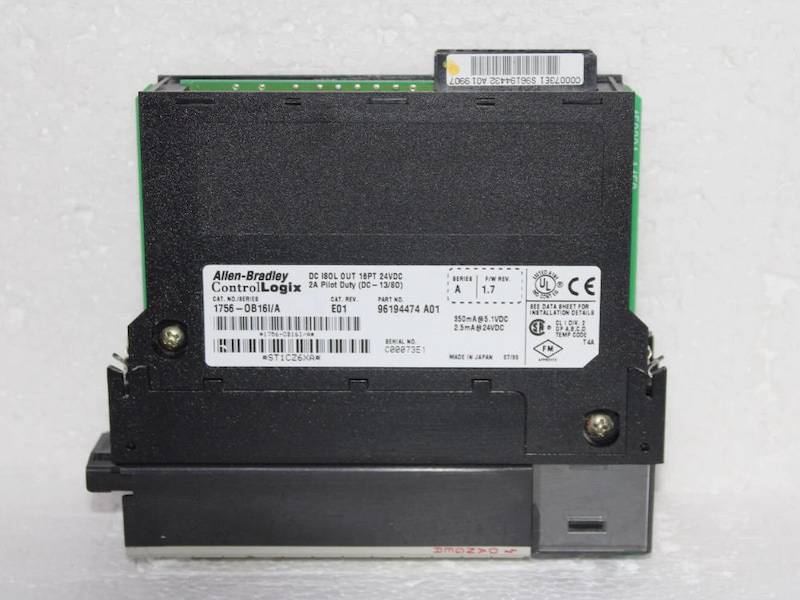

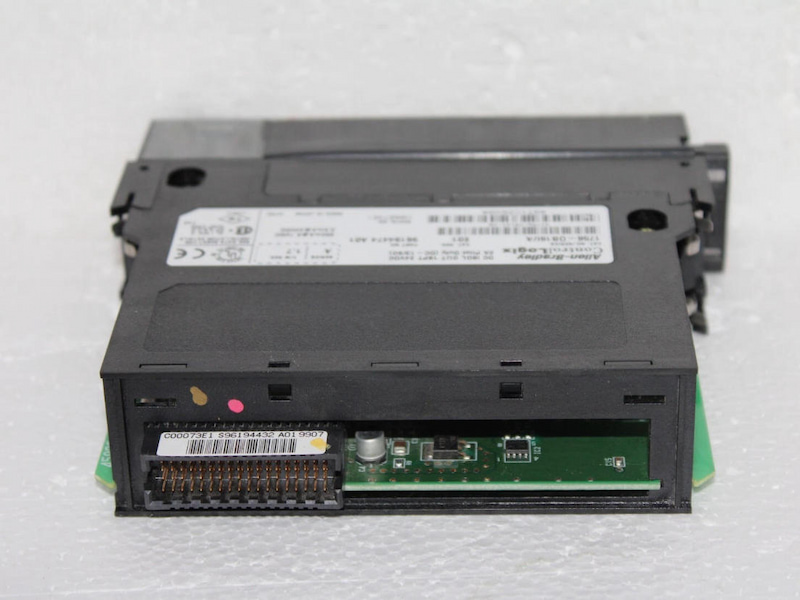

Allen-Bradley 1756-OB16I ControlLogix 16 Point D/O Module

Allen-Bradley 1756-OB16I ControlLogix 16 Point D/O Module

Description

1756 ControlLogix chassis-based modules provide a full range of digital, diagnostic digital, analog, motion control, specialty I/O, and compute modules to meet your application needs. You can use any of the chassis-based modules in the local chassis of a ControlLogix controller or in a chassis linked to a ControlLogix controller across ControlNet® or EtherNet/IP™ networks.

ControlLogix® digital I/O modules are input and output modules that provide On/Off detection and actuation. By using the Producer/Consumer network model, digital I/O modules can produce information when needed while providing additional system functions.

ControlLogix modules mount in a ControlLogix chassis and require either a removable terminal block (RTB) or a Bulletin 1492 wiring interface module (IFM) to connect all field-side wiring.

The Allen-Bradley 1756 ControlLogix CIP Safety I/O Modules provide a reliable, flexible, and scalable solution for integrating safety in industrial automation and control systems. Fitted with Compact GuardLogix® 5380 or GuardLogix 5580 controllers, offering functional safety rated up to and including SIL3 and PLe while supporting CIP safety bridging and routing functionality.

Feature

Communications Format

Output State in Program Mode

Output State in Fault Mode

Transition from Program State to Fault State

Technical Specifications
