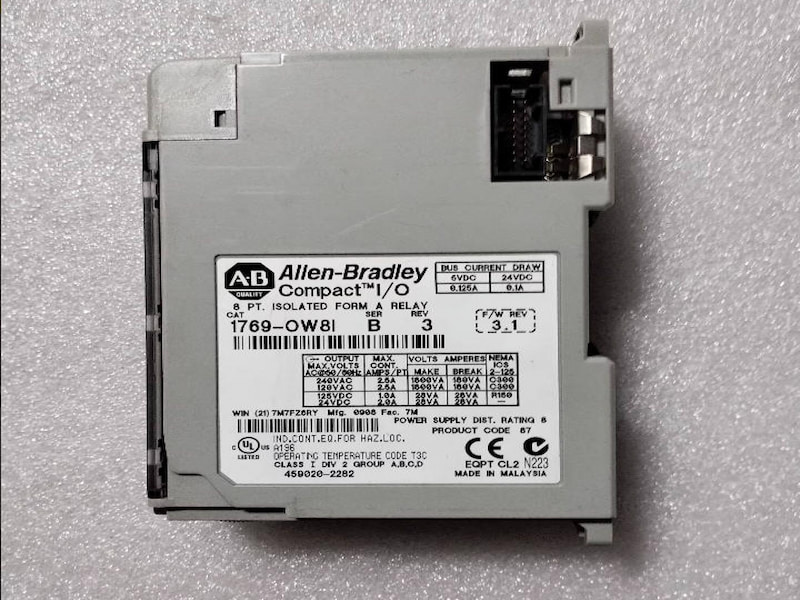

Allen-Bradley 1769-OW8I Compact I/O Discrete Output Modules

Allen-Bradley 1769-OW8I Compact I/O Discrete Output Modules

Description

Series A 1769 discrete output modules and the combination I/O module, when used in the User Defined Safe State (UDSS) output configuration option for PROGRAM mode, do not operate in a manner consistent with 1756 ControlLogix™ output modules. This anomaly occurs when the 1769-ADN DeviceNet™ adapter is in PROGRAM mode.

Each I/O module includes a built-in removable terminal block with fingersafe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

• Once the modules are locked together, the system becomes a rugged assembly.

• Upper and lower tongue-and-groove slots guide the module during installation and attach the module to the system.

• Removable terminal blocks help ease the wiring task.

• Self-lifting, field-wire pressure plates cut installation time.

• The patented bus connector with the lock function enables consistent and system communication.

• A color bar is provided on the front of the module.

• Digital and field circuits are optically isolated.

CompactLogix 8 Point V AC/V DC Individual Isolated Relay Output Module：

AC and DC modules available

I/O density from 8 to 32 points per module

Solid state and relay contact output modules available

High speed input modules

Input filtering is standard

Optical isolation available

Technical Specifications
