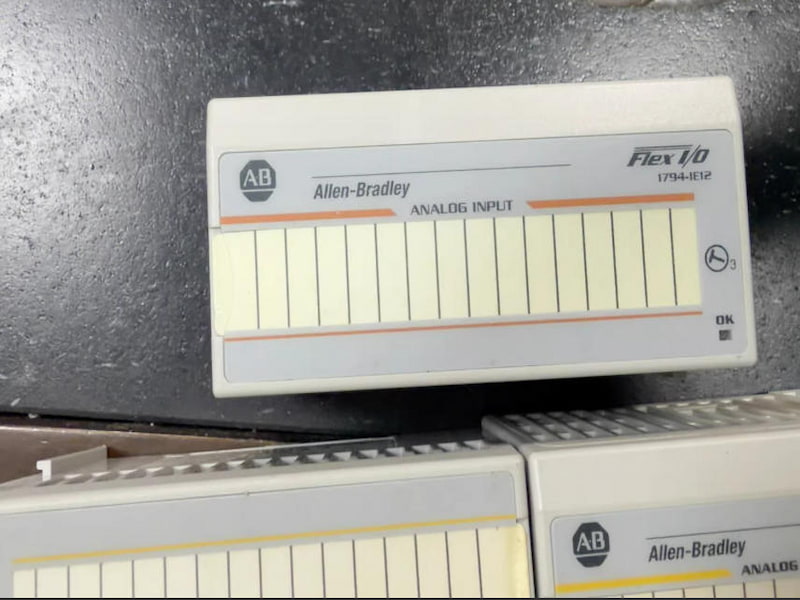

Allen-Bradley 1794-IE12 12 Point Analog Input Module

Allen-Bradley 1794-IE12 12 Point Analog Input Module

Description

The Allen-Bradley FLEX™ I/O system offers a flexible, modular, and cost-effective solution for your industrial automation and control. The space saving design offers rackbased I/O functionality of up to eight modules and provides digital, analog, HART analog, and specialty I/O with 4...32 points per module with flexible mounting and wiring options.

Installation Information：

1 Flexbus connector

2 Latching mechanism

3 Keyswitch 7 Module

4 Terminal base

5 Groove

6 Alignment bar

The FLEX™ I/O analog input/output modules mount on a 1794-TB3G, 1794-TB3GS, 1794-TB3GK, or 1794-TB3GSK terminal base

1. Rotate the keyswitch (3) on the terminal base (4) clockwise to position 3 (1794-IE12 and 1794-IE12K), 4 (1794-OE12), or 5 (1794-IE8XOE4 and 1794-IE8XOE4K) as required.

2. Make certain the Flexbus connector (1) is pushed all the way to the left to connect with the neighboring terminal base/adapter. You cannot install the module unless the connector is fully extended.

3. Make sure the pins on the bottom of the module are straight so they align properly with the connector in the terminal base.

4. Position the module (7) with its alignment bar (6) aligned with the groove (5) on the terminal base.

5. Press firmly and evenly to seat the module in the terminal base unit. The module is seated when the latching mechanism (2) is locked into the module.
