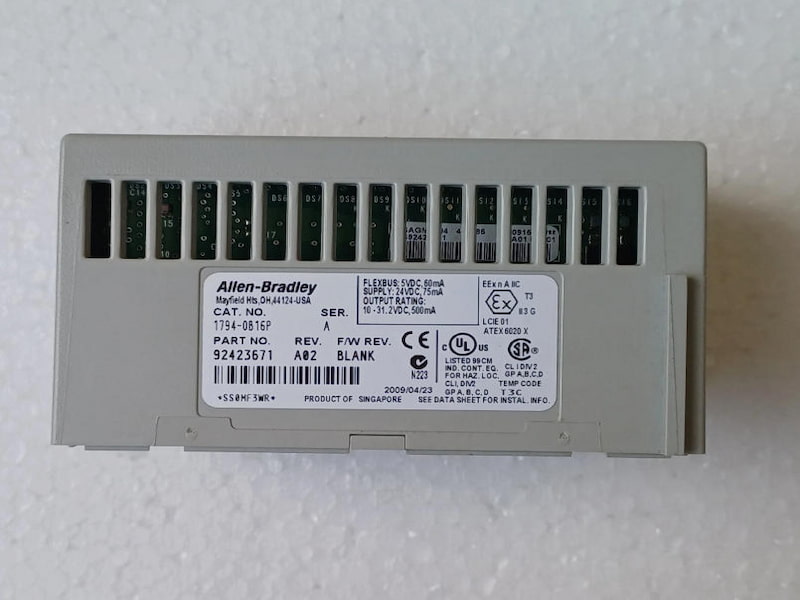

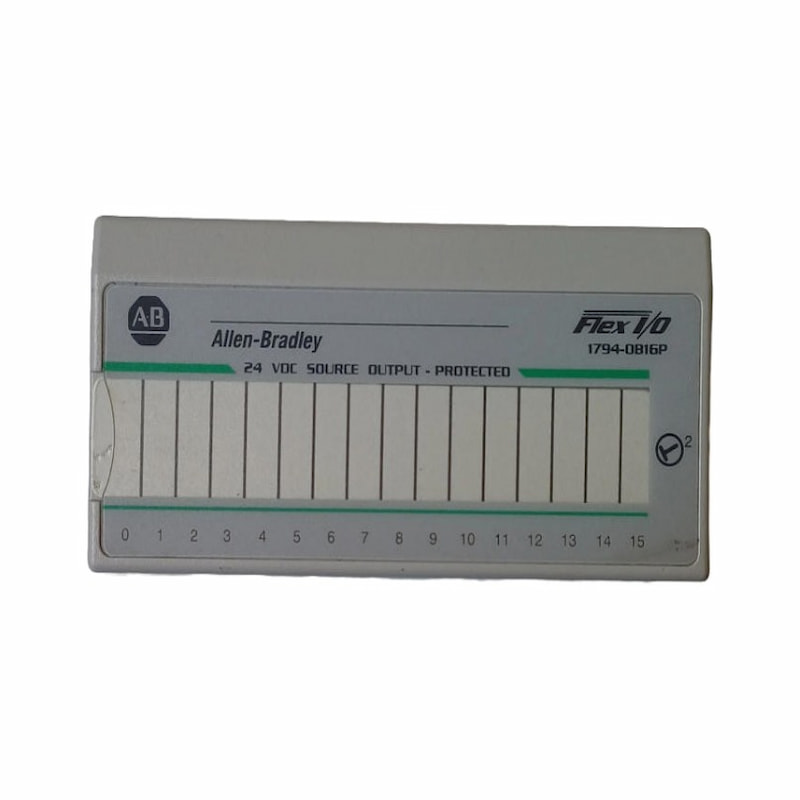

Allen-Bradley 1794-OB16P Digital DC Output Module

Allen-Bradley 1794-OB16P Digital DC Output Module

Description

1794-OB16P provides 16 sourcing 1/2 Amp outputs self-protected against shorts, overloads, and over temperature. The faulted output will automatically return when the fault is removed. No feedback to the processor is provided.

Installation Information：

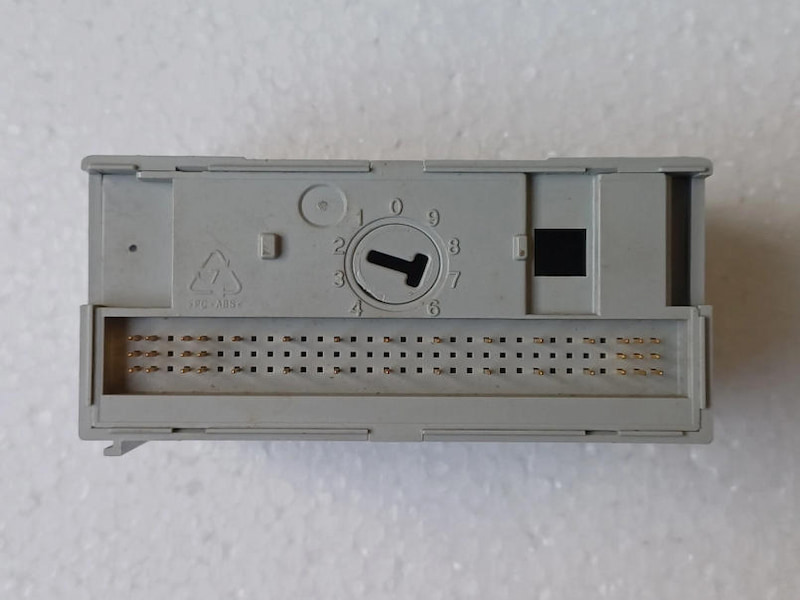

1. Rotate the keyswitch on the terminal base clockwise to position 2 as required for this type of module.

2. Make sure the Flexbus connector is pushed all the way to the left to connect with the neighboring terminal base/adapter.

You cannot install the module unless the connector is fully extended.

3. Make sure the pins on the bottom of the module are straight so they will align properly with the connector in the terminal base.

4. Position the module with its alignment bar aligned with the groove on the terminal base.

5. Press firmly and evenly to seat the module in the terminal base unit. The module is seated when the latching mechanism is locked into the module.

Technical Specifications
