Products
The AMC8 is an Analog Monitoring Card designed for use in the machinery protection equipment.
Brand :
VMPart number :
AMC8 200-550-005-112Description :
Analog Monitoring CardOrigin :
SwitzerlandCondition :
NewDimension :
262 mm x 20 mm x 187 mmWeight :
0.4 kgPayment :
Bank Transfer

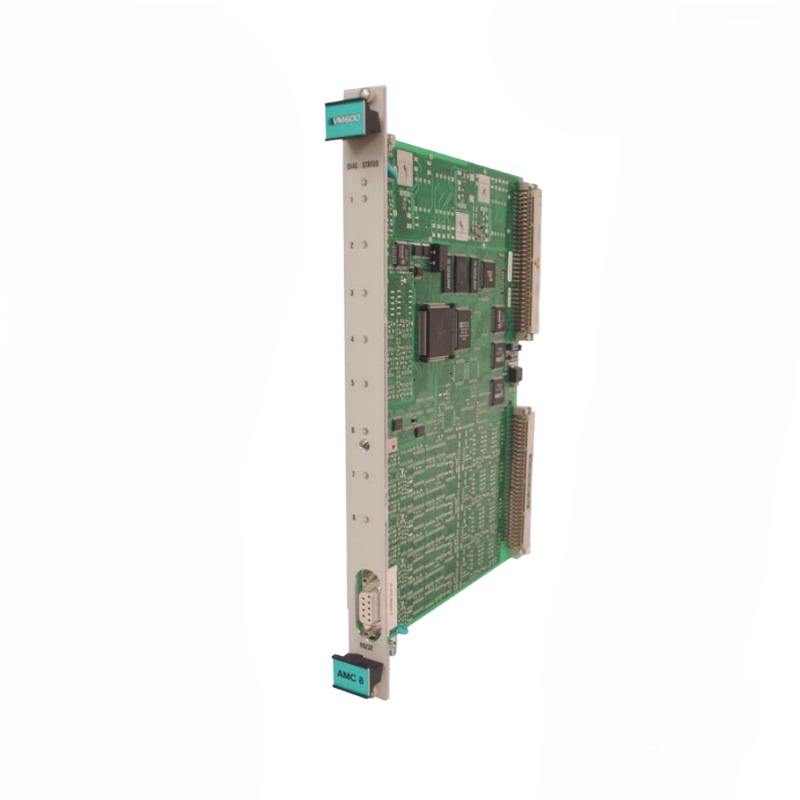

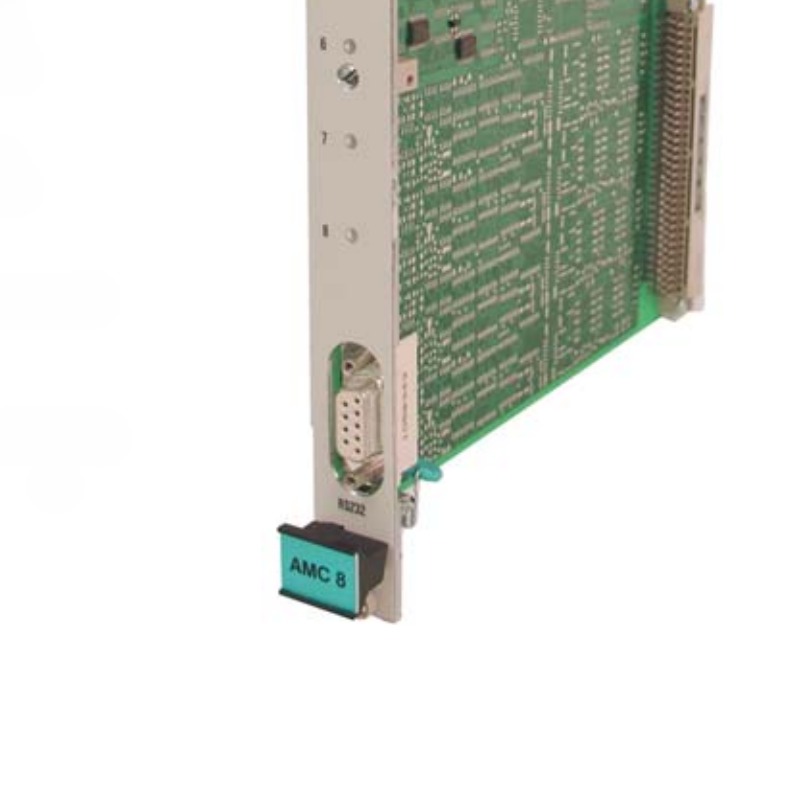

AMC8 200-550-005-112 Analog Monitoring Card
Functional Description
The AMC8 analog monitoring card is installed in the front of ABE04x rack, it's connected directly to the rack's
backplane via two connectors.
The cards provide eight channels of temperature monitoring, accepting both resistance temperature
detector (RTD) and thermocouple (TC) temperature inputs, as well as process inputs. The source for each
channel can be selected during the cards' configuration.
Technical Specifications
| Manufacturer | VM |
| Part Number | AMC8 |
| Ordering Information | 200-550-005-112 |
| Product Catalog | Vibration Monitoring |
| Description | Analog Monitoring Card |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 262 mm x 20 mm x 187 mm |
| Weight | 0.4 kg |
