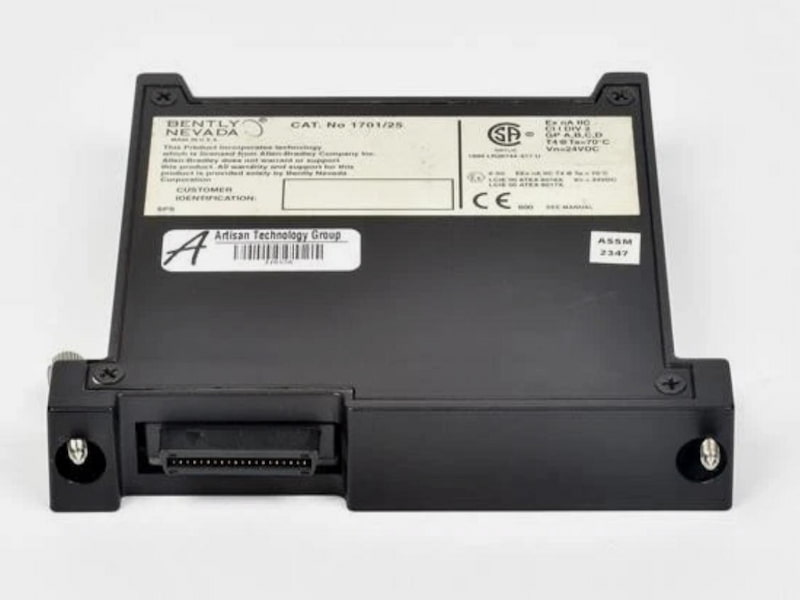

Bently Nevada 1701/25 1034549-21 161141-01 FieldMonitor Seismic Input Monitor

Bently Nevada 1701/25 1034549-21 161141-01 FieldMonitor Seismic Input Monitor

Description

The 1701/25 FieldMonitor™ Seismic Input Monitor is a 2-channel device that accepts signals from acceleration or velocity transducers via its associated transducer I/O module, conditions these signals into the appropriate measurement units, compares them to user-programmable alarm setpoints, and generates appropriate alarm signals for communication to the host control system. Numerous filtering and integration capabilities are provided for appropriate signal conditioning (refer to specifications for details). The monitor can also provide current values of its measured parameters to the control system for indication and trending. Embedded self-tests permit the monitor to assess its own integrity, and that of its connected transducers. A NOT OK condition can be detected and annunciated when problems with the monitor or its connected transducers exist.

The monitor can be programmed to provide any of the following measurements:

 · direct velocity

· rms velocity

· integrated velocity

· filtered direct velocity

· filtered rms velocity

· filtered integrated velocity

· direct acceleration

· rms acceleration

· filtered direct acceleration

· filtered rms acceleration

· integrated direct acceleration (velocity)

· integrated rms acceleration

· filtered integrated direct acceleration

· filtered integrated rms acceleration
