Description

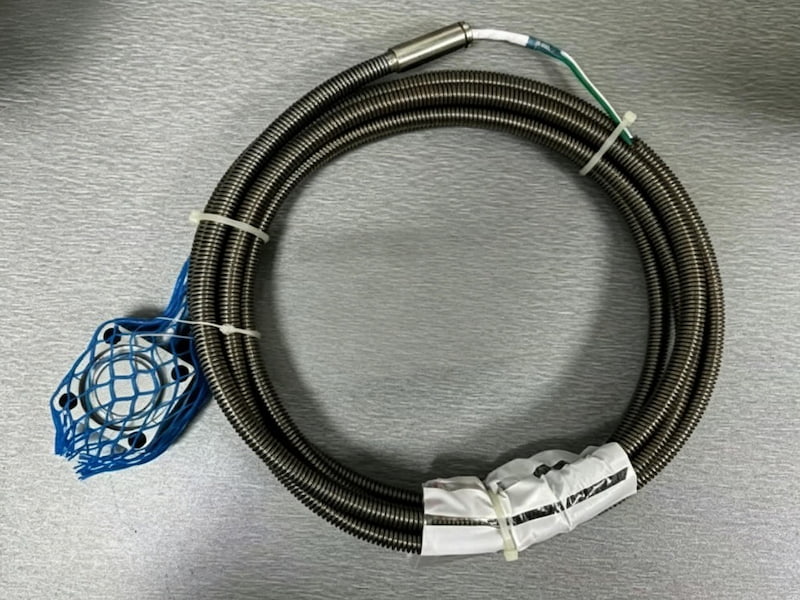

CA202 (Material Number 144-202-000-126) is an industrial high-temperature piezoelectric acceleration sensor. It relies on the output of charge signals from the shear-type piezoelectric sensing element and is specifically designed for long-term continuous vibration collection of large rotating machinery. It is accompanied by a signal conditioner to complete the signal conversion and then connected to the unit condition monitoring system.

This model supports stable operation within an extremely wide temperature range of -55°C to 260°C. It features an integrated stainless steel armored cable with sealing protection, which is resistant to high temperatures, oil, and dust interference. It is suitable for high-heat power equipment such as gas turbines and steam turbines, and can accurately capture the subtle vibration changes of bearings and cylinder bodies, enabling early detection of equipment failure hazards.

Features

High-temperature piezoelectric induction design, range 0.01 - 400g peak, sensitivity 100 pC/g

0.5 - 6000Hz wide frequency response, lateral sensitivity ≤ 3%, extremely low measurement interference

Fully sealed austenitic stainless steel housing, armored high-temperature protective cables

No external power supply required, two-wire charge output, compatible with matching signal conversion module

Tolerant to extreme conditions of -55℃ - 260℃, supports long-term uninterrupted online monitoring

Structurally built with insulation protection, resistant to vibration and shock, suitable for installation in heavy industrial units

Multiple cable lengths available, standardized installation holes, convenient for on-site disassembly and assembly
