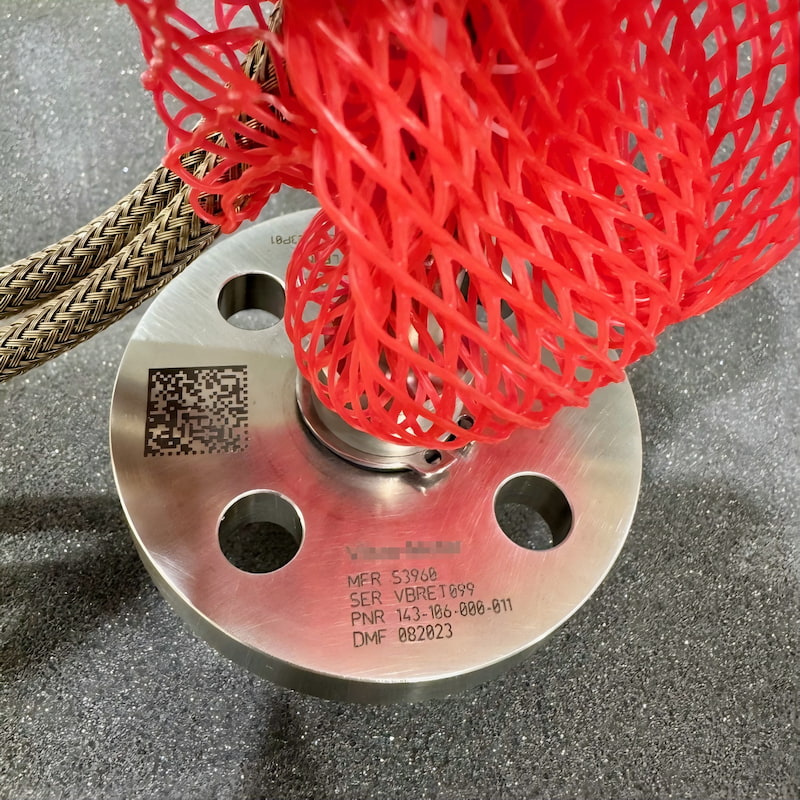

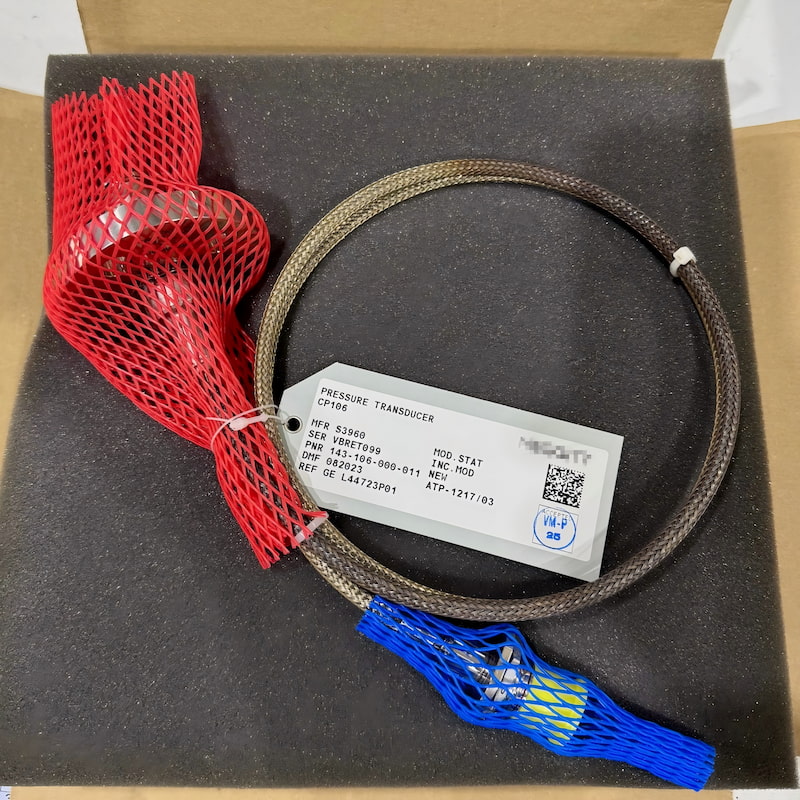

CP106 143-106-000-011 Dynamic Pressure Sensor

CP106 143-106-000-011 Dynamic Pressure Sensor

Functional Description

The CP106 143-106-000-011 is a dynamic pressure sensor, it is mounting on the LM6000 gas turbine and can

withstand temperatures up to 650°C (1202°F). With a dynamic pressure signal, a current modulated output is

once again preferred, owing to the low amplitude of the generated signals. This is converted to a mV/bar

signal by the transfer function of the optional GSI-130 galvanic separator.

Detials

· Sensor Type: Piezoelectric dynamic pressure sensor

· OEM Part Number: CP106 143-106-000-011 (GE L44723P01)

· Temperature Range: -96°C to +650°C (-140°F to +1202°F)

· Sensitivity: 232 pC/bar

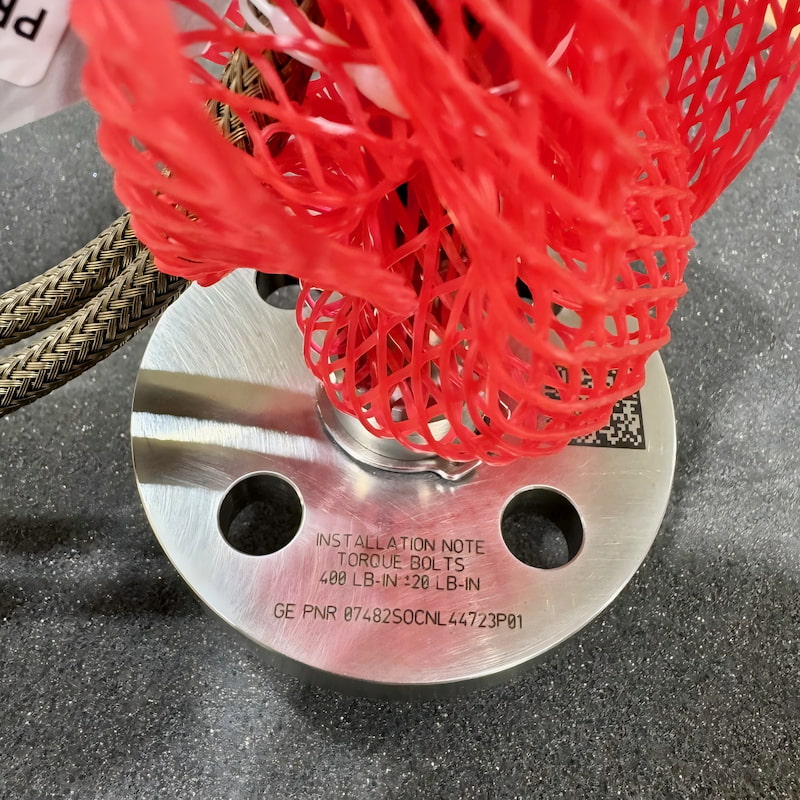

· Build Features: MI cable with overbraid, M83723/89Y10207 connector, and a special GE mounting flange

Technical Specifications
