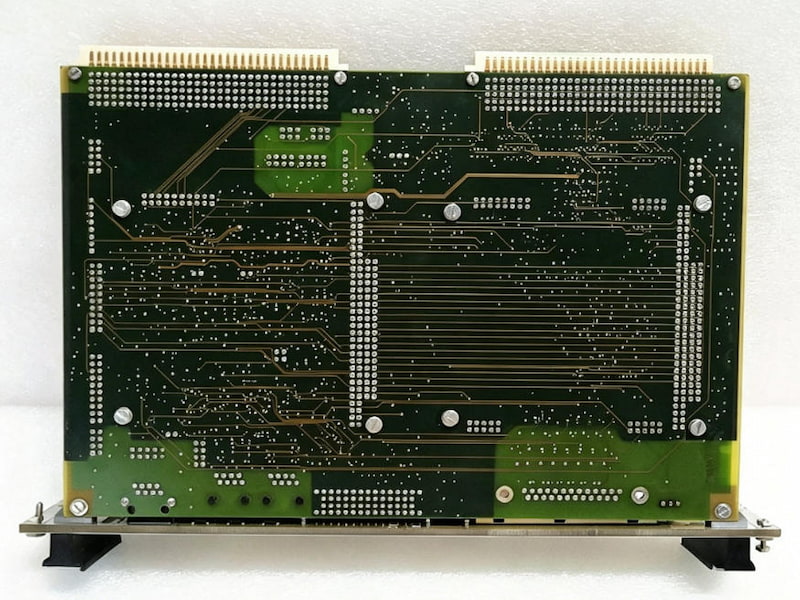

The CPUM 200-595-031-111 is rack central CPU controller & communication gateway for industrial rotating machinery monitoring systems
Brand :
VMPart number :
CPUM 200-595-031-111Description :
CPU CardOrigin :
SwitzerlandCondition :
NewDimension :
40 mm x 40 mm x 24 mmWeight :
385 gPayment :
Bank Transfer
CPUM 200-595-031-111 CPU Card
Description

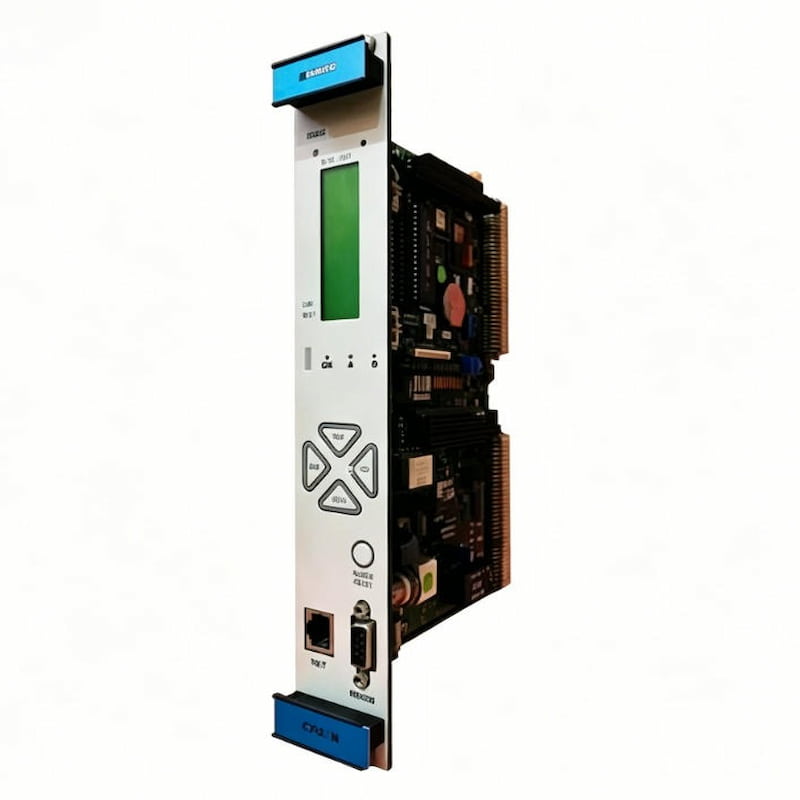

CPUM (Part Number 200-595-031-111) is a dedicated central main control CPU module for the monitoring machine frame. As the core controller of the entire monitoring system machine frame, it uniformly manages all protection and acquisition cards within the frame, and completes core tasks such as centralized management of configuration distribution, automatic adaptation for hot plugging, and centralized control of fault alarms. The front LCD panel enables direct viewing of measurement values and alarm thresholds for each channel.
The module integrates various types of industrial communication interfaces and also has the function of a data gateway. It can forward monitoring data such as vibration, speed, and temperature of the unit via Ethernet and serial ports, in accordance with Modbus and PROFINET standard protocols, to third-party control systems such as DCS and PLC. The onboard non-volatile storage automatically records system events and measurement alarm logs, and is suitable for long-term online monitoring scenarios of large-scale rotating units in the thermal power and oil and gas industries.
Features
The rack control unit uniformly manages various monitoring and protection cards, supporting automatic configuration for hot-swappable cards.
The front LCD display + operation keys allow for on-site viewing of channel data and one-click reset of the entire machine alarm.
Dual Ethernet + multiple serial port communications, compatible with Modbus TCP/RTU and PROFINET industrial buses.
Built-in event storage can save tens of thousands of system and measurement historical records for easy fault tracing.
The accompanying communication auxiliary card expands multiple isolated RS485 interfaces, supporting multi-rack cascading networking.
Equipped with a security access lock mechanism to restrict external network operations, ensuring the stability of the unit's protection functions.
-20°C to 65°C wide temperature range operation, with a full-metal 6U rack standard plug-and-play structure.
Multiple status LED indicators, enabling quick determination of module, channel, and network operational abnormalities.
Technical Specifications
| Manufacturer | VM |
| Part Number | CPUM |
| Ordering Information | 200-595-031-111 |
| Product Catalog | Vibration Monitoring |
| Description | CPU Card |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 40 mm x 40 mm x 24 mm |
| Weight | 385 g |
