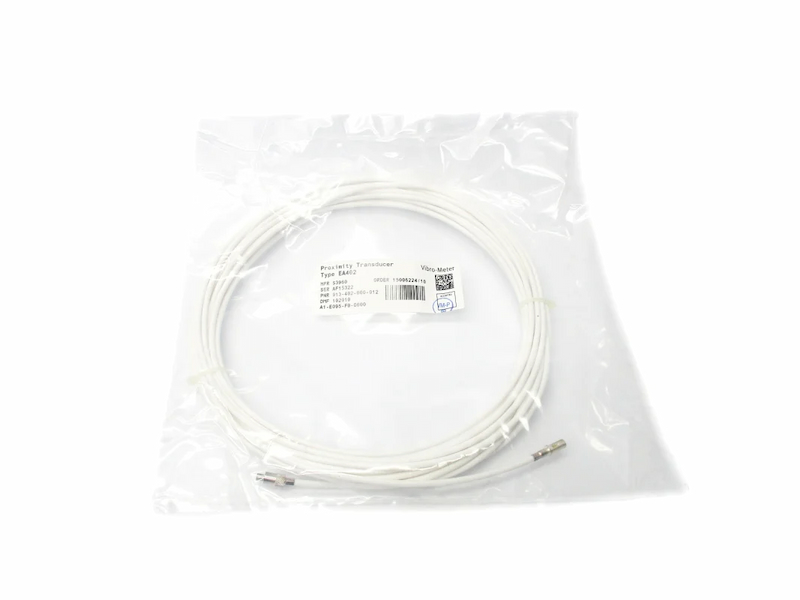

EA402 913-402-000-013 Extension Cable

EA402 913-402-000-013 Extension Cable

The EA402 913-402-000-013  transducer body is available only with metric thread. The TQ403 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector. $1,000.00
  • Brand :

    VM
  • Part number :

    EA402 913-402-000-013
  • Description :

    Extension Cable
  • Origin :

    Germany
  • Condition :

    New
  • Dimension :

    16 cm × 16 cm × 12 cm
  • Weight :

    0.8 kg
  • Payment :

    Bank Transfer
Contact Us:

EA403 913-403-000-013



The TQ402/TQ412, EA402 and IQS900 form a proximity measurement system,This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.



TQ4xx-based proximity measurement systems are particularly suitable for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbo compressors and pumps.



KEY FEATURES AND BENEFITS



• Non-contact measurement system based on eddy-current principle



• Ex certified versions for use in hazardous areas (potentially explosive atmospheres)



• Conforms to API 670 recommendations



• 1, 5 and 10 m systems



• Temperature-compensated design



• Voltage or current output with protection against short circuits



• Frequency response: DC to 20 kHz (−3 dB)



• Measurement range: 2 or 4 mm



• Temperature range: −40 to +180 °C

EA403 913-403-000-013



Technical Specifications

Part Number 913-402-000-013
Ordering Information EA402
Product Catalog Vibration Monitoring
Description Proximity Transducer
Voltage  −20 to −32 V
Current −13 mA ± 1 mA
Dimension 16 cm × 16 cm × 12 cm
Weight 0.8 kg



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com
