The KJ4001X1-BE1 is a 8 Wide I/O Carrier with Shield Bar used in the DeltaV Distributed Control System.
Brand :
EmersonPart number :
KJ4001X1-BE1 12P0818X072Description :
8 Wide I/O Carrier with Shield BarOrigin :
ThailandCondition :
NewDimension :
165 mm x 336 mm x 31 mmWeight :
0.4 kgPayment :
Bank Transfer

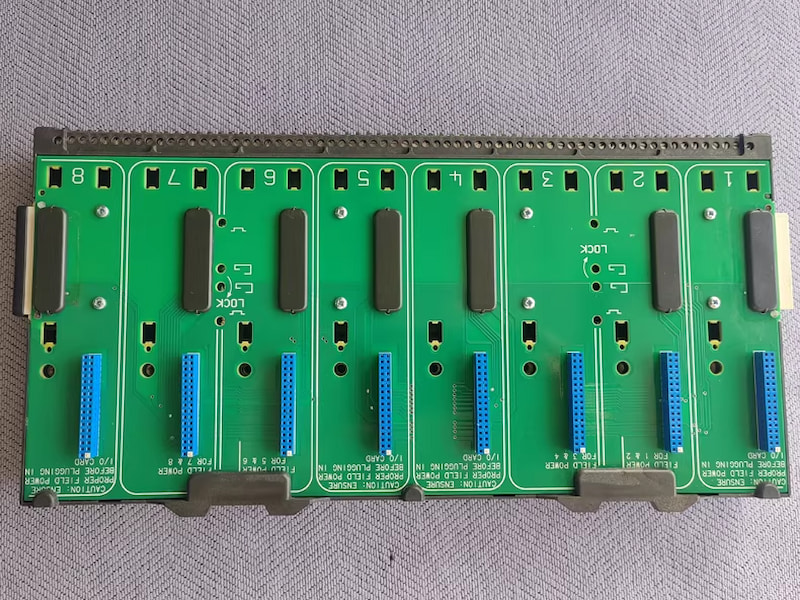

Emerson KJ4001X1-BE1 12P0818X072 8 Wide I/O Carrier with Shield Bar
Functional Description
The I/O interface carrier plugs on to the power/controller carrier. The power/controller carrier supplies the
system power and communications between the I/O interfaces and the controller. The controller processes
the I/O interface information. An additional power/controller carrier is required for use with redundant
controllers.
Mount your interface carrier on a T-type DIN rail. The I/O interface carrier includes the connections for the
bulk 24 VDC field instrument power, I/O interfaces, and terminal blocks. Each I/O interface carrier is
equipped with a connector that allows an additional I/O interface carrier to be plugged on to it. Up to 64 I/O
interfaces on eight 8-wide I/O interface carriers are supported by a single I/O subsystem. For the horizontal-
mount solution, 1-wide local bus extenders allow you to continue the I/O bus on a different row of carriers.
Technical Specifications
| Manufacturer | Emerson |
| Part Number | KJ4001X1-BE1 |
| Ordering Information | 12P0818X072 |
| Product Catalog | DeltaV Distributed Control System |
| Description | 8 Wide I/O Carrier with Shield Bar |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 165 mm x 336 mm x 31 mm |
| Weight | 0.4 kg |
