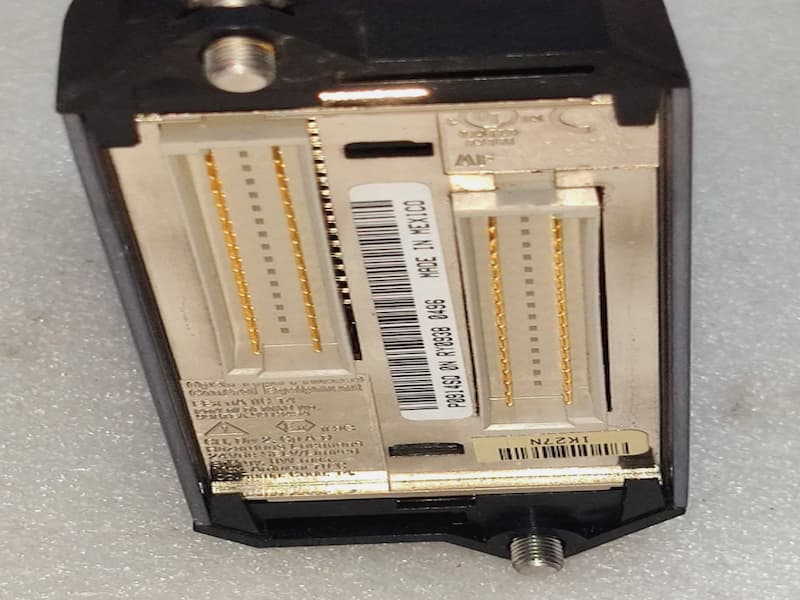

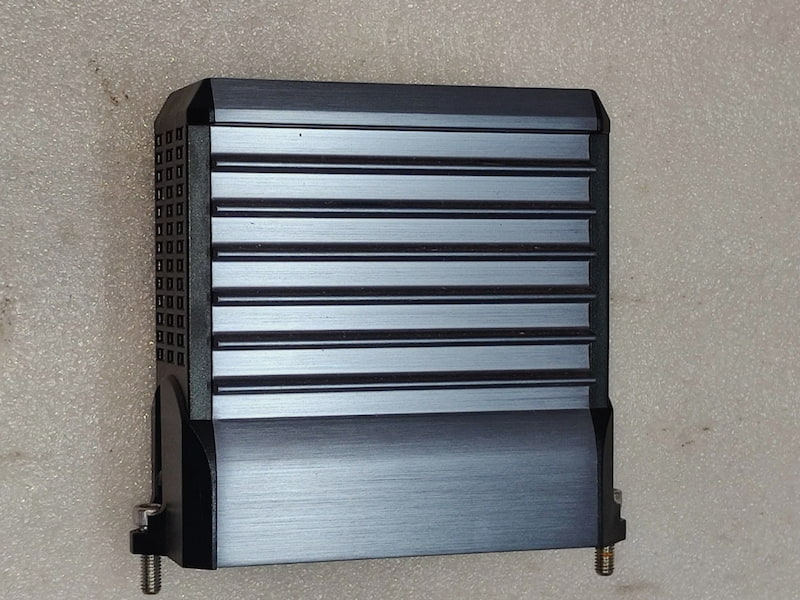

Foxboro FBM201 Analog Input Interface Module

Foxboro FBM201 Analog Input Interface Module

Description

The Compact FBM201 Analog Input Interface Module contains eight analog input channels, each channel accepting a 2-wire, 0 to 20 mA dc input from an analog sensor.  The modules perform the signal conversion required to interface the electrical input signals from the field sensors to the FCP or ZCP.

FEATURES

• Eight channels for input of analog 0 to 20 mA dc sensor signals
• Each analog input channel is galvanically isolated from other channels and ground
• Compact, rugged design suitable for enclosure in Class G3 (harsh) environments
• Execution of an analog input application program that provides conversion time and configurable options for integration time and Rate of Change Limits
• High accuracy achieved by sigma-delta data conversions for each channel
• Termination Assemblies (TAs) for locally or remotely connecting field wiring to the Compact FBM201 module
• Termination Assemblies for per channel internally and/or externally loop powered transmitters

Technical Specifications
