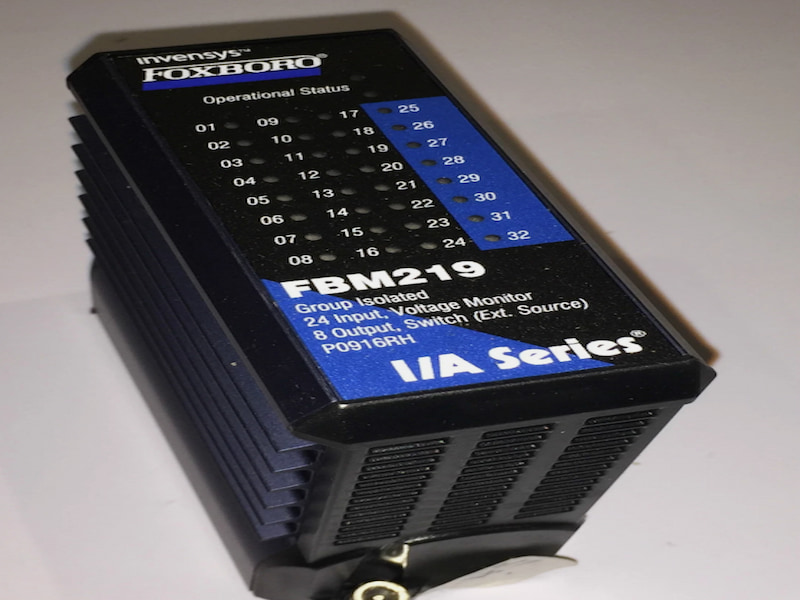

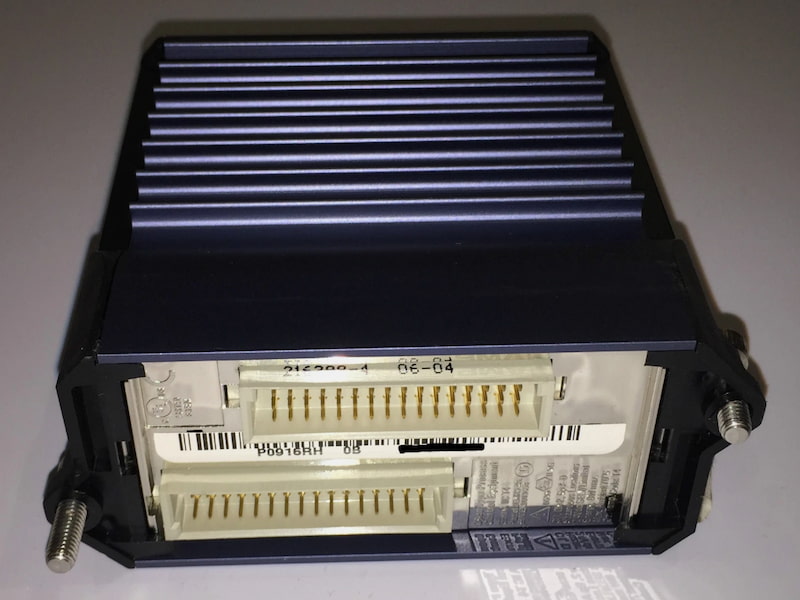

Foxboro FBM219 Discrete I/O Interface Module

Foxboro FBM219 Discrete I/O Interface Module

Description

The FBM219 Discrete I/O Module has 24 discrete input channels and 8 discrete output channels. Associated termination assemblies (TAs) support discrete input or output signals at voltages of under 30 V dc, 120 V ac/125 V dc, or 240 V ac.

Depending on the type of I/O signal required, the TAs contain current limiting devices, fuses, relays, or relay outputs with internal or external power source and fusing.

When connected to the appropriate TAs, the FBM219 module provides functionality formerly provided by the 100 Series FBM I/O subsystem.

TAs are available which support the functionality of the 100 Series main FBM07A/B, FBM08, FBM20, and FBM24A/B/C (16 input main FBMs), when these main FBMs are used with expansion FBM14, FBM15, FBM16, FBM27 or FBM42 (8 input/8 output expansion FBMs).

Features

• Twenty-Four (24) discrete inputs
• Eight (8) discrete outputs
• Supports discrete input/output signals at voltages of:

  15 to 60 V dc

  120 V ac/125 V dc

  240 V ac

•  Each input/output is group isolated
• Rugged design suitable for enclosure in Class G3 (harsh) environments
• Executes the Discrete I/O or Ladder Logic program, with the following configurable options: Input Filter Time, Fail Safe Configuration, FailSafe Fall-Back, and Sustained or Momentary Outputs
• Various Termination Assemblies (TAs) that contain high voltage attenuation and optical isolation for inputs
