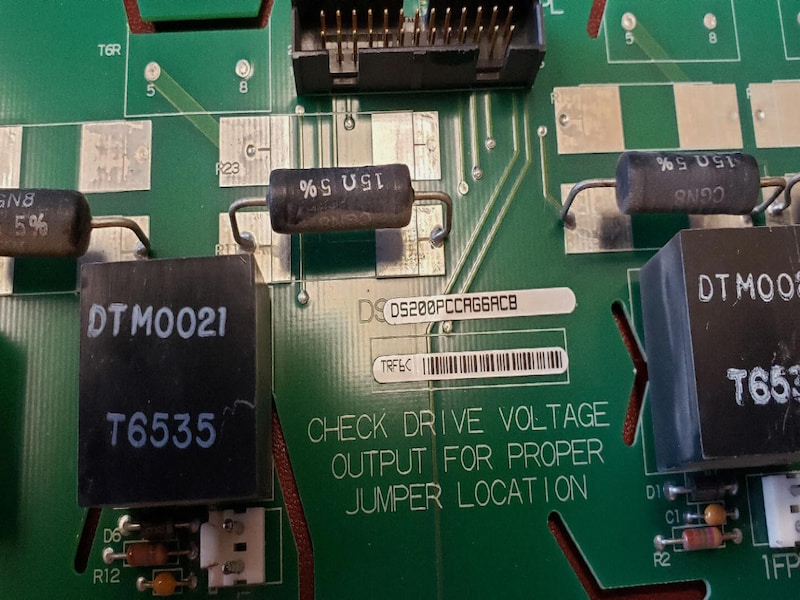

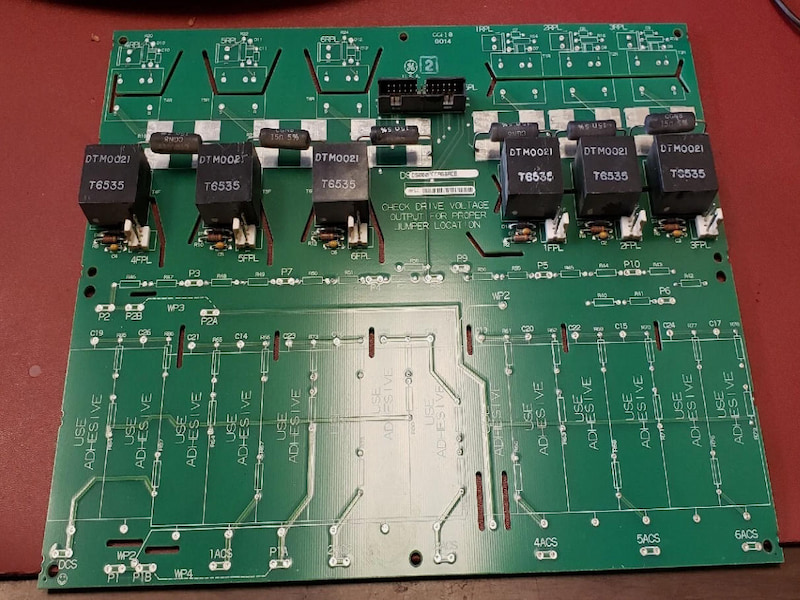

GE DS200PCCAG6ACB Power Connect Board

GE DS200PCCAG6ACB Power Connect Board

Description

The GE DS200PCCAG6ACB is a dedicated DC power connection card (PCCA) for GE Mark V turbine control systems. Serving as the core interface module between the drive controller and SCR power bridge, it transmits gate drive signals and power configuration information to ensure stable operation of the excitation and drive systems.

This board is compatible with J/K/M frame structures, supports regenerative/non-regenerative power conversion modes, and features a pulse transformer with standard interfaces. It delivers reliable operation in demanding industrial environments such as power plants, gas turbines, and steam turbines, while offering simplified installation and maintenance.

Features

• For GE Mark V Speedtronic Turbine Control Systems
• Power connection interface between drive control and SCR power bridge
• Supports 240–700V wide voltage range for regenerative/non-regenerative operation
• On-board pulse transformer provides stable gate drive signals
• Compatible with J/K/M frames and DCFB power boards
• Industrial-grade design for heavy-duty turbines and power generation equipment

Technical Specifications
