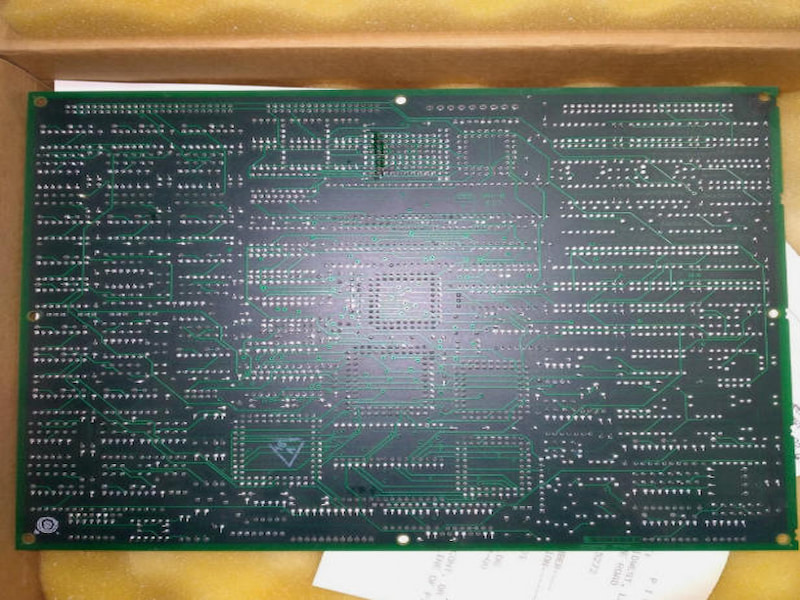

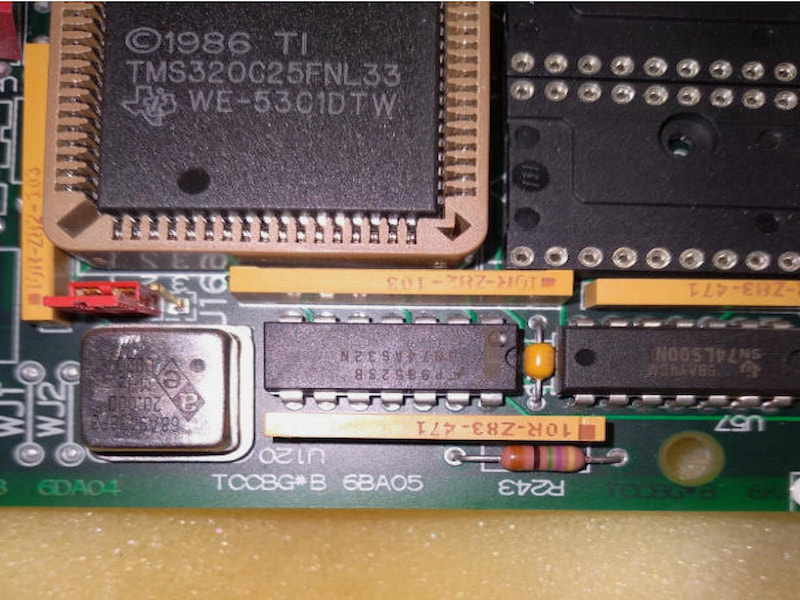

GE DS215TCCBG8BZZ01A Analog I/O Board

GE DS215TCCBG8BZZ01A  Analog I/O Board

Description

The GE DS215TCCBG8BZZ01A is a universal expansion analog I/O board specifically designed for the GE Speedtronic Mark V control system. It is a core component of the drive control system, mainly responsible for the collection, conditioning and transmission of analog signals during the operation of the steam turbine. It precisely processes key parameters such as RTD and milliampere-level inputs, providing reliable data support for the system control logic.

This board is designed according to industrial standards and is compatible with the single-slot installation of the Mark V system rack. It integrates multiple sets of dedicated connectors to achieve stable communication and power supply, supports signal filtering and data calibration functions, and can operate stably in harsh industrial environments, ensuring the accurate transmission and efficient processing of analog signals during the steam turbine control process.

Features

• Compatible with GE Speedtronic Mark V control system, universal extended analog I/O board
• Core functions: analog signal acquisition, conditioning, filtering and data transmission
• Support for 14 RTD and 14 milliampere-level input signal processing
• Single-slot rack installation, equipped with multiple sets of dedicated connectors, ensuring stable connection
• Integrated signal calibration and filtering circuits, improving data accuracy and anti-interference ability
• Industrial-grade hardware design, suitable for harsh industrial conditions such as power plants
• Provides precise analog I/O data support for turbine control

Technical Specifications
