The IS200BICIH1ACA is a Bridge Interface Controller Board, it is manufactured and designed by General Electric as part of the Mark VI series used in GE SPEEDTRONIC Mark VI Turbine Control Systems.
Brand :
GEPart number :
IS200BICIH1ACADescription :
Bridge Interface Controller BoardOrigin :
USACondition :
NewDimension :
18 cm x 12 cm x 3 cmWeight :
0.8 kgPayment :
Bank Transfer

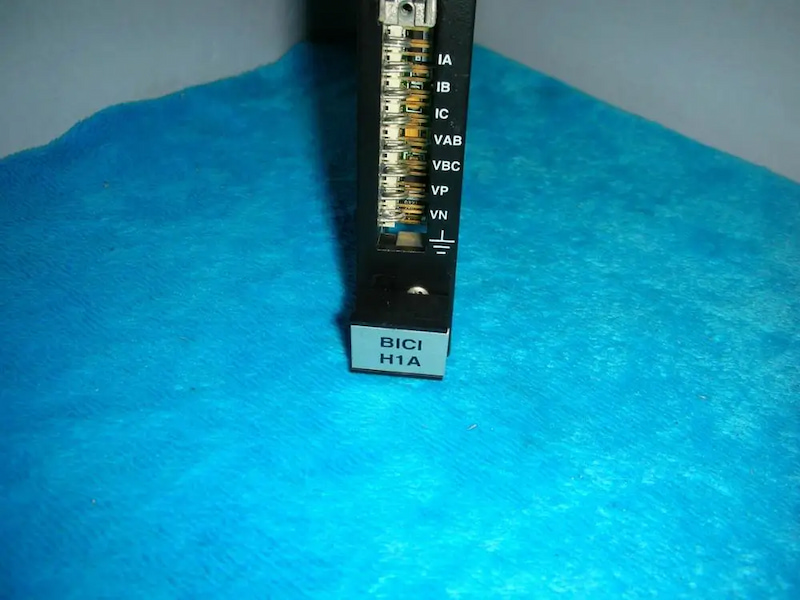

IS200BICIH1ACA Bridge Interface Controller Board
The IS200BICIH1ACA Bridge Interface Controller Board (BICI) is a controller board for bridges using Integrated Gate commtated Thyristor (IGCT) switching devices, The BICI board mounts in an Innovation Series board rack and interfaces to the IS200CABP Contol Assembly Back Plane Board(CABP) through its P1 and P2 backplane connectors(CABP connectors J15 and J20). Input power for the BICI board is provided by the DS200RAPA Rack Power Supply Board (RAPA) and comes from the CABP board through BICI board backplane connectors P1 and P2. The BICI board does not provide power to any other boards or assemblies. Gate control and status feedback signals from the IS200BPII Bridge Power Interface Board (BPII) are conditioned and sent to the BICI board via the P1 and P2 backplane connectors.
Three connectors are located on the front panel of the BICI board, PFBK1, PFBK2, and PSRC.
· PFBK1: Feedback signals from the first full bridge or first half of the cells in a series bridge are brought back to the BlCI board frorn the IS200GGXI Expander Load/Souce Board(GGXI) through connector PFBK1(44-pin high density and special twisted pair).
Technical Specifications
| Manufacturer | GE |
| Part Number | IS200BICIH1ACA |
| Ordering Information | IS200BICIH1A |
| Product Catalog | Mark VI |
| Description | Bridge Interface Controller Board |
| HS Code | 85389091 |
| Origin | USA |
| Dimensions | 18 cm x 12 cm x 3 cm |
| Weight | 0.8 kg |
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS.
Payment : 100% advance payment bank wire transfer.
Returns : Quality problems can be replaced within 15 working days from the date of receipt of the product, repair services can be provided within 1 year.
Please contact us to get the product manual.
