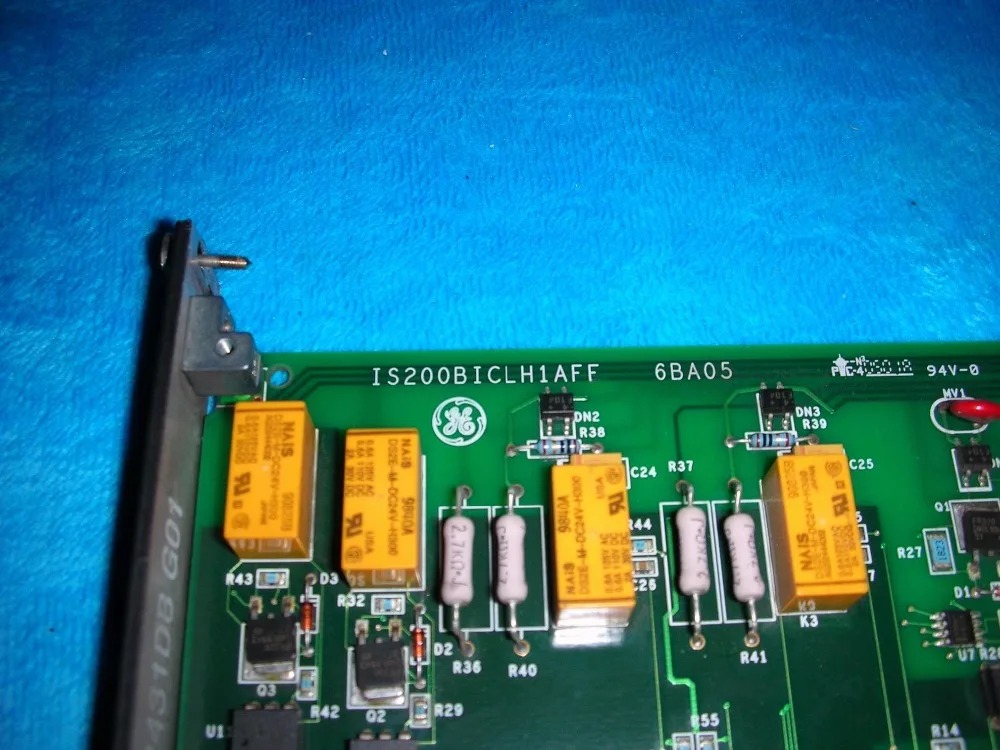

IS200BICLH1AFF IGBT Drive/Source Bridge Interface Board

The IS200BICLH1AFF developed by General Electric is a component for the Mark VI series and is apart of the Speedtronic series for gas/steam turbine management. It functions primarily as a Bridge Interface Board between Bridge Personality Interface boards (BPIA/BPIB/SCNV) and the Innovation Series Drive main control board. It features ambient temperature monitoring and a fan pulse width modulated speed control interface and mounts into a VME type rack and connects via two backplane connectors.

BICLEPLD:

• Three-Phase upper/lower IGBT driver PWM/dead band control

• Bridge phase shunt and IGBT desaturation fault latching

• Panel and system interlock fault monitoring

• Bridge shutdown on a fault.

• MA and MB contactor control

• Fan speed PWM control

• A/D converter address decoding

• Clock division and logic synchronization

SCNVEPLD:

• Three-Phase SCR gate firing pattern generators

• Dynamic Braking (DB) IGBT driver PWM control

• DB IGBT desaturation and temperature fault latching

• DB voltage feedback VCO counter

• Panel and system interlock fault monitoring

• Bridge shutdown on a fault

• MA and MB contactor control

• Fan speed PWM control

- A/D converter address decoding

- Clock division and logic synchronization
