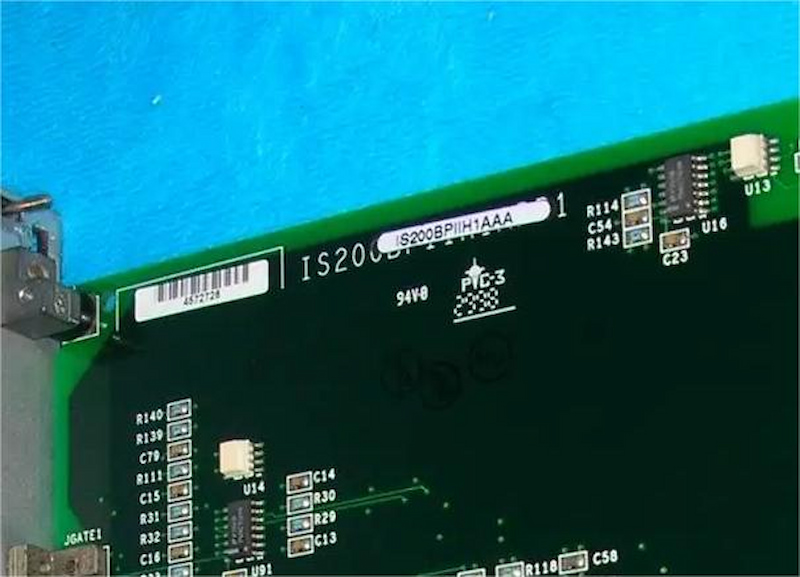

GE IS200BPIIH1A IS200BPIIH1AAA Bridge Power Interface Board

GE IS200BPIIH1A IS200BPIIH1AAA

The IS200BPIIH1A Bridge Power Interface Board(BPII) is a bridge power interface for bridges using lntegrated Gate Commutated Thyristor (IGCT) switching devices. The board occupies connectors J16 and J21 of the IS200CABP Cabe Assembly Backplane Board (CABP) in an Innovation Seriesrm board rack.

The IS200BPII board provides for the relay of 24 gate firing commands and 24 gate status feedback signals between the IS200BICI Bridge Interface Control Board (BICI) and two remotely mounted IS200GGXI Expander Load Source Boards (GGXI). The  GGXI board translates the firing and status commands between these signals and the fiber-optic interfaces for access to gate driver modules located in the bridge.

The BPII board is designed to interface with and complement the BICI board. The BPII board is connected to the BICI  board through the Innovation Series board rack backplane. Card front connectors on both boards connect to the GGXI boards. High voltage isolation to the BPII and BICI boards is provided by fiber-optic connections to the GGXI boards. Voltagefeexl back isolation is provided by attemuation from the DS200NATO Voltage Feedback Scaling Board (NATO).

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
