The IS200EBKPG1C is an Exciter Backplane Control Board used in the EX2100 Excitation Control system.
Brand :
GEPart number :
IS200EBKPG1CDescription :
Exciter Backplane Control BoardOrigin :
USACondition :
NewDimension :
330 mm x 178 mm x 30 mmWeight :
0.3 kgPayment :
Bank Transfer
GE IS200EBKPG1C Exciter Backplane Control Board
Functional Description

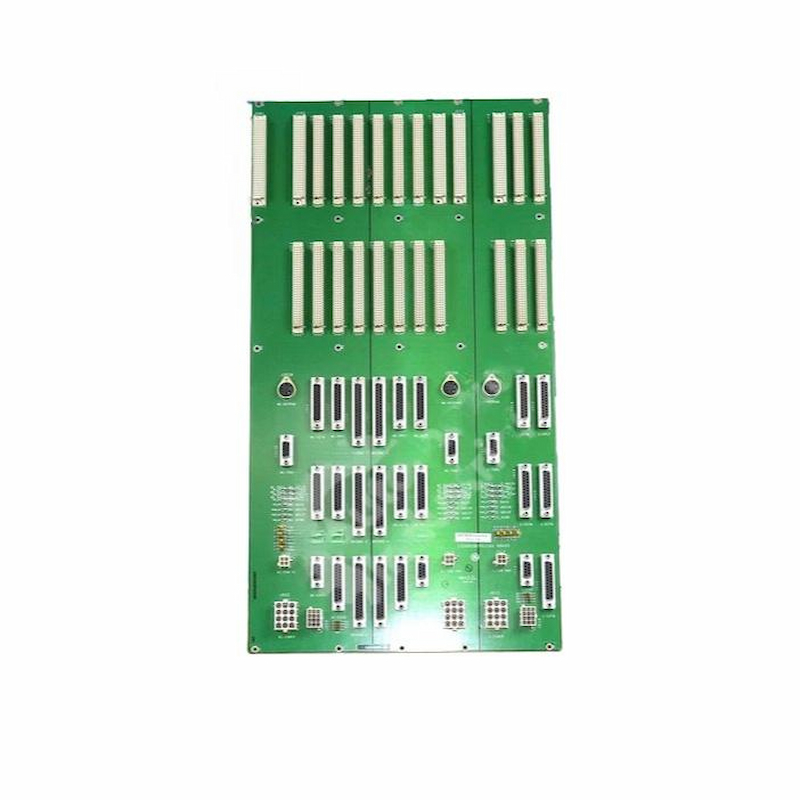

The IS200EBKPG1C Exciter Back Plane (EBKP) is used in the EX2100 Excitation Control. It is part of the control
module and provides the backplane for the control boards, and the connectors for the I/O terminal board
cables. EBKP has three sections for the controllers M1, M2, and C. Each section has its own independent
power supply. Sections M1 and M2 both have the ACLA or ACLE, DSPX, EISB, EMIO, and ESEL boards. Section
C has the DSPX, EISB, and EMIO. The EBKP board is mounted in a rack holding the control boards, with two
cooling fans at the top.

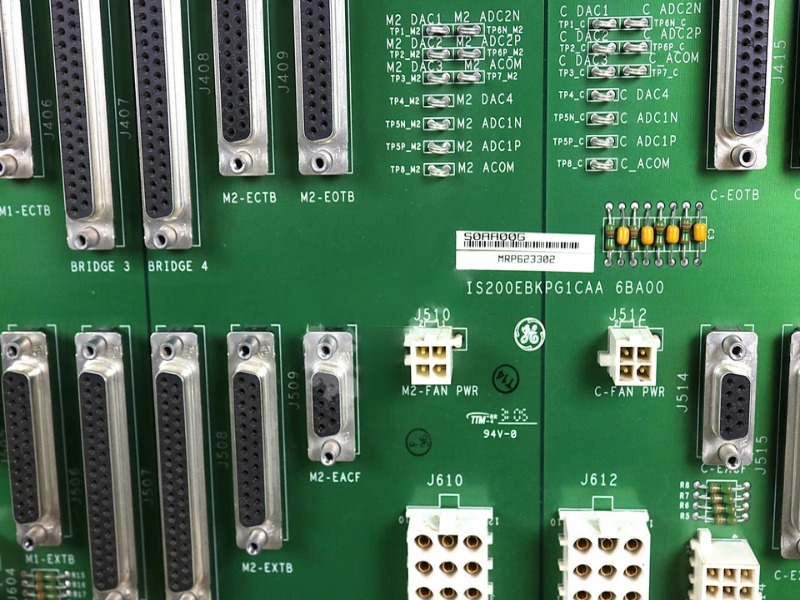

The upper part of the backplane contains 24 DIN connectors as part of the backplane. The lower part of the
backplane contains 27 D-SUB connectors, three circular DIN connectors, three 12-pin power supply plugs,
three fan power plugs, and 30 Testpoints.
Technical Specifications
| Manufacturer | GE |
| Part Number | IS200EBKPG1C |
| Ordering Information | IS200EBKPG1C |
| Product Catalog | EX2100 Excitation Control system |
| Description | Exciter Backplane Control Board |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 330 mm x 178 mm x 30 mm |
| Weight | 0.3 kg |
