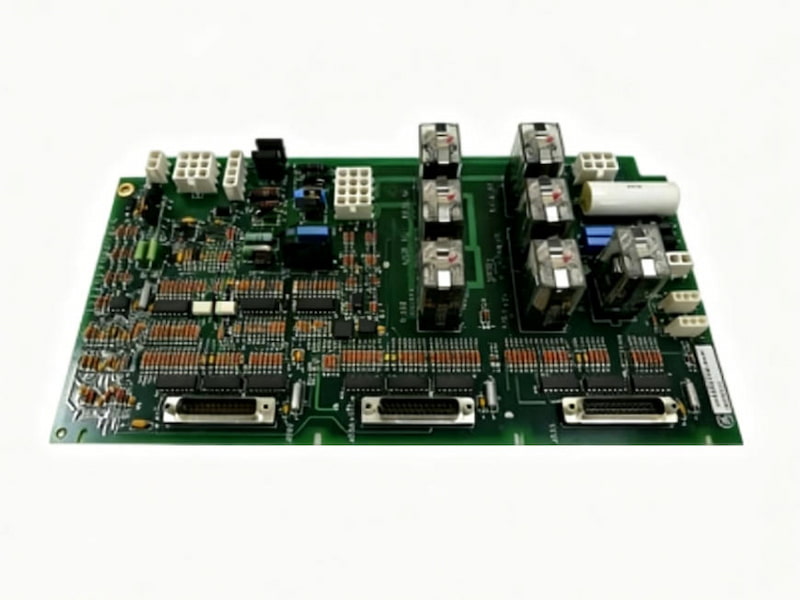

GE IS200EXIBG1ADB Mark VI Exciter Bridge Interface Board

GE IS200EXIBG1ADB Mark VI Exciter Bridge Interface Board

Description

GE IS200EXIBG1ADB is the excitation bridge interface module of the EX2100/Mark VI excitation control system. As the core interface between the control unit and the power bridge, it is responsible for triggering signal transmission and monitoring the status of the bridge circuits.

This module has the capabilities of electrical isolation and fault diagnosis. It can monitor voltage and current signals in real time, ensuring the stability and reliability of excitation control, and is suitable for excitation control scenarios of gas turbines and steam turbine generators.

Features

As the excitation bridge interface of the Mark VI system, it transmits trigger signals and monitors the status of the bridge circuit.

It provides electrical isolation between high and low voltage circuits to protect the safety of system components.

It integrates current and voltage feedback monitoring, supporting fault diagnosis and alarm.

It is of industrial-grade design, suitable for harsh working conditions, and operates stably and reliably.

It is compatible with the GE EX2100 excitation system and is easy to install.

Technical Specifications
