The IS200GGXIG1AED is a gating interface board for GE Mark VI systems, driving and controlling IGCT power devices.
Brand :
GEPart number :
IS200GGXIG1AEDDescription :
Speedtronic Turbine Control PCB BoardOrigin :
USACondition :
NewDimension :
38 cm x 22 cm x 3 cmWeight :
0.4 kgPayment :
Bank Transfer

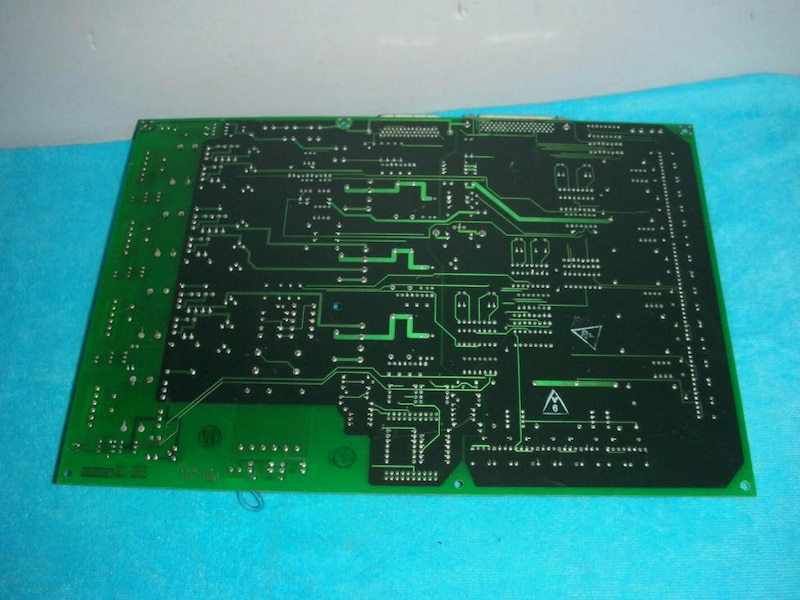

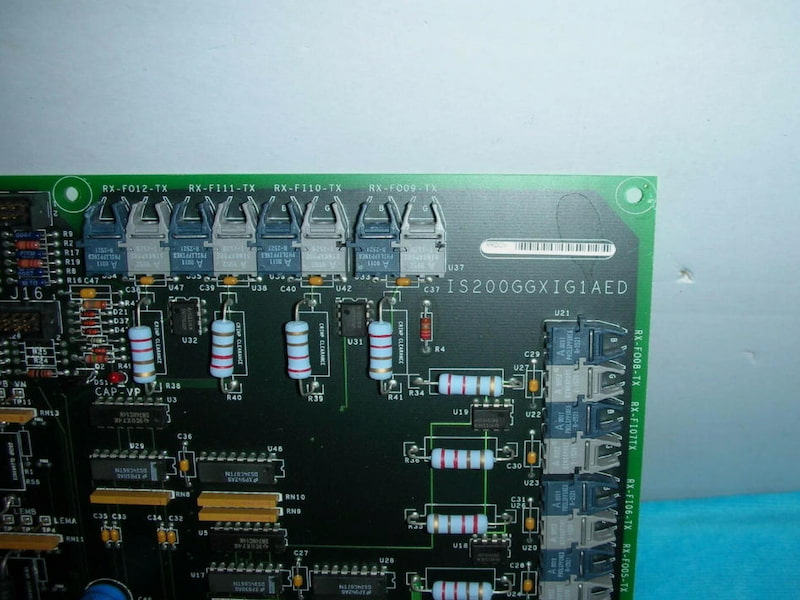

GE IS200GGXIG1AED Speedtronic Turbine Control PCB Board
Description
GE IS200GGXIG1AED is an extended load source board (GGXI) specifically designed for the GE Mark VI Speedtronic control system, tailored for the high-pressure power circuit of gas/steam turbines. It serves as a critical interface between the control layer and the power layer, enabling gate control drive, signal isolation, and communication conversion for power semiconductor devices such as IGCTs.
The module integrates RS422 to fiber optic communication, multiple power and feedback interfaces, supports simplex and **triple modular redundancy (TMR)** architectures, and can connect up to 12 power devices. Through standard connectors and working in coordination with boards such as BPII and BICI, it provides a stable and anti-interference control signal link for the generator excitation, frequency conversion, and power regulation systems.
Features
Technical Specifications
| Manufacturer | GE |
| Part Number | IS200GGXIG1AED |
| Ordering Information | IS200GGXIG1AED |
| Product Catalog | MKVIe |
| Description | I/O (ERAX) BOARD |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 38 cm x 22 cm x 3 cm |
| Weight | 0.4 kg |
