GE IS200IGPAG2A IS200IGPAG2AED Gate Driver Power Supply Board

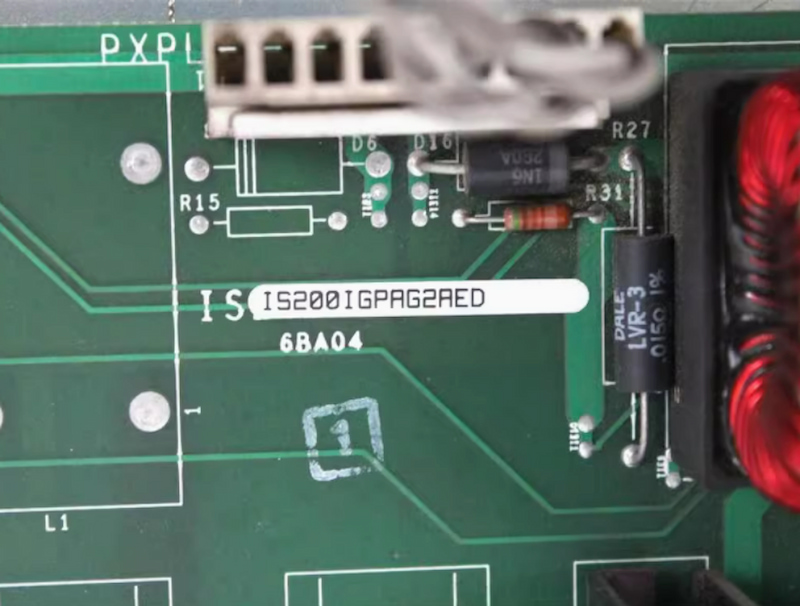

IS200IGPAG2AED Gate Driver Power Supply Board

Functional Description:

The IS200IGPAG2AED is a Gate Driver Power Supply Board, manufactured and designed by General Electric as part of the EX2100 Excitation Series used in the GE Speedtronic Control System.

The IS200IGPAG2AED Gate Driver Power Supply board (IGPA) furnishes the needed dc gate driver power for each Integrated Gate Commutated Thyristor (IGCT). The IGPA board is mounted directly on the IGCT. There is one IGPA board per IGCT.

There are two groups of IGPA boards:

· Group 1 boards have two power supplies incorporated on each baard.

· Group 2 boards have only one power supply.

The functions of the lGPA board are described in three categories.

· General

· Positive Supply

· Negative Supply

The general category defines the power and switching of the IGPA board. The positive and negative supply includes the output and control of the power supply board.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
