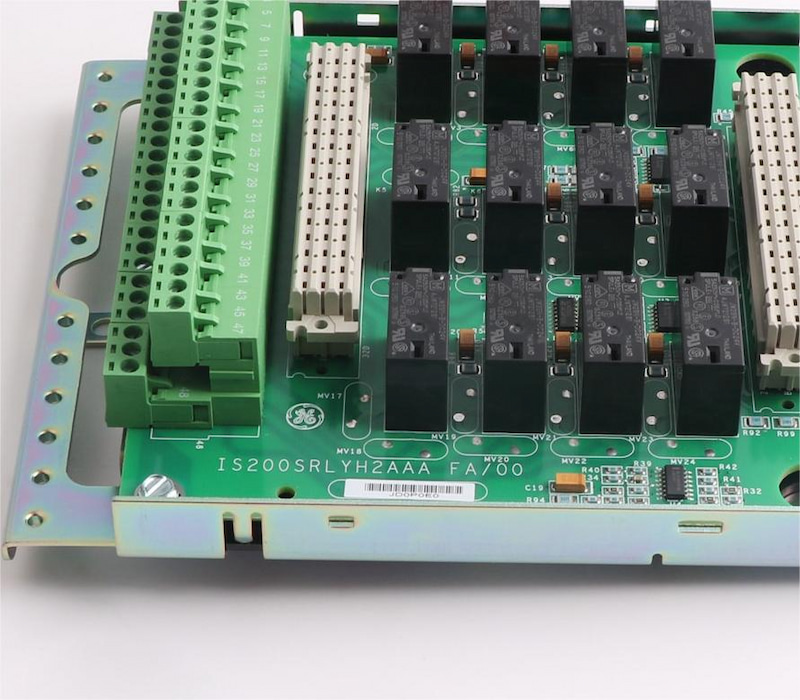

GE IS200SRLYH2A IS200SRLYH2AAA Simplex Relay Output Terminal Board

GE IS200SRLYH2A IS200SRLYH2AAA

The Simplex Relay Output (SRLY) terminal board is a simplex S-type terminal board accepting a PDOA /YDOA I/O pack and providing 12 form C relay output circuits through 48 customer terminals.

SRLY has the same physical size, customer terminal locations, and I/O pack mounting as other S-type terminal boards. There will be no components higher than an attached PDOA / YDOA I/O pack, permitting double stacking of terminal boards. Each relay on SRLY uses an isolated contact pair as position feedback to PDOA / YDOA.

Control Compatibility:

• IS200SRLYH1A has fixed Euro-style box terminals and no ability to accept option boards.

• IS200SRLYH2A has pluggable Euro-style box terminals and two connectors that accept a variety of different option boards. There are three option boards available that plug on to IS200SRLYH2A.

• IS200WROB turns SRLY into the functional equivalent of IS200TRLY1B. This option provides fused and sensed power distribution to the first six relays and dedicated power to the last relay.

• IS200WROF puts a single fuse in series with each relay common connection. Fuse voltage feedback is included.

• IS200WROG distributes power from an input connector to each relay through a single fuse. Fuse voltage feedback is included.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
