The IS200STCIH4A is a Simplex Contact Input Terminal Board designed for DIN-rail or flat mounting.
Brand :
GEPart number :
IS200STCIH4ADescription :
Simplex Contact Input Terminal BoardOrigin :
USACondition :
NewDimension :
159 mm x 102 mm x 32 mmWeight :
0.3 kgPayment :
Bank Transfer

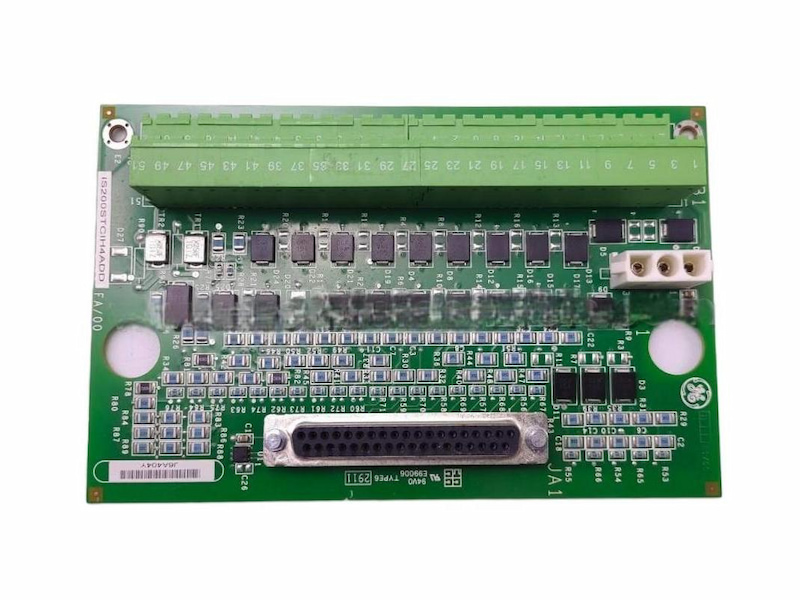

GE IS200STCIH4A Simplex Contact Input Terminal Board
Functional Description
The IS200STCIH4A Simplex Contact Input (STCI) terminal board is a compact contact input terminal board
designed for DIN-rail or flat mounting. The STCI board accepts 24 contact inputs that are supplied with a
nominal 24, 48, and 125 V dc excitation from an external source. The contact inputs have noise suppression
to protect against surge and high-frequency noise. The I/O pack plugs into the D-type connector and
communicates with the controller over Ethernet.
Installation
The STCI plus a plastic insulator mounts on a sheet metal carrier that then mounts on a DIN rail. Optionally,
the STCI plus insulator mounts on a sheet metal assembly that then bolts in a cabinet. The contact inputs are
wired directly to the terminal block, typically using #18 AWG wires. Shields should be terminated on a
separate bracket. 52 terminals inputs are available.

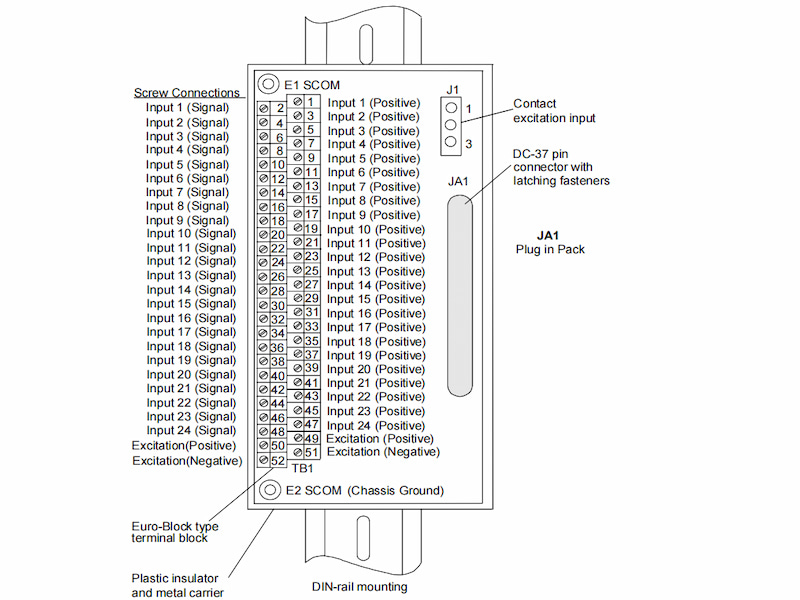

Mechanical Drawing
Technical Specifications
| Manufacturer | GE |
| Part Number | IS200STCIH4A |
| Ordering Information | IS200STCIH4A |
| Product Catalog | Mark VIe System |
| Description | Simplex Analog Output Terminal Board |
| Voltage | 48 Vdc |
| Current | 1 A |
| Dimensions | 159 mm x 102 mm x 32 mm |
| Weight | 0.3 kg |
