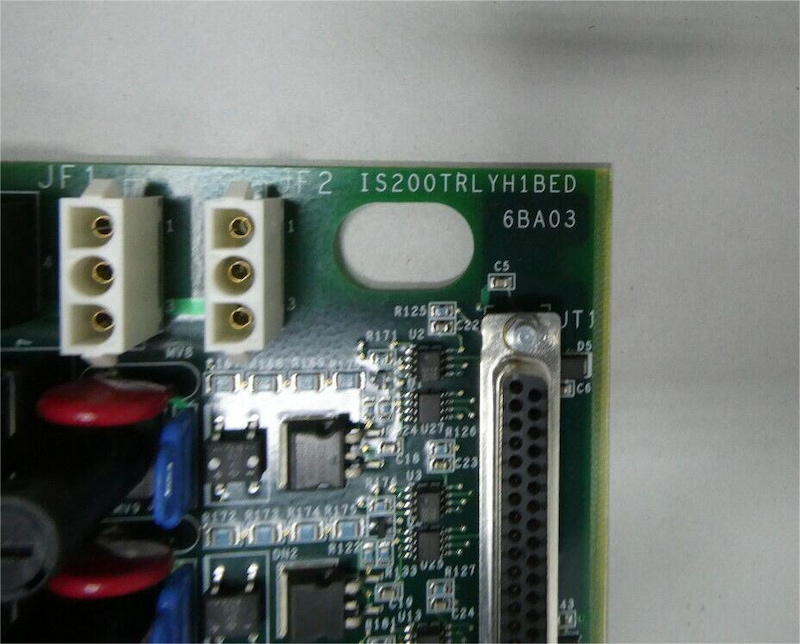

GE IS200TRLYH1BED Relay Output with Coil Sensing Terminal Board

IS200TRLYH1BED Relay Output with Coil Sensing Terminal Board

Functional Description

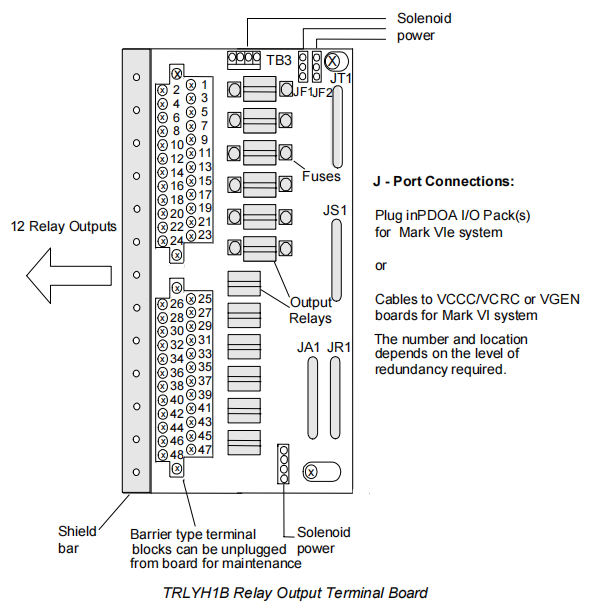

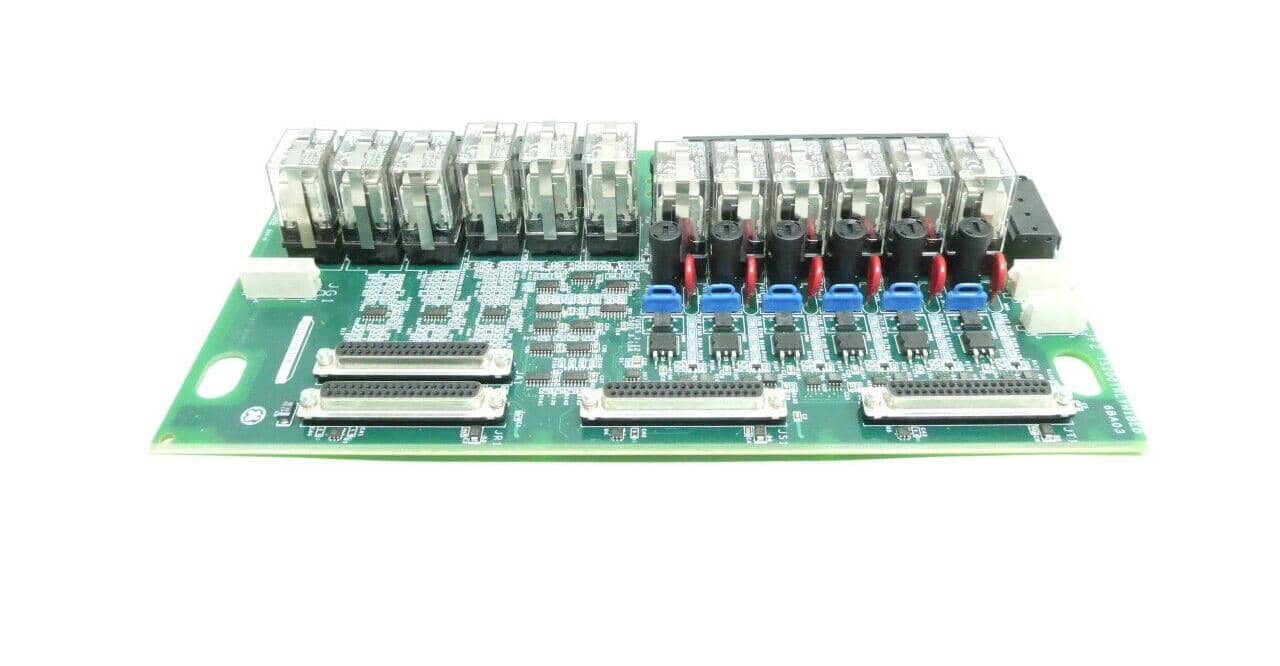

The Relay Output with coil sensing (TRLYH1B) terminal board holds 12 plug-in magnetic relays. The first six relay circuits configured by jumpers for either dry, Form-C contact outputs, or to drive external solenoids. A standard 125 V dc or 115/230 V ac source, or an optional 24 V dc source with individual jumper selectable fuses and on-board suppression, can be provided for field solenoid power. The next five relays (7-11) are unpowered isolated Form-C contacts. Output 12 is an isolated Form-C contact, used for special applications such as ignition transformers.

Mark VI Systems

In Mark* VI systems, TRLY is controlled by the VCCC, VCRC, or VGEN board and supports simplex and TMR applications. Cables with molded plugs connect the terminal board to the VME rack where the I/O boards are mounted. Connector JA1 is used on simplex systems, and connectors JR1, JS1, and JT1 are used for TMR systems.

Mark VIe Systems

In the Mark VIe system, the TRLY works with the PDOA I/O pack and supports simplex and TMR applications. PDOA plugs into the DC-37 pin connectors on the terminal board. Connector JA1 is used on simplex systems, and connectors JR1, JS1, and JT1 are used for TMR systems.

Technical Specifications
