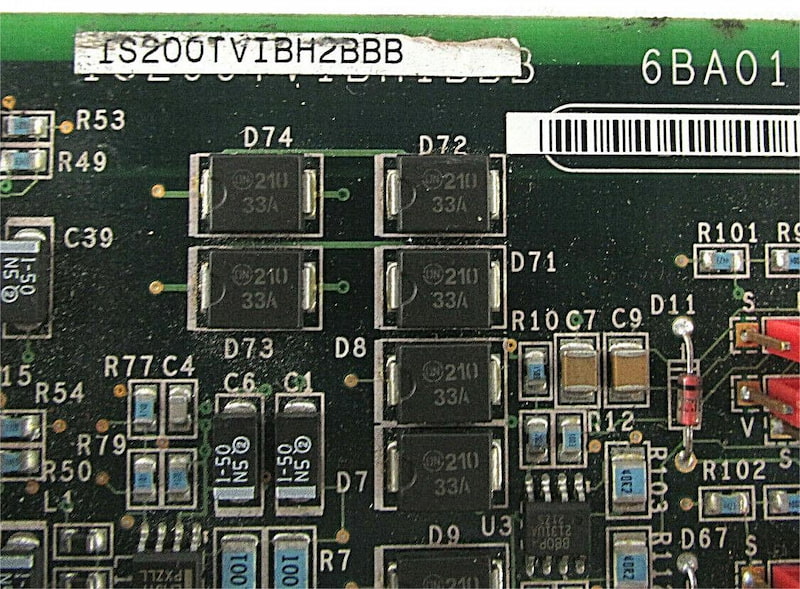

GE IS200TVIBH2B IS200TVIBH2BBB Vibration Input Terminal Board

IS200TVIBH2B IS200TVIBH2BBB Vibration Input Terminal Board

Functional Description

The Vibration Input (TVIB) terminal board accepts up to 14 vibration probes, two of which can be cabled directly to the VVIB board. VVIB processes and digitizes the displacement and velocity signals, which are then sent over the VME bus to the controller. The Mark* VI system uses Bently Nevada probes for shaft vibration monitoring. The following vibration probes are compatible with TVIB:

• Proximity

• Velocity

• Acceleration

• Seismic

• Phase

There are two types of TVIB terminal boards, H1A and H2A. The H2A type board has BNC connectors allowing portable vibration data gathering equipment to be plugged in for predictive maintenance purposes. Both types have connectors so that Bently Nevada vibration monitoring equipment can be permanently cabled to the terminal board to measure and analyze turbine vibration.

In the Mark VI system TVIB works with the VVIB processor and supports simplex and TMR applications. Two TVIBs connect to VVIB with two cables. In TMR systems, TVIB connects to three VVIB processors with three cables.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
