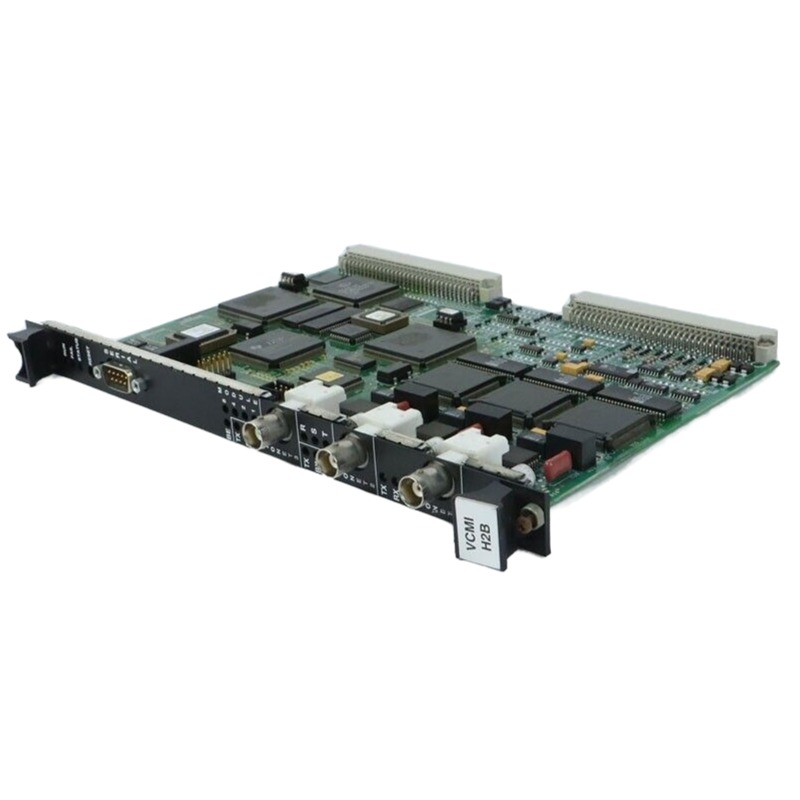

GE IS200VCMIH2BCC Bus Master Controller Board

GE IS200VCMIH2BCC Bus Master Controller Board

GE Boards & Turbine Control Mark VI IS200 IS200VCMIH2BCC- In Stock & Ready To Ship! Fast Worldwide Shipping & Competitive Pricing On All Of The Automation Parts You Need! IS200VCMIH2BCC is a bus master controller board developed by GE. It is a part of Mark VI control system.

  • Brand :

    GE
  • Part number :

    IS200VCMIH2BCC
  • Description :

    Bus Master Controller Board
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    28 cm x 20 cm x 3 cm
  • Weight :

    0.8 kg
  • Payment :

    Bank Transfer
Contact Us:



IS200VCMIH2BCC Bus Master Controller Board



Functional Description

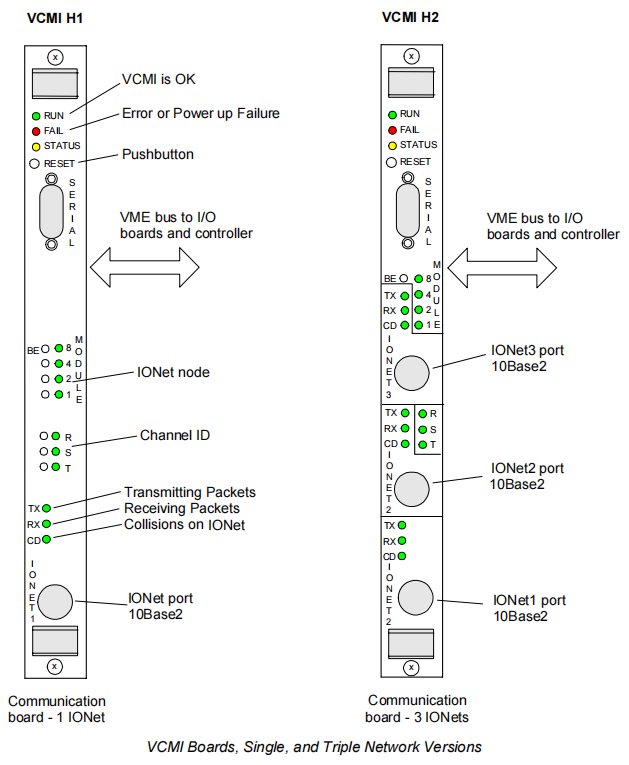

The VME Bus Master Controller (VCMI) board is the communication interface between the controller and the I/O boards, and the communication interface to the system control network, known as IONet. VCMI is also the VME bus master in the control and I/O racks, and manages the IDs for all the boards in the rack and their associated terminal boards. The two versions of the VCMI are shown in the following figure:

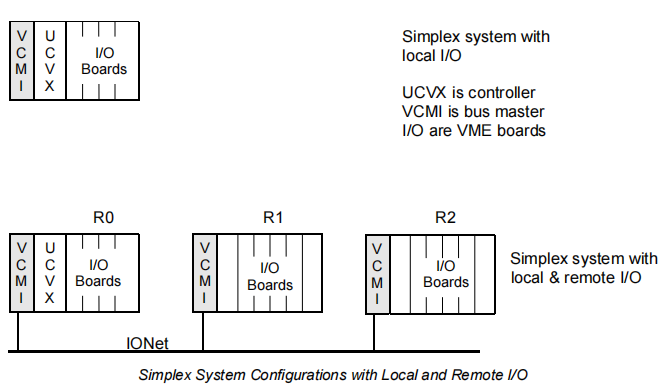

Multiple I/O racks can be connected to the IONet, each rack with its own VCMI board. The following figure shows three simplex system configurations with local and remote I/O using the VCMI.

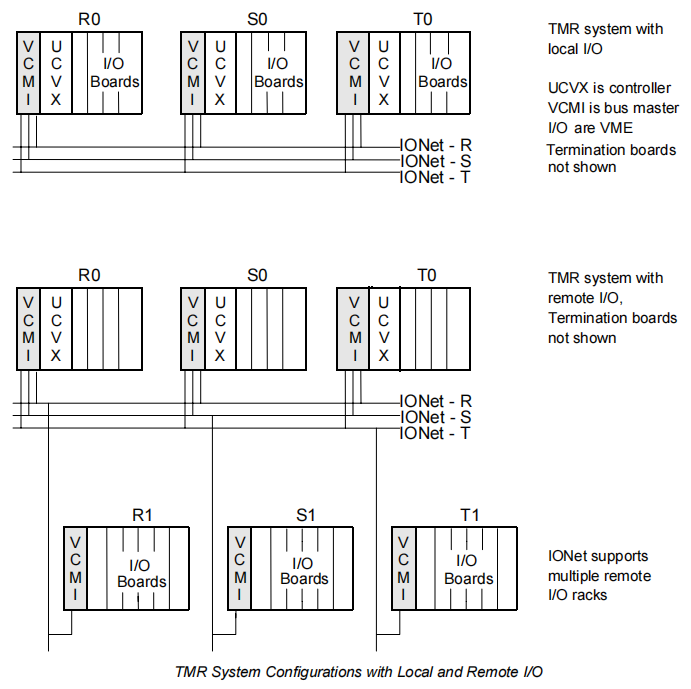

The following figure shows two sizes of triple modular redundant (TMR) systems. The first example is a small system where all the I/O is mounted in the VME control rack so no remote I/O racks are required. Each channel (R, S, T) has its own IONet, and the VCMI has three IONet ports.



The second example is a larger system with remote I/O racks. Each IONet supports multiple I/O racks, but only one rack is shown here. All I/O channels (R, S, T) are identical in terms of I/O boards and points.









Technical Specifications

Manufacturer GE

Part Number

IS200VCMIH2BCC
Ordering Information IS200VCMIH2B
Product Catalog Mark VI
Description Bus Master Controller Board
Voltage 28 V
Frame Rate
40 ms (25 Hz)
Dimensions 28 cm x 20 cm x 3 cm
Weight 0.8 kg



GE IS200VCMIH2BCC





100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
