GE IS2020RKPSG2A VME Rack Power Supply Module

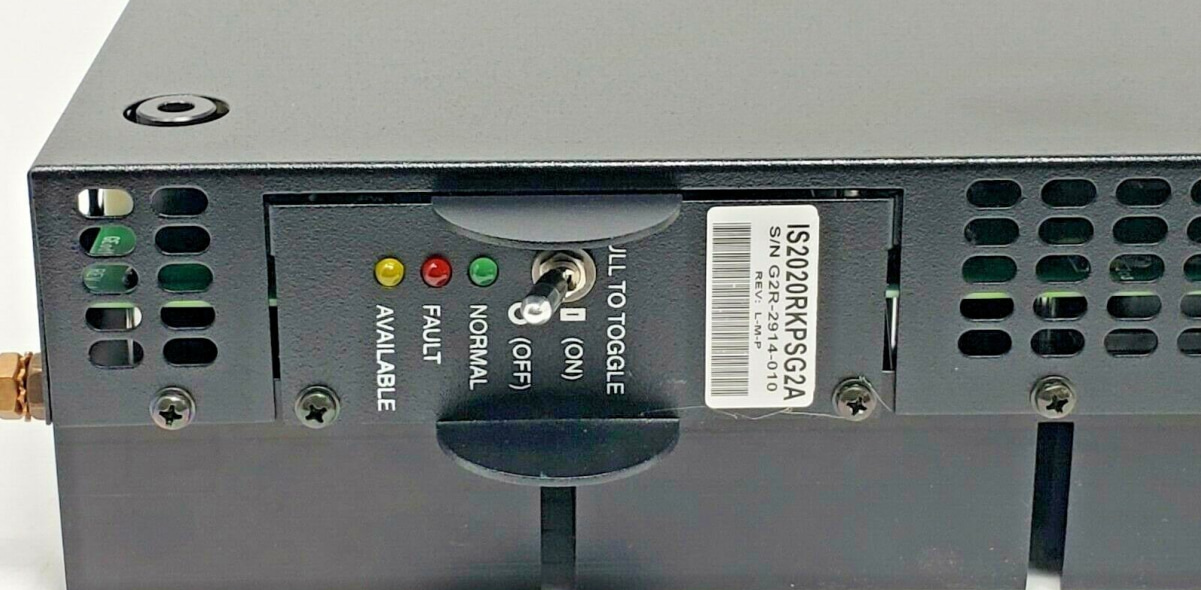

IS2020RKPSG2A VME Rack Power Supply Module

The IS2020RKPSG2A Mark* VI VME rack power supply mounts on the side of the VME control and interface racks. It supplies +5, ±12, ±15, and ±28 V dc to the VME backplane, and an optional 335 V dc output for powering flame detectors connected to TRPG.

Two supply input voltage selections are available. There is a 125 V dc input supply that is powered from a Power Distribution Module (PDM) and a low voltage version for 24 V dc operation.

Installation

The power supply is mounted to the right-hand side of the VME rack on a sheet metal bracket. The dc input, 28 V dc output, and 335 V dc output connections are at the bottom. The newer design also has a status connector on the bottom. Two connectors, PSA and PSB, at the top of the assembly mate with a cable harness carrying power to the VME rack.

Each of the five 28 V dc power modules supplies a section of the VME rack. These sections are labeled A, B, C, D, E, and F. The P28C output or PS28 at the bottom of the power supply can be used to power an external peripheral device. To do this the jumper plug shown on the bracket to the left of the rack must be moved from the Normal position to the Isolated position below.

The fan is only used when the controller is mounted in the rack. It is powered from the top connector on the same bracket, located on the left side of the rack.
