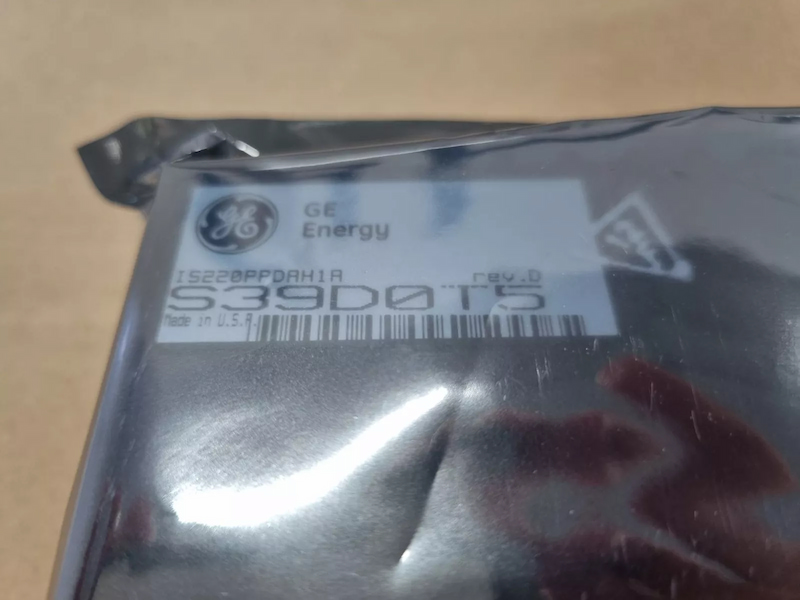

GE IS220PPDAH1A Power Distribution System Feedback I/O Pack

GE IS220PPDAH1A Power Distribution System Feedback I/O Pack

GE IS220PPDAH1A Power Distribution System Feedback · Item no:IS220PPDAH1A · brand: GE · price: $6000 · Delivery time: In Stock · Payment: T/T · shipping port:xiamen. $6,000.00. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.

  • Brand :

    GE
  • Part number :

    IS220PPDAH1A
  • Description :

    Power Distribution System Feedback I/O Pack
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    8.3 cm × 4.2 cm × 12.2 cm
  • Weight :

    340 g
  • Payment :

    Bank Transfer
Contact Us:



GE IS220PPDAH1A I/O Pack



The Power Distribution System Feedback (PPDA) I/O pack produces system feedback signals for power bus voltages, branch circuit status, ground fault detection, and bulk power supply health from the connected core distribution board(s). The I/O pack accepts inputs from up to a maximum of six power distribution boards or up to six sets of feedback signals. It conditions the board feedback signals and provides a dual redundant Ethernet interface to the Mark VIe or Mark VIeS controllers. The PPDA feedback is structured to be plug and play, using electronic IDs to determine the power distribution boards wired into it. This information is then used to populate the IONet output providing correct feedback from connected boards.



The PPDA I/O pack is hosted by the JPDS, JPDM, JPDG, or JPDC 28 V dc control power distribution board. Additional boards are connected using 50-pin ribbon cable jumpers that are wired pin 1 to pin 1. Each board contributes one feedback group to the PPDA. The PPDA I/O pack is compatible with the feedback signals created by the JPDB, JPDE, and JPDF.



Technical Specifications

Manufacturer GE
Part Number IS220PPDAH1A
Ordering Information IS220PPDAH1A
Product Catalog Mark VIe
Description Power Distribution System Feedback I/O Pack
Number of Channels
5 channels per feedback set, total 30 channels for six feedback sets
Input Converter Resolution
16 bit analog-to-digital converter
Power Consumption
5.3 W typical, 6.2 W worst case
Technology
Surface mount
Ambient Rating for Enclosure Design
-30 to 65ºC (-22 to 149 ºF)
Dimensions
8.3 cm × 4.2 cm × 12.2 cm
Weight
340 g



GE IS220PPDAH1A



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
