The IS400JPDDG1A is a dc power distribution board used in the General Electric Mark VIe Speedtronic Control System.
Brand :
GEPart number :
IS400JPDDG1ADescription :
Power Distribution Terminal BoardOrigin :
USACondition :
NewDimension :
23.4 cm x 10.8 cm x 6.5 cmWeight :
0.5 kgPayment :
Bank Transfer

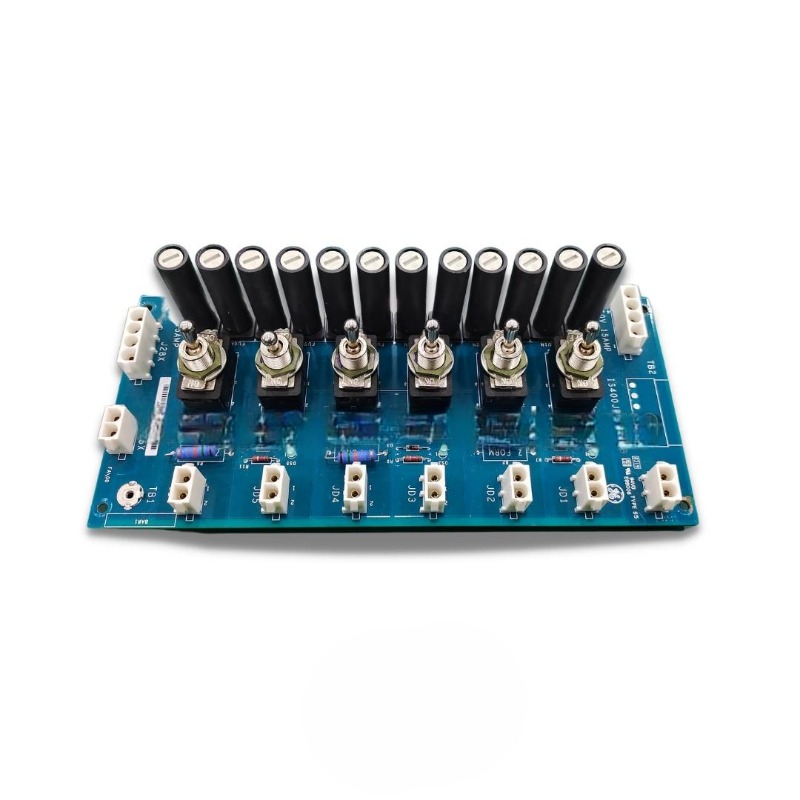

GE IS400JPDDG1A Power Distribution Terminal Board
Functional Description
The IS400JPDDG1A dc power distribution board provides dc power distribution, power isolation, and branch
circuit protection for control or I/O functions requiring 125 V dc, 48 V dc, or 24 V dc power.
Board version JPDDG1 provides fuses that are coordinated with the rating of the system wiring and
connectors. JPDDG2, G3, and G4 have fuse ratings coordinated for specific applications. Two different fuse
sizes are provided to accommodate local fuse preferences.
Installation

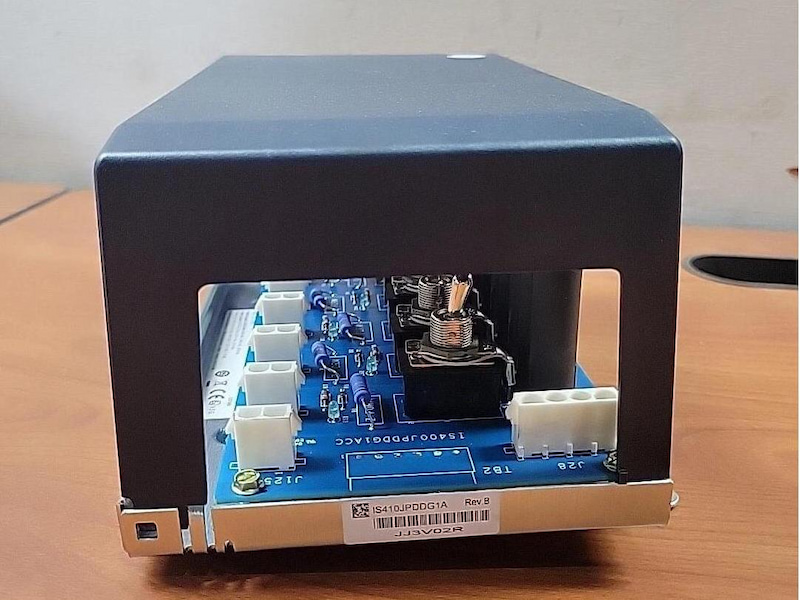

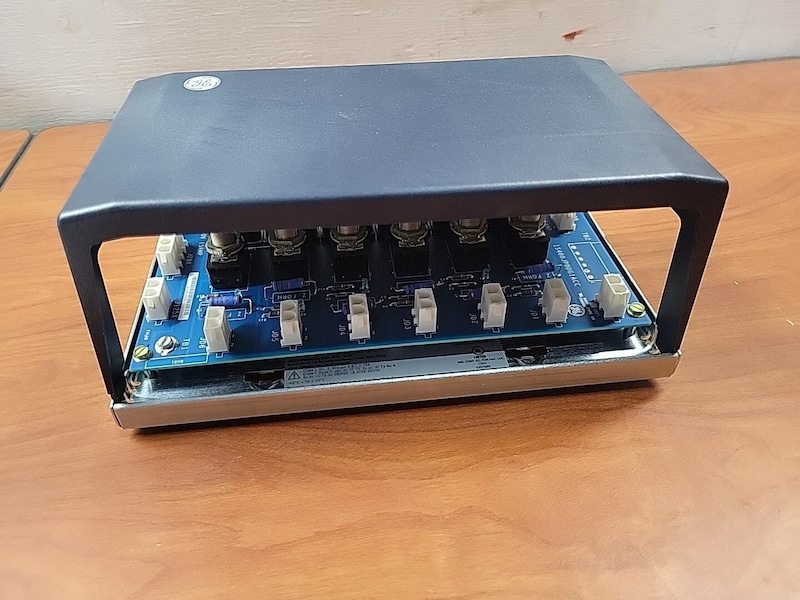

JPDD is held in a plastic holder, which mounts on a vertical DIN-rail. When installing the JPDD, it is important
to provide a ground lead from TB1 to the system ground. This creates a ground path for the metal switch
bodies.
Power input can be 24 V dc, 48 V dc, or 125 V dc, but only one voltage level at any given time. Do not mix
voltages. For cable destinations, refer to the circuit diagram. TB1 should be connected to system ground.
Technical Specifications
| Manufacturer | GE |
| Part Number | IS400JPDDG1A |
| Ordering Information | IS400JPDDG1A |
| Product Catalog | Mark VIe Speedtronic Control System |
| Description | Power Distribution Terminal Board |
| Voltage | 24 Vdc |
| Current | 1A |
| Dimensions | 23.4 cm x 10.8 cm x 6.5 cm |
| Weight | 0.5 kg |
