The Honeywell 10100/2/1 is a horizontal bus driver module that is part of the Honeywell Experion PKS DCS system. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.
Brand :
HoneywellPart number :
10100/2/1Description :
Horizontal Bus Driver ModuleOrigin :
USACondition :
NewDimension :
20.3 mm x 15.2 mm x 2.5 mmWeight :
0.2 kgPayment :
Bank Transfer

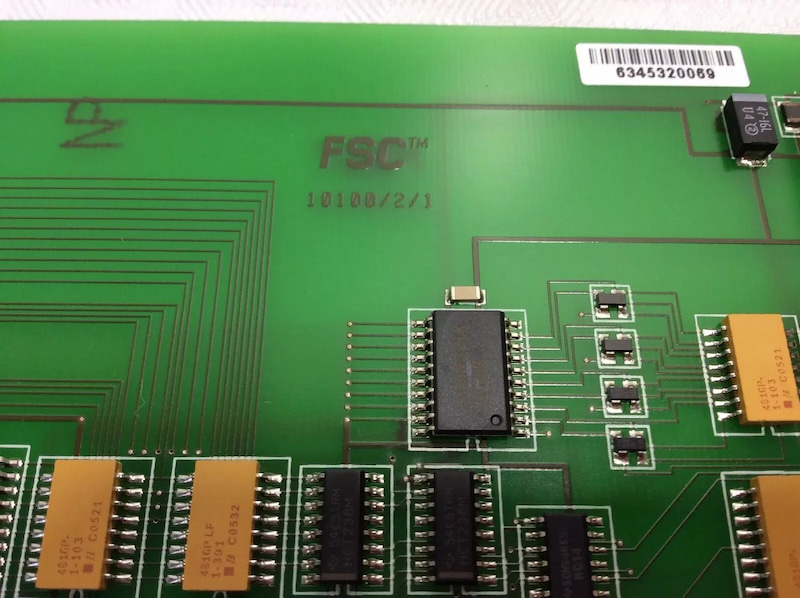

10100/2/1 Horizontal bus driver (HBD)
The horizontal bus driver (HBD) module is a basic module which is installed in the I/O racks.
The horizontal bus driver consists of two parts:
• electronic part (10100/2/1), and
• a A1, A21 or A22 flatcable.
The vertical bus flatcable between the Central Part and the I/O rack is connected to the HBD module via the back connector CN1.
The flatcable which extends from the front of the module connects the HBD module to the horizontal bus above the I/O rack.
The address selection lines of the I/O modules terminate on the back of the horizontal bus(es) via a flatcable on connector CN3.
The HBDs are used as follows:
− 10100/2/1 with flatcable A1 used for non-redundant I/O
− 10100/2/1 with flatcable A21 used for redundant I/O (one rack per HBD)
− 10100/2/1 with flatcable A22 used for redundant I/O (two racks per HBD)
The HBD may be replaced with the power switched on, but the Central Part will shut down if the HBD is safety-related.
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | 10100/2/1 |
| Ordering Information | 10100/2/1 |
| Product Catalog | FSC system |
| Description | Horizontal Bus Driver Module |
| Voltage | 5 Vdc |
| Current | 65 mA |
| Dimensions | 20.3 mm x 15.2 mm x 2.5 mm |
| Weight | 0.2 kg |
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS.
Payment : 100% advance payment bank wire transfer.
Returns : Quality problems can be replaced within 15 working days from the date of receipt of the product, repair services can be provided within 1 year.
Please contact us to get the product manual.
