The 8C-PAIN01 is a 16-channel single-ended high-level analog input module (without HART), supporting 4-20 mA inputs and optional redundancy.
Brand :
HoneywellPart number :
8C-PAIN01Description :
Analog InputOrigin :
USACondition :
NewDimension :
63.5 mm x 124.46 mm x 307.34 mmWeight :
0.4 kgPayment :
Bank Transfer

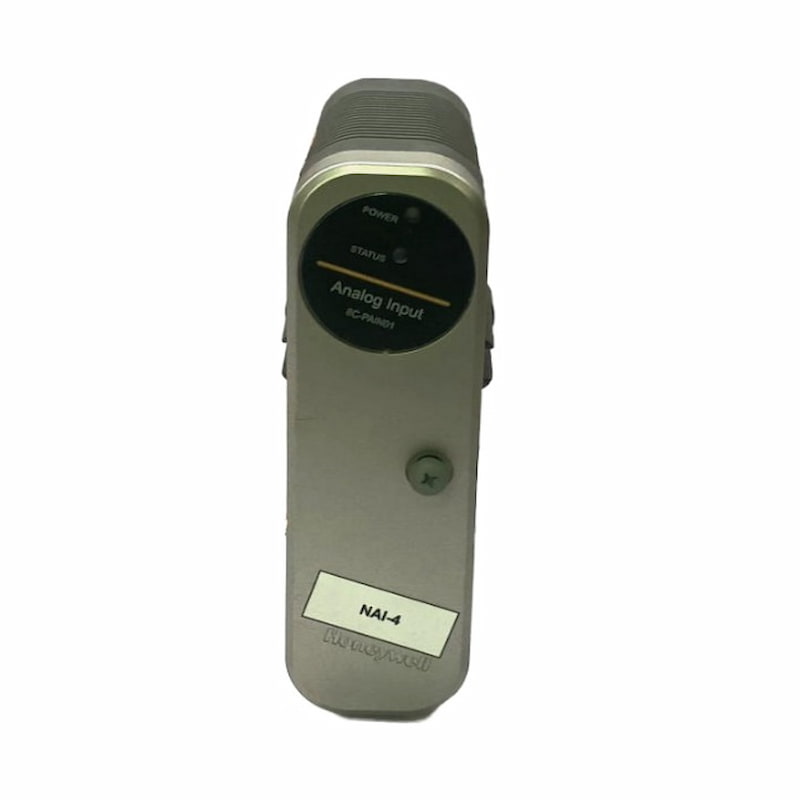

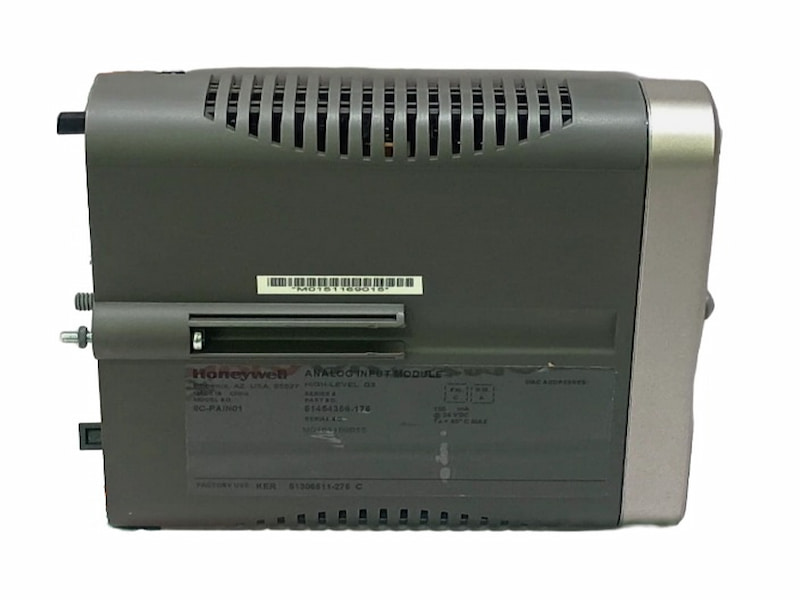

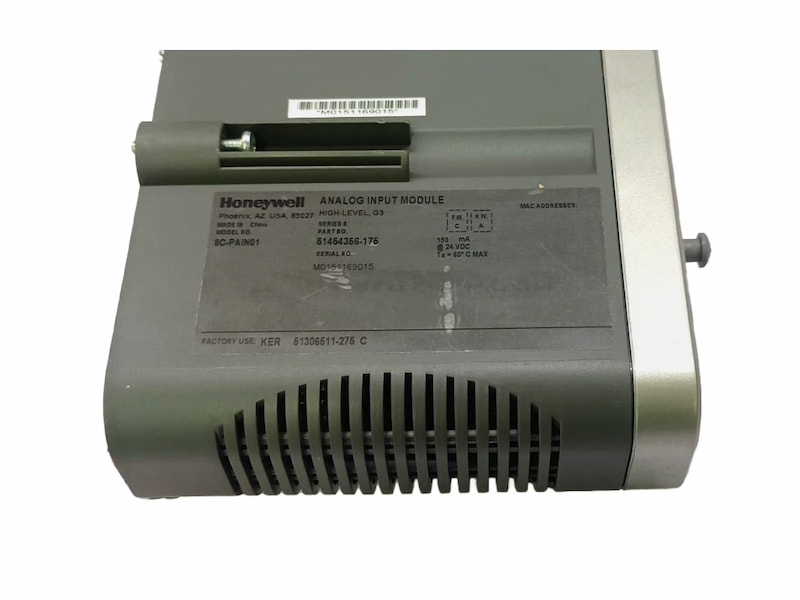

Honeywell 8C-PAIN01 Analog Input
Function
The Analog Input Module accepts high level current inputs from transmitters and sensing devices.
Features
Extensive self diagnostics
Optional redundancy
Supplies non-incendive field power (No external user supplied field power)
Fast loop scan
Non-Incendive Power
Non-incendive power is provided with no external marshalling to support the 4-20mA loop and still provide for channel power protection. This protection supports the Division 2 hazardous protection non-incendive power rating.
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | 8C-PAIN01 |
| Ordering Information | 8C-PAIN01 |
| Product Catalog | Series 8 |
| Description | Analog Input |
| Voltage | 24 VDC |
| Current | 110 mA |
| Dimensions | 63.5 mm x 124.46 mm x 307.34 mm |
| Weight | 0.4 kg |
