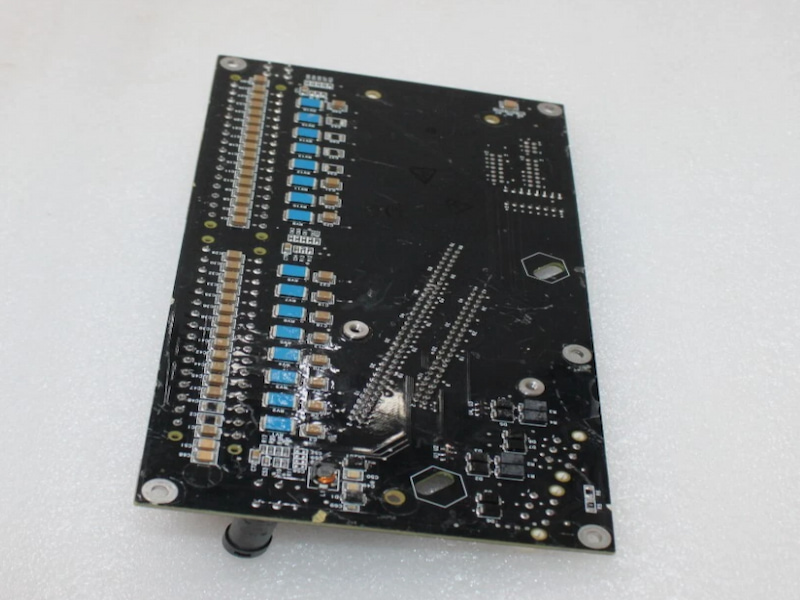

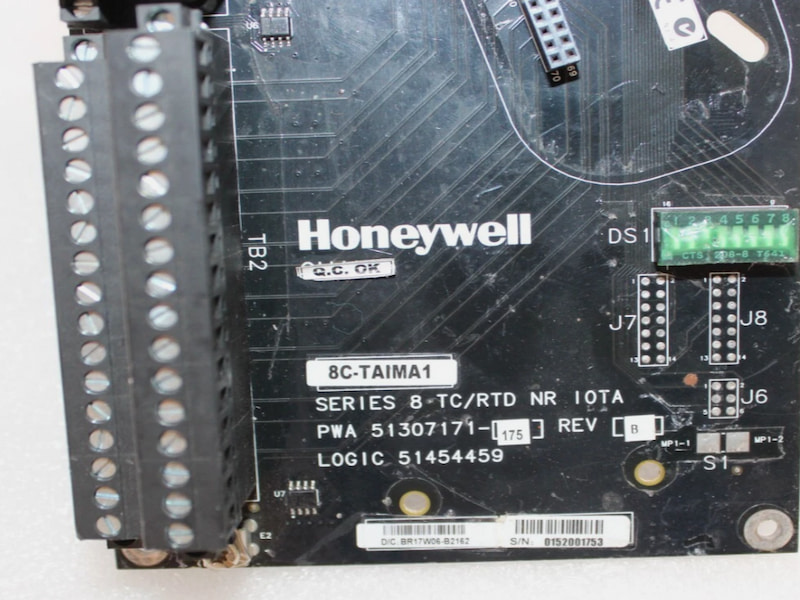

The 8C-TAIMA1 is a non-redundant, conformal-coated IOTA (Input Output Termination Assembly) for Honeywell Experion Series 8 systems, supporting the 8C-PAIMA1 low-level analog (temperature) input module.
Brand :
HoneywellPart number :
8C-TAIMA1Description :
IOTA ModulesOrigin :
USACondition :
NewDimension :
220 mm x 120 mm x 120mmWeight :
0.4 kgPayment :
Bank Transfer
Honeywell 8C-TAIMA1 IOTA Modules
Description
IOTA Modules：8C-TAIMA1
Input Type：Thermocouple and / or RTD
Voltage Rating：24 VDC
Module current rating：120m A
Input Channels：16 fully-isolated channel-to-channel, channel-to-IOL, and channel-topower supply common in 16 channel increments
Input scan rate：1 second fixed by IOM, (up to 16 channels/sec max.)
Channel bandwidth：0 to 4.7 Hz (-3 dB)
Nominal input range (TC only)：-20 to +100 millivolts
Maximum normal mode continuous input non-damaging (any thermocouple type configured)：
-10 to +10 volts (TC)
-1 to +2 Volts @ 100 milliamps (RTD)
Gain error (-20 to +100 millivolt range)：0.050% full scale max
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | 8C-TAIMA1 |
| Ordering Information | 8C-TAIMA1 |
| Product Catalog | Series 8 |
| Description | IOTA Modules |
| Voltage | 24 VDC |
| Current | 110 mA |
| Dimensions | 220 mm x 120 mm x 120mm |
| Weight | 0.4 kg |
