The 900A16-0001 is a 16-channel analog input module for Honeywell ControlEdge HC900 systems.
Brand :
HoneywellPart number :
900A16-0001Description :
High Level Analog Input ModuleOrigin :
USACondition :
NewDimension :
137 mm x 35.6 mm x 120mmWeight :
0.4 kgPayment :
Bank Transfer

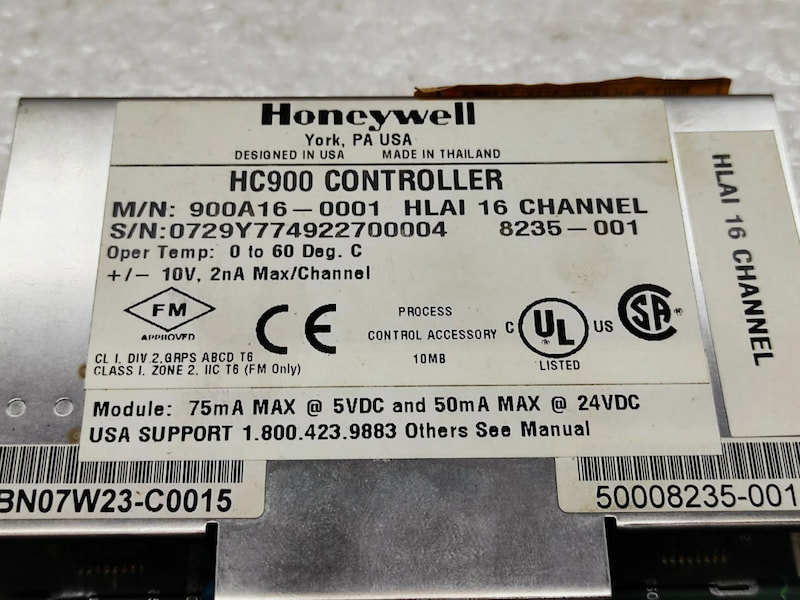

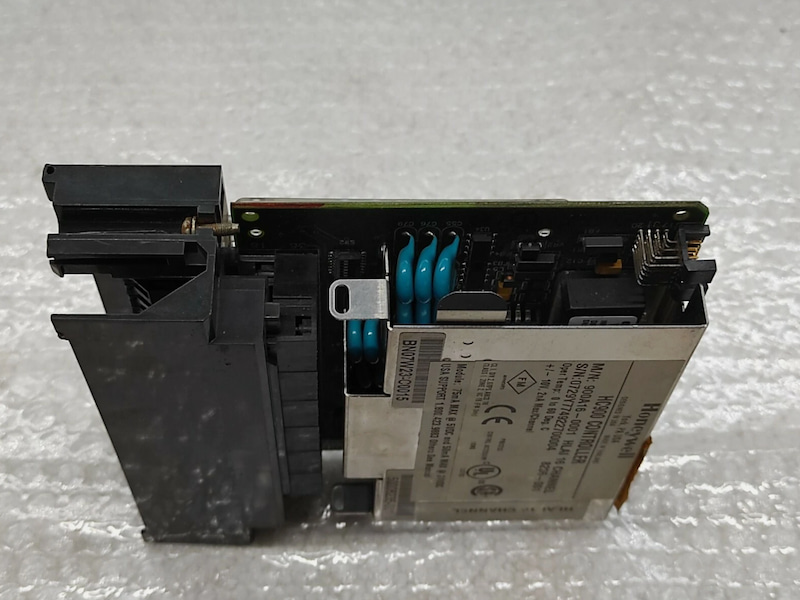

Honeywell 900A16-0001 High Level Analog Input Module
Description
The High-Level Analog Input module supports up to 16 user-configurable inputs on a per point basis for Voltage or current. Point-to-point isolation and back-plane isolation are provided. Modules perform analog to digital conversion in synchronization with CPU control execution, eliminating data interchange latency. All analog input modules are processed in parallel, eliminating scan time increases as modules are added.
A green blinking status LED on the module indicates when the module is being scanned. An amber blinking status LED when input channels are forced and a red status LED when module diagnostics exist. A userselectable failsafe value is supported on a per channel basis.
The module supports field calibration. Each of the inputs has its own integrated 250-ohm shunt resistor which is activated through DIP switches.
Requires Euro style 36-terminal terminal block.
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | 900A16-0001 |
| Ordering Information | 900A16-0001 |
| Product Catalog | ControlEdge™ HC900 |
| Description | High Level Analog Input Module |
| Voltage | 24 VDC |
| Current | 110 mA |
| Dimensions | 137 mm x 35.6 mm x 120mm |
| Weight | 0.4 kg |
