The 900P01-0001 is a 60W power supply module for Honeywell ControlEdge HC900 systems.
Brand :
HoneywellPart number :
900P01-0001Description :
Power SupplyOrigin :
USACondition :
NewDimension :
137 mm x 35.6 mm x 120mmWeight :
0.8 kgPayment :
Bank Transfer

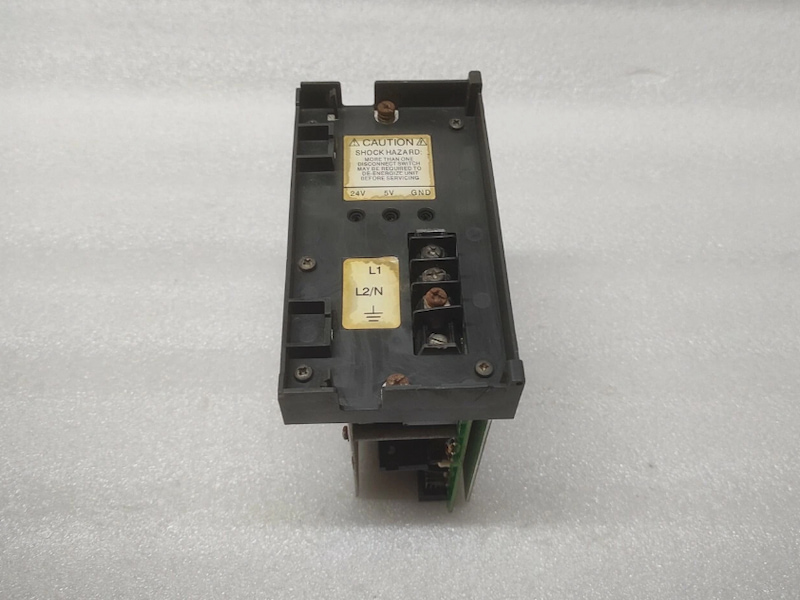

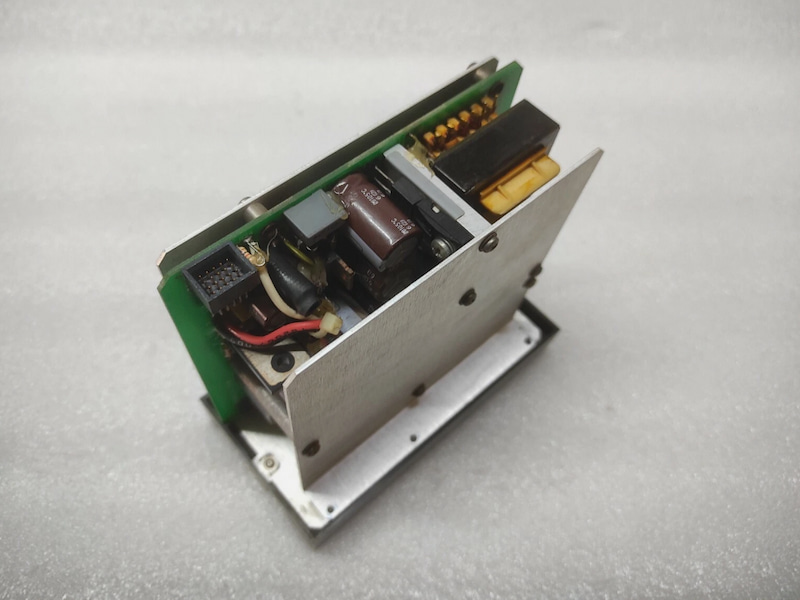

Honeywell 900P01-0001 Power Supply
Description
The P01 power supply provides 5VDC and 24VDC to satisfy the power requirements of a rack with a controller and local I/O, a rack with a scanner, and remote I/O. The 60-watt capacity allows for almost any mix of I/O modules in one rack. See Module Specifications starting on page 6. A tool-secured door covers the high voltage connections; test jacks behind the door allow for quick verification of proper operation. An internal nonreplaceable fuse limits supply current under certain fault conditions.
Wiring：Screw type terminals, Wire gauge #12-22 AWG
Operating Voltage：Universal Power, 90-264VAC, 47-63 Hz
Input Rating：130VA
Output Rating：60W
In Rush Current：7 Amps peak-to-peak for 150 ms at 240 VAC
Fuse：Internal, non-replaceable
Test jacks：5 volt, 24 Volt
Hold up time：20milliseconds @ 115VAC, 60HZ maximum Load
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | 900P01-0001 |
| Ordering Information | 900P01-0001 |
| Product Catalog | ControlEdge™ HC900 |
| Description | Power Supply |
| Voltage | 24 VDC |
| Current | 110 mA |
| Dimensions | 137 mm x 72.6 mm x 120mm |
| Weight | 0.8 kg |
