The CC-PAIM01 is a low-level analog (temperature) input multiplexer module for Honeywell Experion Series-C systems, supporting up to 64 TC/RTD channels via PMIO FTAs.
Brand :
HoneywellPart number :
CC-PAIM01Description :
Low Level Analog Input MuxOrigin :
USACondition :
NewDimension :
63.5 mm x 124.46 mm x 307.34 mmWeight :
0.4 kgPayment :
Bank Transfer

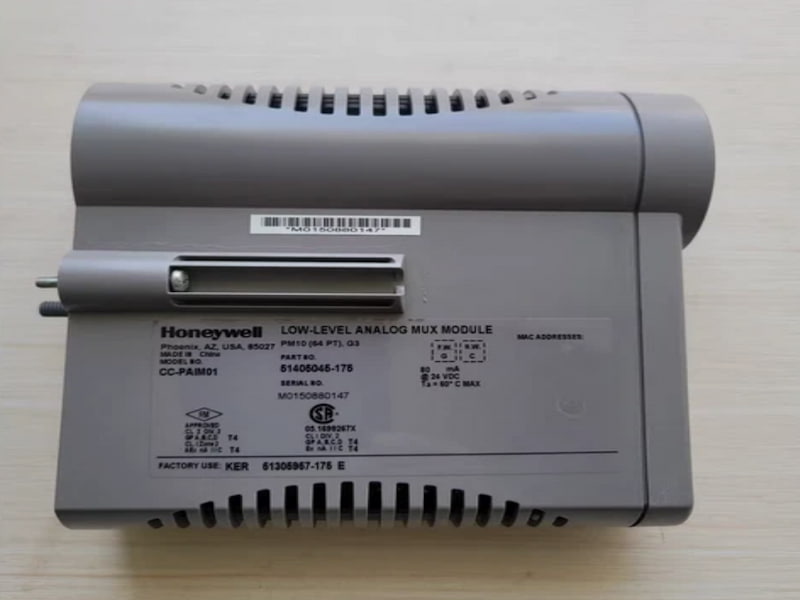

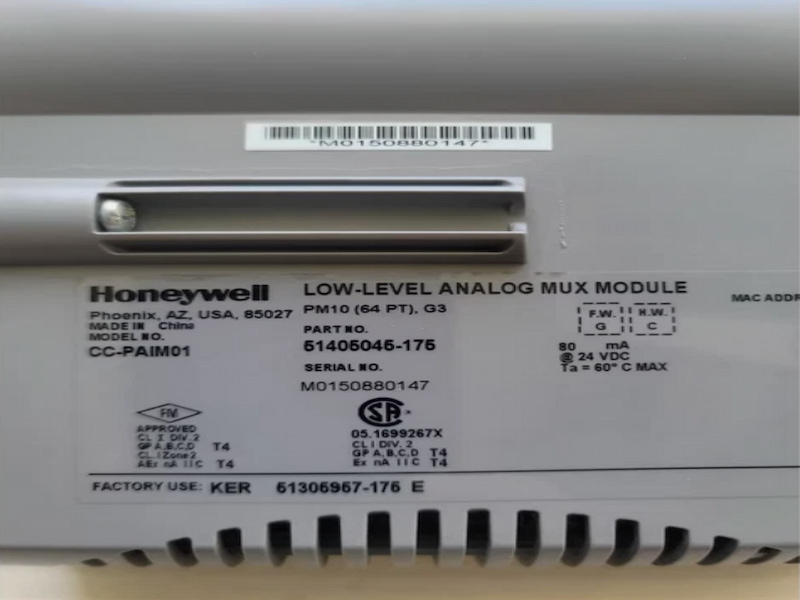

Honeywell CC-PAIM01 Low Level Analog Input Mux
Function Description
The LLMUX IOP module supports up to 64 channels of temperature inputs. Low level inputs use the Honeywell PMIO LLMUX FTA. Each FTA supports 16 channels. Two types of LLMUX FTA are supported. One provides 16 RTD inputs. The other provides 16 TC or MV inputs. Any combination of FTAs may be used to provide the mix of TC, mV or RTD points required.
Features
TC and RTD operation
Remote cold junction capability
1 Second PV scanning with OTD protection
Configurable OTD protection (See below)
Temperature points can be added in 16 pointincrements
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | CC-PAIM01 |
| Ordering Information | CC-PAIM01 |
| Product Catalog | Experion® PKS C300 |
| Description | Low Level Analog Input Mux |
| Voltage | 24 vdc |
| Current | 15 A |
| Dimensions | 63.5 mm x 124.46 mm x 307.34 mm |
| Weight | 0.4 kg |
