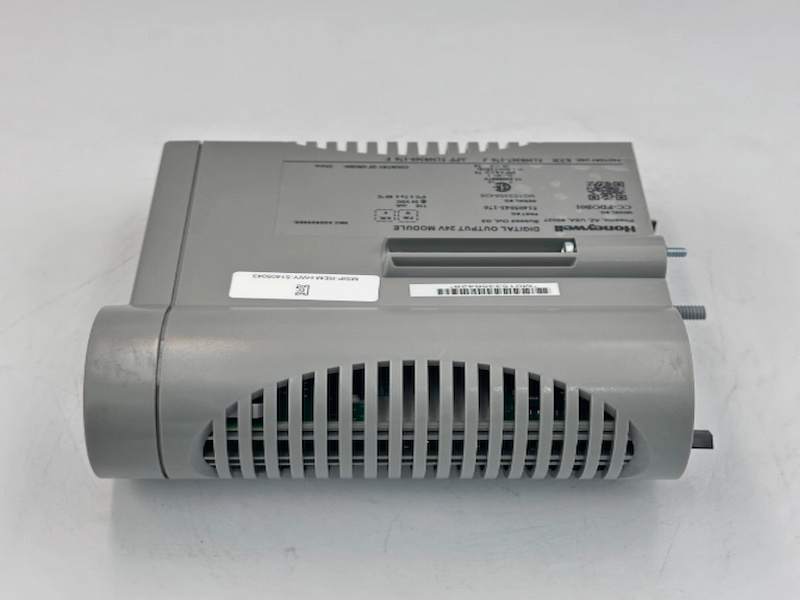

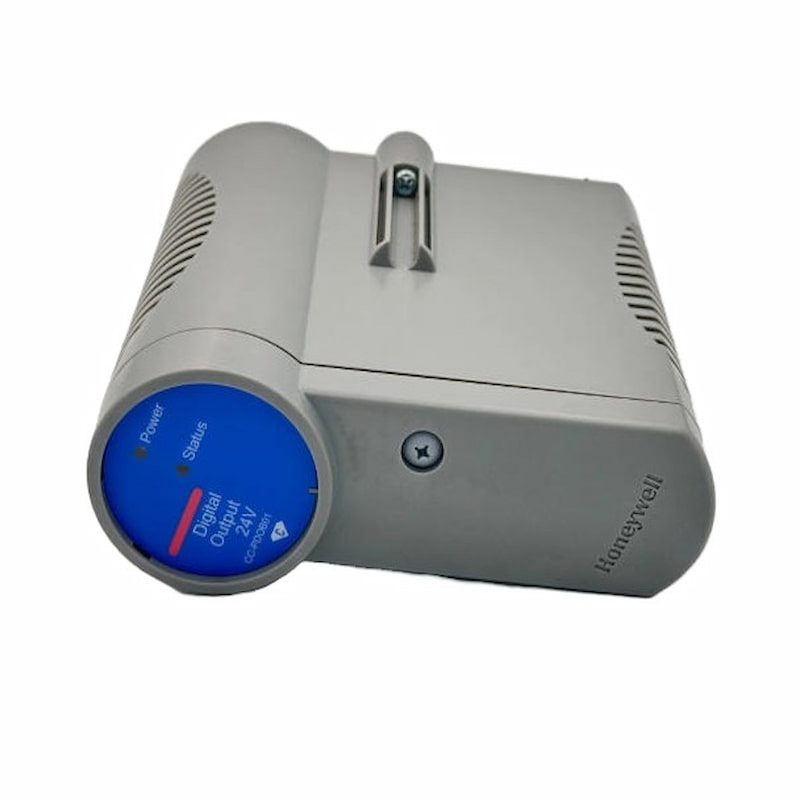

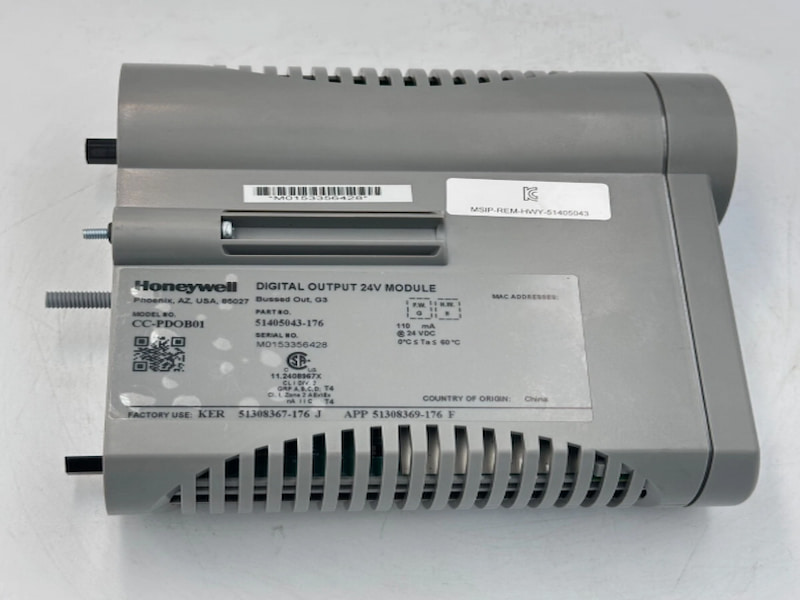

Honeywell CC-PDOB01 Digital Output - Bussed 24VDC

Honeywell CC-PDOB01 Digital Output - Bussed 24VDC

Function Description

The Digital Output bussed 24VDC (DO24V) module provides reliable 24V digital output signals to control other process equipment as well as solenoid valves and interposing relays. The DO24V can support high energy outputs to reduce the number of external components in the output loop.

Features

Extensive internal diagnostics to ensure data integrity

Optional redundancy

Direct/Reverse output support

Safe-state (FAILOPT) behaviors

“Fuse-less” short circuit protection

Latched, pulsed or pulse-width modulated output (per channel)

Galvanic isolation

Bussed 24VDC DO

The Digital Output Bussed 24VDC has provisions for both internal and external field power excitation. As a bussed output device, all of the outputs share a common return (ground). All outputs get their power from the same source, which can be either the system power supply or an externally connected 24V power supply. When selection is from an external source, outputs can be galvanically isolated from the Series C power system.

Fuse-less Short Circuit Protection

This unique feature allows a short circuit to exist without blowing any fuses. When a particular channel is shorted, internal circuits detect this and remove power to the field connection. The channel remains de-energized until the short circuit is repaired.

FAILOPT

Series C DO module will support FAILOPT parameter on a per channel basis. The output can be directed by configuration to either HOLD THE LAST VALUE, or SHED to a SAFE VALUE. The safe value can be configured by the user.

Technical Specifications
