The CC-TAIX11 is a redundant 12-inch analog input (AI) IOTA for Honeywell Experion Series-C systems, supporting AI modules like CC-PAIH01/PAIX01.
Brand :
HoneywellPart number :
CC-TAIX11Description :
Analog Input IOTA RedundantOrigin :
USACondition :
NewDimension :
63.5 mm x 124.46 mm x 307.34 mmWeight :
0.4 kgPayment :
Bank Transfer

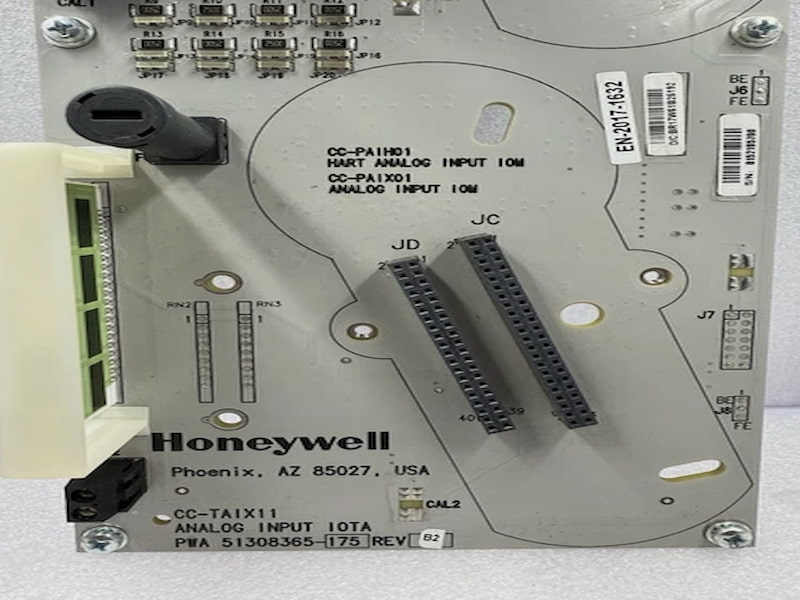

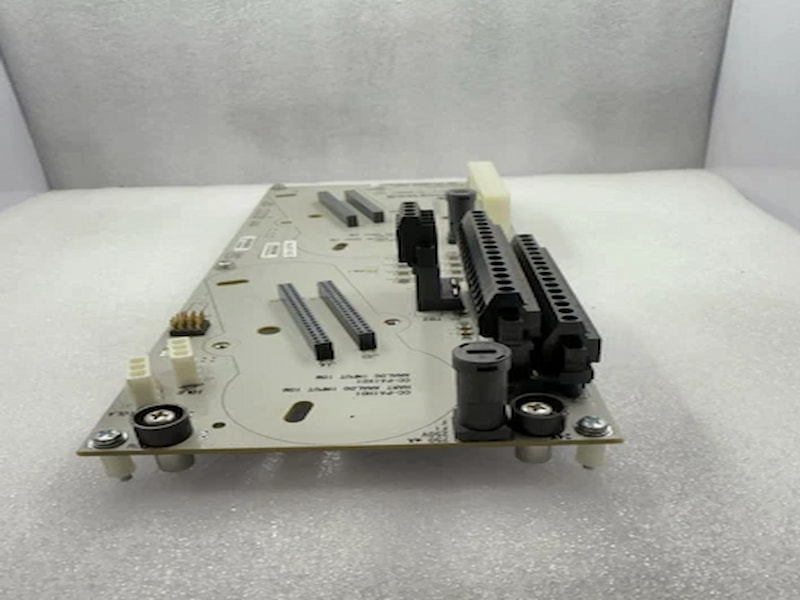

Honeywell CC-TAIX11 Analog Input IOTA Redundant
Description
Product Type: Analog Input lOTA Redundant
Input Type: Voltage, current (2-wire or self-powered transmitters)Input Channels: 16 Channels (12 Single Ended / 4 Differential)Common Mode Rejection Ratio (dc to 60 Hz): 70 dB
Common Mode Voltage (dc to 60 Hz): -6 to +5 V peak
A/D Converter Resolution: 16 bits
Input Range 1: 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)
Normal Mode Rejection Ratio (at 60 Hz): 19 dB
Normal Mode Filter Response: Single-pole RC, -3 dB @ 6.5 HzMaximum Normal Mode Input (differential inputs, no damage): ±30 Volts
Crosstalk (dc to 60 Hz, channel-to-channel): -60 dB
Input lmpedance (voltage inputs): > 10 M powered
Input Scan Rate: 50 ms
Hardware Accuracy (@ CMV = 0 V): +0.075% of full-scale (23.5°+2°C), +0.15% of full-scale (0 to 60°C)
Transmiter field Power Conditioning: individually Protected Current limiting Circuits for Class 1, Div 2 non-incendive interfacing. No fusingrequired
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | CC-TAIX11 |
| Ordering Information | CC-TAIX11 |
| Product Catalog | Experion® PKS C300 |
| Description | Analog Input IOTA Redundant |
| Voltage | 24 vdc |
| Current | 4-20 mA |
| Dimensions | 63.5 mm x 124.46 mm x 307.34 mm |
| Weight | 0.4 kg |
