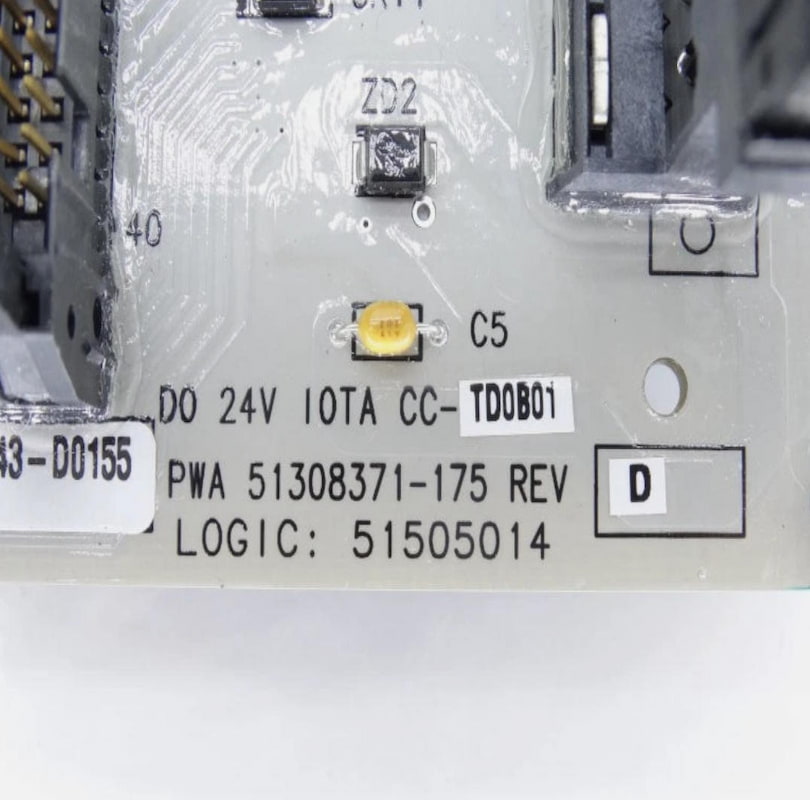

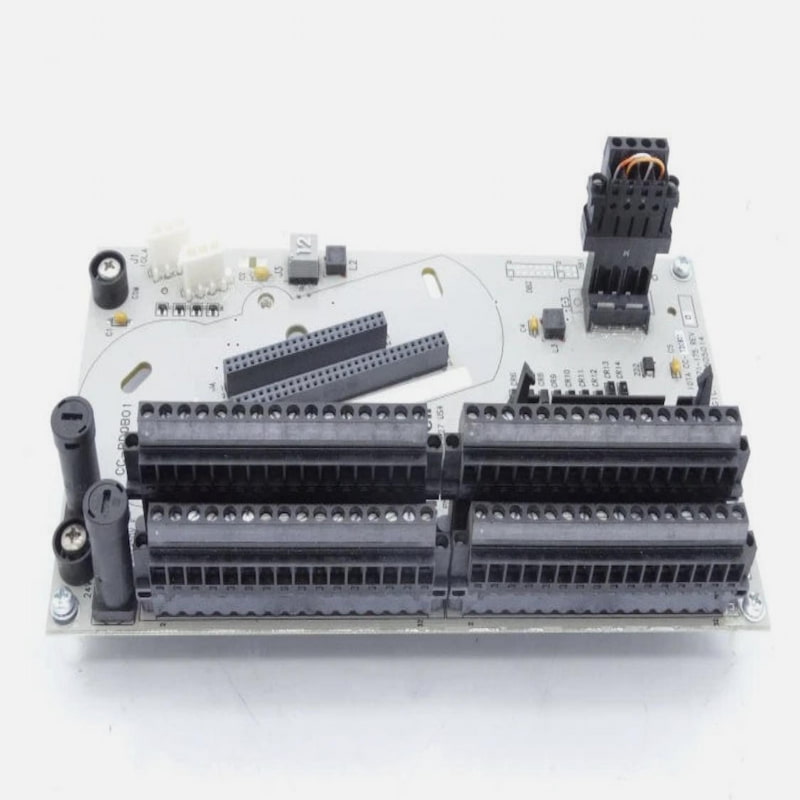

Honeywell CC-TDOB01 Digital Output Module

Honeywell CC-TDOB01 Digital Output Module

Description

The Digital Output bussed 24VDC (DO24V) module provides reliable 24V digital output signals to control other process equipment as well as solenoid valves and interposing relays. The DO24V can support high energy outputs to reduce the number of external components in the output loop.

The Digital Output Bussed 24VDC has provisions for both internal and external field power excitation. As a bussed output device, all of the outputs share a common return (ground). All outputs get their power from the same source, which can be either the system power supply or an externally connected 24V power supply. When selection is from an external source, outputs can be galvanically isolated from the Series C power system.

This unique feature allows a short circuit to exist without blowing any fuses. When a particular channel is shorted, internal circuits detect this and remove power to the field connection. The channel remains de-energized until the short circuit is repaired.

Series C DO module will support FAILOPT parameter on a per channel basis. The output can be directed by configuration to either HOLD THE LAST VALUE, or SHED to a SAFE VALUE. The safe value can be configured by the user.

 Features

• Extensive internal diagnostics to ensure data integrity

• Optional redundancy

• Direct/Reverse output support

• Safe-state (FAILOPT) behaviors

• “Fuse-less” short circuit protection

• Latched, pulsed or pulse-width modulated output (per channel)

• Galvanic isolation
