The FS-PDC-IOEP1A is a 33cm power distribution cable for Honeywell Safety Manager systems, transferring power from MB-0001 rails to I/O chassis.
Brand :
HoneywellPart number :
FS-PDC-IOEP1ADescription :
Power distribution cable set IO chassisOrigin :
USACondition :
NewDimension :
63.5 mm x 124.46 mm x 307.34 mmWeight :
0.4 kgPayment :
Bank Transfer

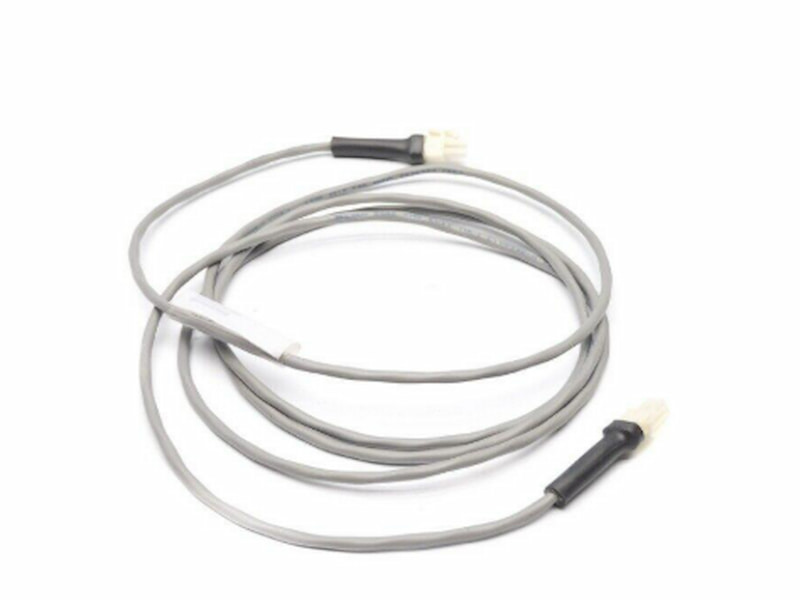

Honeywell FS-PDC-IOEP1A Power distribution cable set IO chassis
Description
The PDC-IOSET power distribution cables of the IO chassis transfer 24 V DC, 48 V DC or 110Vdc from mains power rails of type MB-0001 to the IO chassis. The below figure shows the position of the IP1, EP1, EP2, and EP3 connector on the back of an IO chassis.
Type number: FS-PDC-IOSET
Approvals: UL, CSA; FM pending
Type: CC 600 World 4 × 2.5 mm²
Length:
33 cm (FS-PDC-IOEP1a)
41 cm (FS-PDC-IOEP2a)
49 cm (FS-PDC-IOEP3a)
57 cm (FS-PDC-IOIP1a)
Bus bar side: 2 pole Squeeze To Release type: D-TAB-200-STR
IO chassis side: FM5W5 S (female) housing: low profile, 90°
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | FS-PDC-IOEP1A |
| Ordering Information | FS-PDC-IOEP1A |
| Product Catalog | Experion® PKS C300 |
| Description | Power distribution cable set IO chassis |
| Voltage | 5 vdc |
| Current | 35 mA |
| Dimensions | 63.5 mm x 124.46 mm x 307.34 mm |
| Weight | 0.4 kg |
