The MU-TDID12 is a 32-channel Digital Input FTA (Field Termination Assembly) designed for 24 VDC signals.
Brand :
HoneywellPart number :
MU-TDID12Description :
Digital Input 24 Vdc FTA (32 Inputs)Origin :
USACondition :
NewDimension :
12 cm x 9.8 cm x 4 cmWeight :
0.3 kgPayment :
Bank Transfer

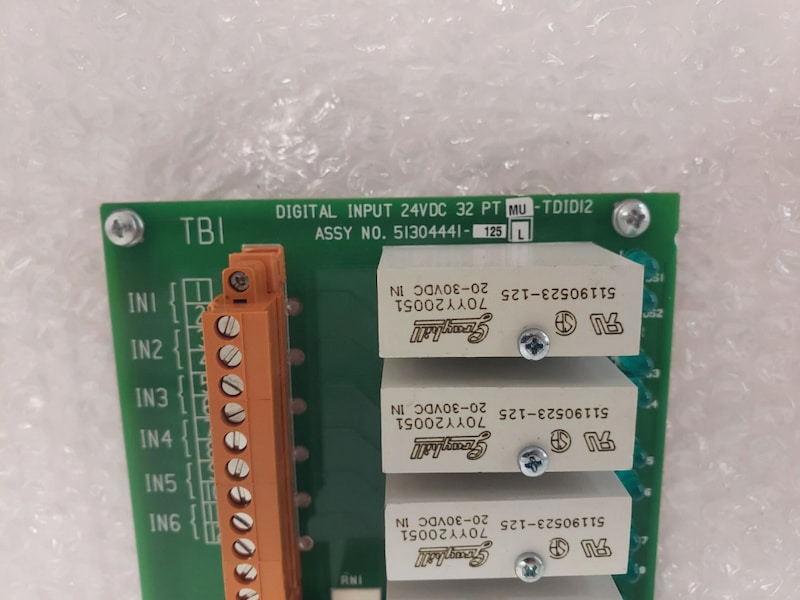

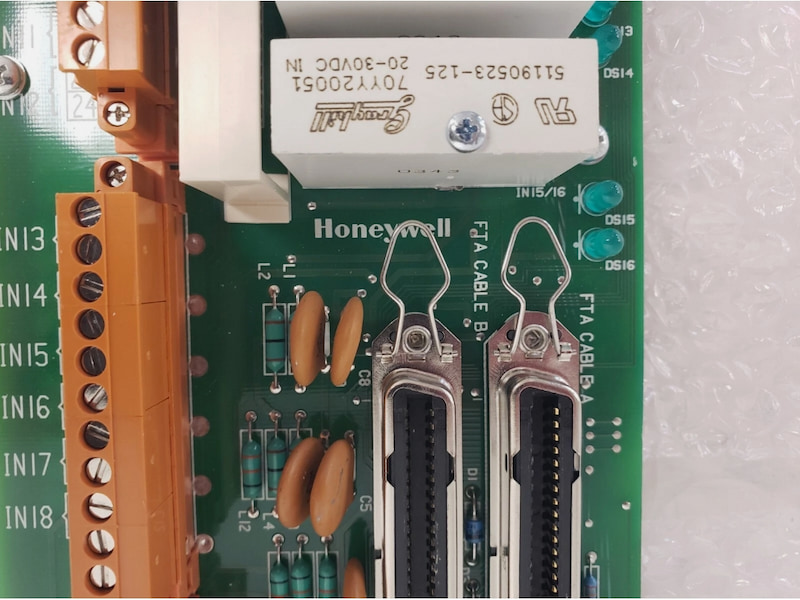

Honeywell MU-TDID12 Digital Input 24 Vdc FTA (32 Inputs)
Description
The model MU-GDID12 and MU-GDID82 24 Vdc Digital Input (DI) FTAs accommodate up to 32 switch or proximity detector inputs from a hazardous area, isolate the signal, and presents them to the FTA’s associated 24 Vdc Digital Input FTA in the safe area. The FTA is similar to the model MU-GDID12/MU-GDID82 FTA, except the phase of the Galvanic Isolation Module’s input to output signals are not selectable on the module, and the module’s signal outputs are solid-state, instead of contacts. Also, the FTA has no auxiliary output connector.
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | MU-TDID12 |
| Ordering Information | MU-TDID12 |
| Product Catalog | Honeywell UCN |
| Description | Digital Input 24 Vdc FTA (32 Inputs) |
| Voltage | ±250 Vdc |
| Current | 0 to 100 mV |
| Dimensions | 12 cm x 9.8 cm x 4 cm |
| Weight | 0.3 kg |
