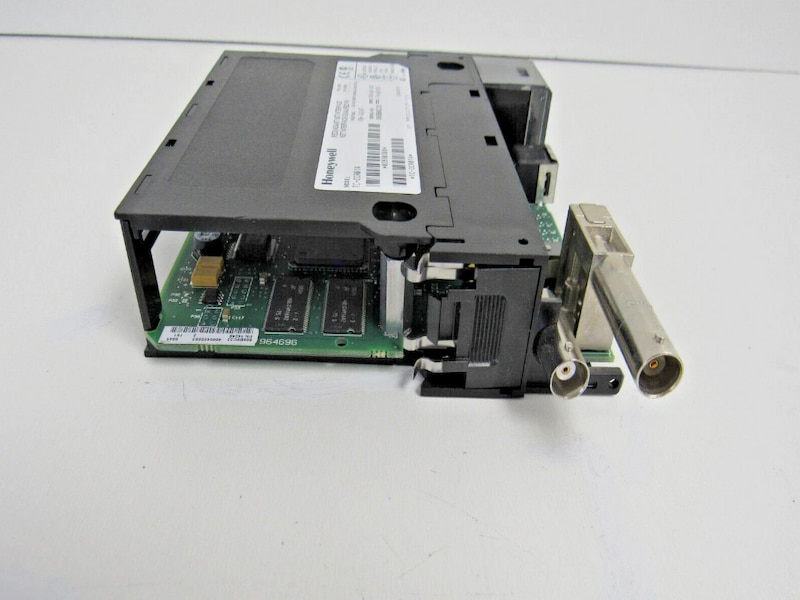

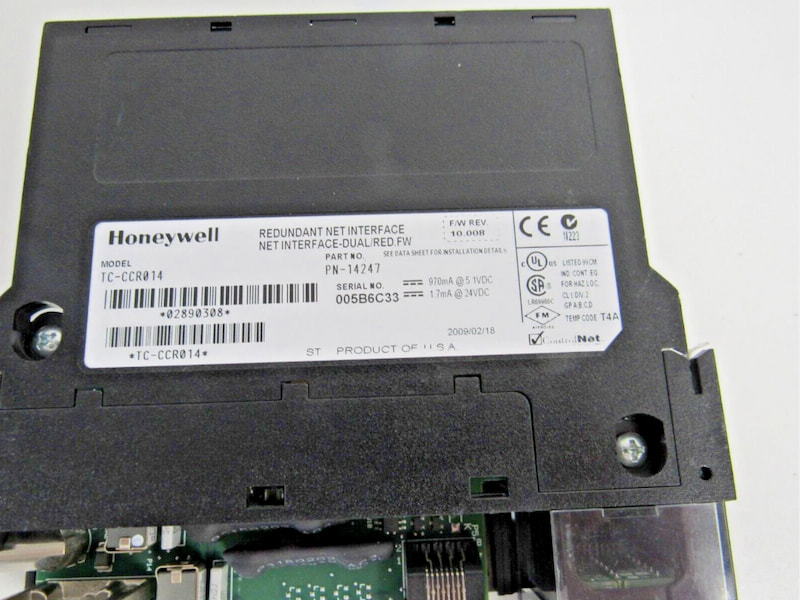

Honeywell TC-CCR014 Redundant Net Interface Module

Honeywell TC-CCR014 Redundant Net Interface Module

Description

User-defined tag-based programming for descriptive I/0 naming

Simple-to-use instructions and Easy math to eliminate complex ladder logic rungsand PAC control

Application tools for quick access to setup, programming, debugging,and PAC control

Task Manager for quick and easy prioritization of Ladder Logic code

In-site monitoring of TC-CCR014 97197975-A01 is automated by a PLc,collecting relevant informationThis data is transmitted to a GSM DTu terminal via RS232 or RS485 interface. The GSM Dru terminalprocesses and encapsulates the PLC-collected equipment information and sends it to the GSM wirelessnetwork.

The monitoring center of TC-CCR014 97197975-A01 utilizes a public network access solution server forInternet connectivity, such as ADSL dial-up/telecommunication leased line broadband. It obtains afixed IP address on the public network. For smaller systems, a provincial mobile communicationcompany provides the server with a DDN line and a fixed IP address configuration. This DDN lineoffers higher bandwidth to accommodate increased PLC numbers without capacity expansion, facilitatinghigh-capacity system applications.

The server of TC-CCR014 97197975-A01 first performs AAA authentication on data received from the GSMSMS remote control module. Then, it transmits the data to the monitoring center's host computer fordisplay and processing through svstem software,enhancing the security of system data communication.

Technical Specifications
