The TC-IDJ161 is a 16-point discrete input module for Honeywell Experion LS systems (supports 24 VDC inputs).
Brand :
HoneywellPart number :
TC-IDJ161Description :
Isolated Discrete Input ModuleOrigin :
USACondition :
NewDimension :
165 mm x 150 mm x 150 mmWeight :
0.4 kgPayment :
Bank Transfer

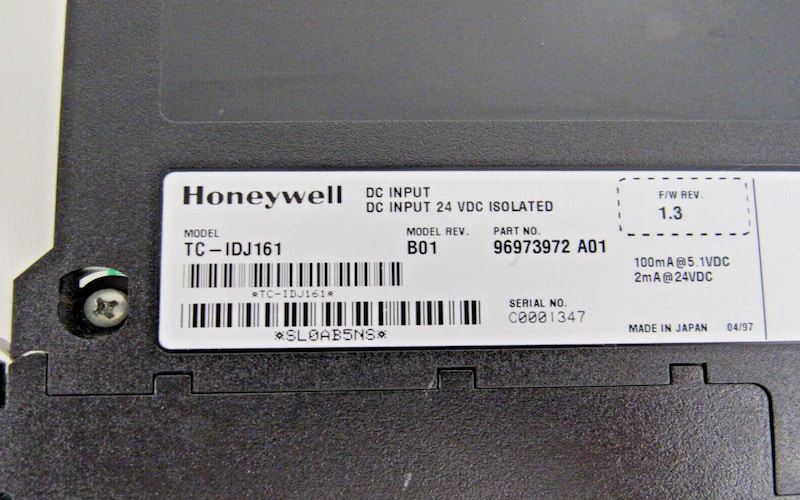

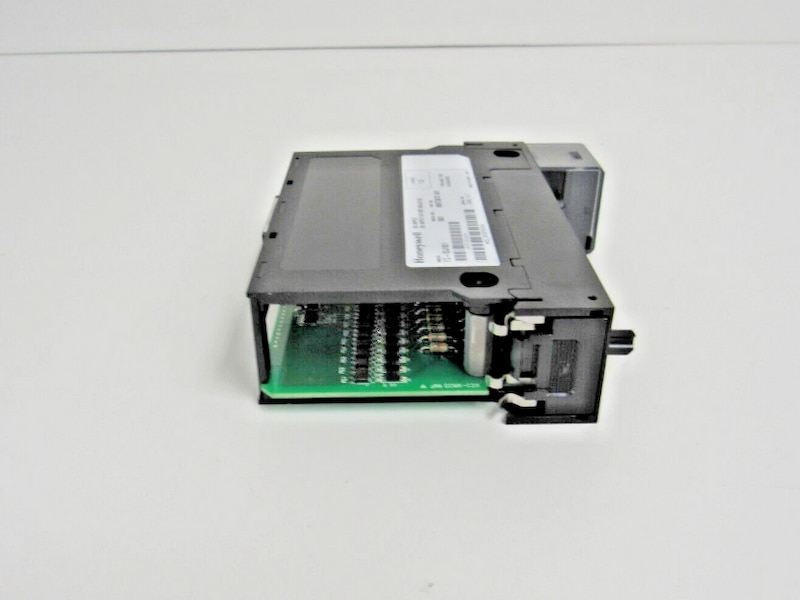

Honeywell TC-IDJ161 Isolated Discrete Input Module
Description
Number of Points：16 (individually isolated)
On-State Voltage Range：10-30 VDC
Nominal input Voltage：24 VDC
Input Compatibility：IEC Type 1+
Short/lnrush Current：250 mA peak (decaying to <37% in 22 ms, without activation)
Off-State Voltage (Maximum)：5 VDC
On-State Current (Minimum)：2.0 mA @ 10 VDC
Off-State Current (Maximum)：1.5 mA
Input lmpedance (Maximum)：31 KΩ @ 60 Hz
Input Delay Time：
Off to on：Programmable: 1 ms & 2 ms
Hardware delay：1 ms maximum plus filter time
On to off：Programmable: 1 ms, 2 ms, 9 ms & 18 ms
Hardware delay：4 ms maximum plus filter time
Power Dissipation：5.0 W max
Isolation Voltage：
Channel to channel：100% tested at 2546 VDC for 1s
User to system：100% tested at 2546 VDC for 1s
Connection Terminal Blocks：TC-TBCH, 36-position terminal block
Technical Specifications
| Manufacturer | Honeywell |
| Part Number | TC-IDJ161 |
| Ordering Information | TC-IDJ161 |
| Product Catalog | Honeywell C200 |
| Description | Isolated Discrete Input Module |
| Voltage | 24 vdc |
| Current | 15 A |
| Dimensions | 165 mm x 150 mm x 150 mm |
| Weight | 0.4 kg |
