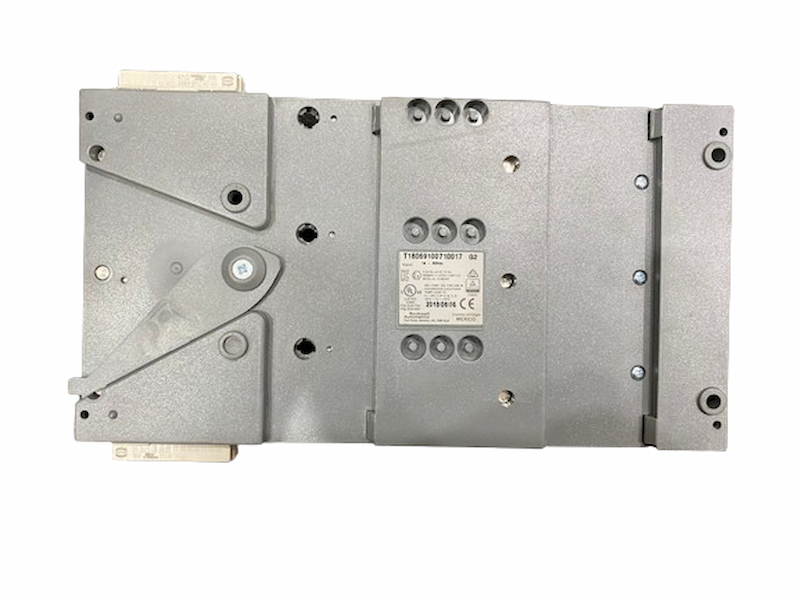

ICS Triplex T9100 Processor Base Unit

ICS Triplex T9100 Processor Module

Processor base unit supports up to three processor modules as a redundant group.

The processor base unit supplies the electrical connections between the T9110 processor modules, and for the remaining controller modules. Each base unit can be mounted onto standard DIN rails or directly onto a panel or wall.

The moldings use slots and clamps for DIN rail mountings, and holes for screw fixing to flat panels.

The processor base unit holds the IP address of each processor module separately in a BUSP component that is installed during manufacture. This allows you to remove a faulty processor module and install a new one without needing to set up the IP address of the replacement module.

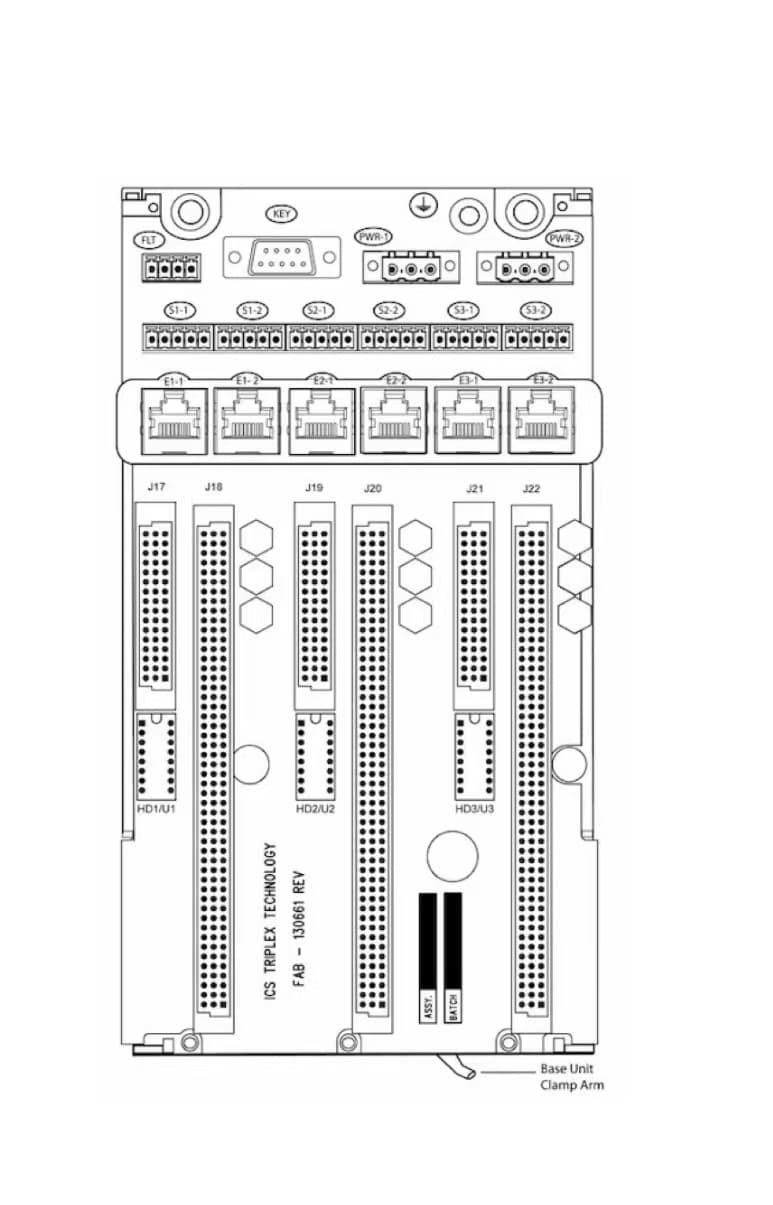

The processor base unit external connections are:

• Earthing Stud

• Ethernet Ports (E1-1 to E3-2)

• Serial Ports (S1-1 to S3-2)

• Redundant +24 Vdc powers supply (PWR-1 and PWR-2)

• Program Enable security key (KEY)

• The FLT connector (currently not used).
